750-1406 WAGO Industrial Automation Components

750-1406 on Powermatic Associates
WAGO

Part#:750-1406

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

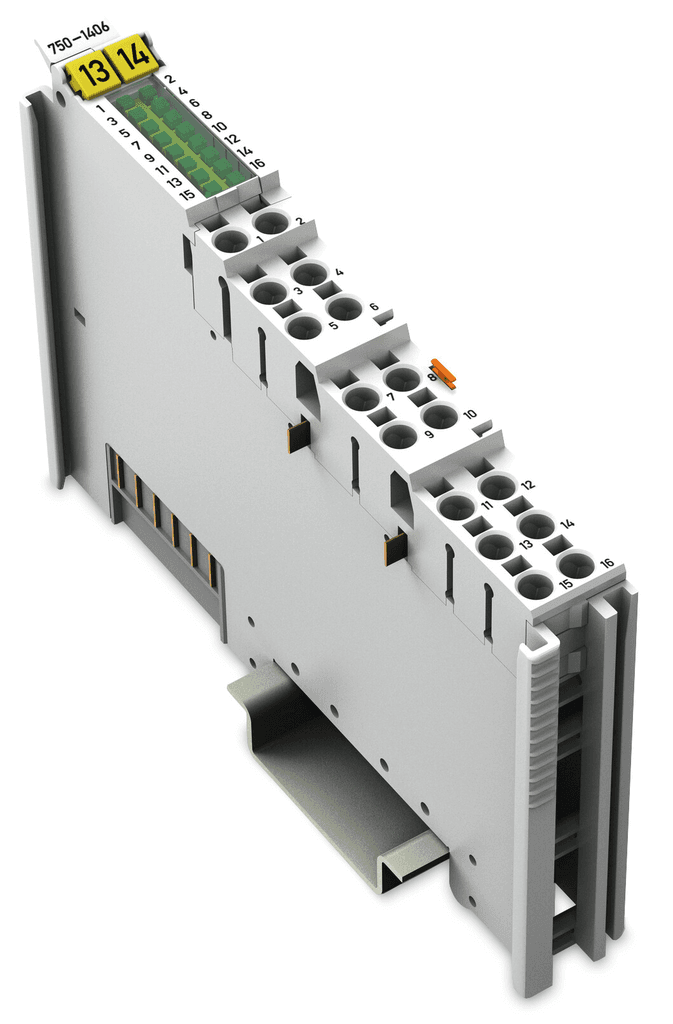

750-1406 WAGO - 16-channel digital input; 24 VDC; 0.2 ms

Product Details

  • Weight
    47.50001249 g
  • Country Of Origin
    Germany
  • HTS Code
    85389099990
  • Mounting Type
    DIN-35 Rail
  • Country of Origin
    Germany
  • Strip Length
    0.35 inches, 9 millimeters
  • Housing Material
    Polyamide 6.6, Polycarbonate
  • Weight
    47.500 grams
  • Depth
    2.717 inches, 69 millimeters
  • Conductor Size
    1.5 millimeters, 16 american wire gauge
  • Height
    100 millimeters, 3.937 inches
  • Package Type
    Box
  • Width
    0.472 inches, 12 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 750-1406 on Powermatic Associates is $226.00. Order now.

About the product

Wago 750-1406 is an I/O unit functioning as a standard DC digital input slice module. It operates with a supply voltage of 5Vdc provided by the system and an adjustable supply voltage of 18-32.5Vdc to field sensing devices. This unit features push-in spring cage-clamp connections and is designed for use in environments with an ambient air temperature range for operation from 0°C to +55°C and for storage from -40°C to +85°C. It supports a control voltage marked as "C" and utilizes an IP20 communication protocol. The rated insulation voltage (Ui) is specified as 12 mm, and it is designed for mounting on a DIN-35 rail. The unit's dimensions are H100mm x W12mm x D69mm, and it is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It features 16 x digital inputs (24Vdc transistor) with high-side switching and a 1-wire output voltage (DC). The mounting location includes a 0.2ms filter. Digital inputs voltage ranges are -3...+5Vdc (OFF) / 15-30Vdc (ON), with a trip current rating of 25mA (5Vdc, system supply). It is designed to withstand vibration resistance according to EN 60068-2-6 -- 4g and shock resistance according to EN 60068-2-27 --15g. The unit is also climatically resistant up to 95% relative humidity (RH, non-condensing).
