750-455/040-000 WAGO Industrial Automation Components
Part#:750-455/040-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

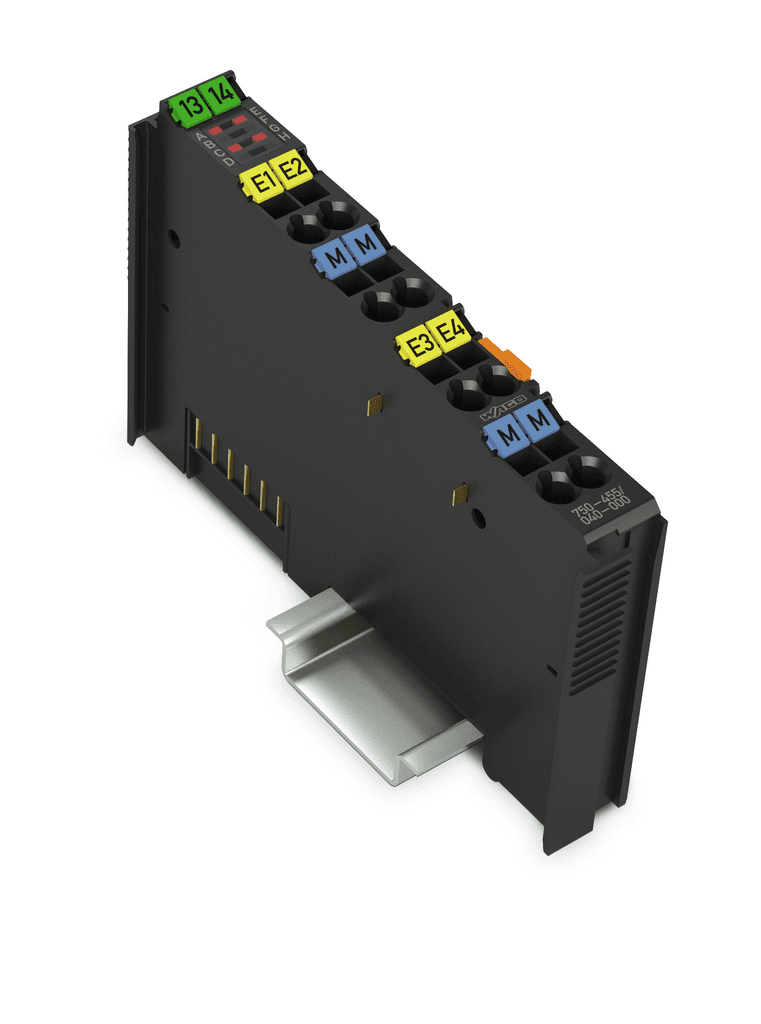

750-455/040-000 WAGO - 4-channel analog input; 4 … 20 mA; Single-ended; Extreme
Product Details
- Weight 51.30501349 g
- Country Of Origin Germany
- HTS Code 85389099990
- Package Type Box
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Country of Origin Germany
- Width 0.472 inches, 12 millimeters
- Weight 51.305 grams
- Strip Length 0.35 inches, 9 millimeters
- Depth 2.669 inches, 67.8 millimeters
- Mounting Type DIN-35 Rail
- Color Gray
- Housing Material Polyamide 6.6, Polycarbonate
- Height 100 millimeters, 3.937 inches
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 750-455/040-000 on Powermatic Associates is $611.00. Order now.
About the product
Wago 750-455/040-000 is an I/O unit designed as a standard analog input slice module. It operates with a supply voltage of 5Vdc provided by the system and an adjustable supply voltage of 18-32.5Vdc for field sensing devices. This unit features push-in spring cage-clamp connections and is built for an extended temperature range, with an operational ambient air temperature of -40°C to +70°C and a storage temperature range of -40°C to +85°C. It does not specify a supply voltage for AC. The module is designed for installation on a DIN-35 rail, with dimensions of H100mm x W12mm x D67.8mm, and is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It supports 4 x analog inputs (4-20mA, single-ended) with a 12-bits / 10ms conversion rate. The unit is characterized by a vibration resistance according to EN 60068-2-6 -- 5g, shock resistance according to EN 60068-2-27 --15g (11ms / half-sine / 1000 shocks) and --25g (6ms / 1000 shocks), and a climatic resistance of 65mA (5Vdc system supply). The control circuit's rated current has a measuring error of +-0.1% and a temperature error of +-0.01%, under conditions of 95% relative humidity (RH, non-condensing).
