750-630/000-005 WAGO Industrial Automation Components
Part#:750-630/000-005
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

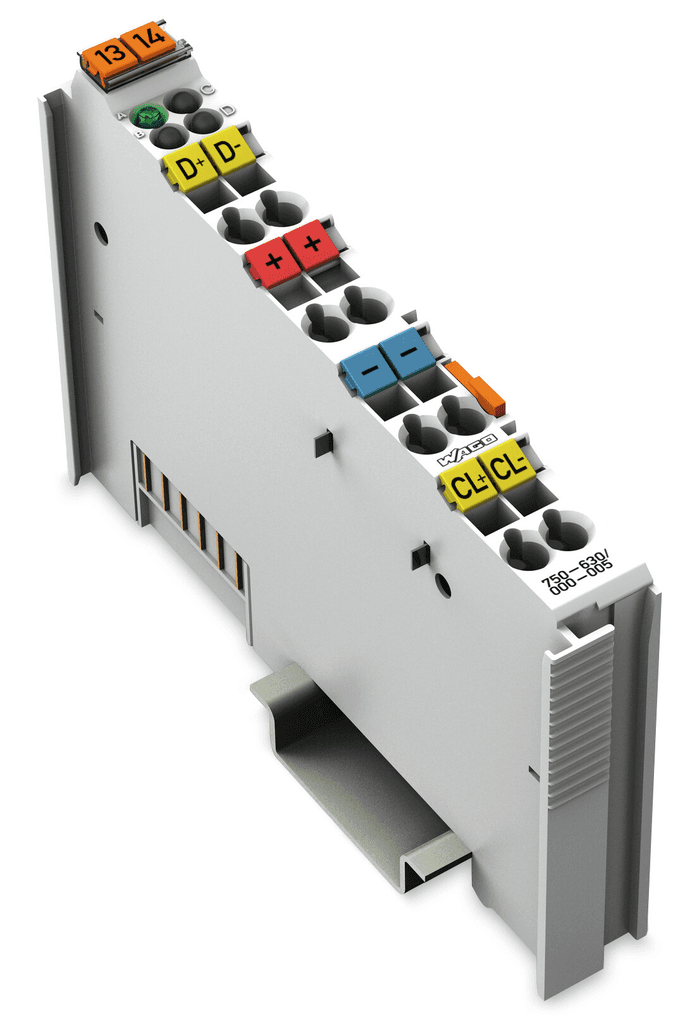

750-630/000-005 WAGO - SSI transmitter interface; 15 bits; 125 kHz; Gray code; Status byte
Product Details
- Weight 51.00001341 g
- Country Of Origin Germany
- HTS Code 85389099990
- Mounting Type DIN-35 Rail
- Height 100 millimeters, 3.937 inches
- Strip Length 0.35 inches, 9 millimeters
- Country of Origin Germany
- Housing Material Polyamide 6.6, Polycarbonate
- Depth 2.748 inches, 69.8 millimeters
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Weight 51.000 grams
- Package Type Box
- Color Gray
- Width 0.472 inches, 12 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 750-630/000-005 on Powermatic Associates is $533.00. Order now.
About the product
Wago 750-630/000-005 is an I/O unit designed with an SSI transmitter interface unit function. It operates on a supply voltage of 5Vdc provided by the system and offers an adjustable supply voltage of 20.4-28.8Vdc to field sensing devices. This unit features push-in spring cage-clamp connections for secure and straightforward wiring and supports Gray code design. It is designed to operate within an ambient air temperature range of 0°C to +55°C and can be stored in temperatures ranging from -25°C to +85°C. The unit does not use AC supply voltage and is equipped with an IP20 communication protocol. It has a rated insulation voltage (Ui) of 12 mm and is designed for mounting on a DIN-35 rail. The dimensions are H100mm x W12mm x D69.8mm, and it is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It features 1 x digital input (SSI / ON, +D / -D / OFF) and an output voltage (DC) of +CI / -CI differential (RS-422) encoding input. The mounting location supports a 15-bits counter with digital outputs capable of a maximum speed of 125kHz. It has a frame current rating with vibration resistance according to EN 60068-2-6 -- 4g and shock resistance according to EN 60068-2-27 --15g. The net width is 20mA (5Vdc, system supply), and it can operate in up to 95% relative humidity (RH, non-condensing).
