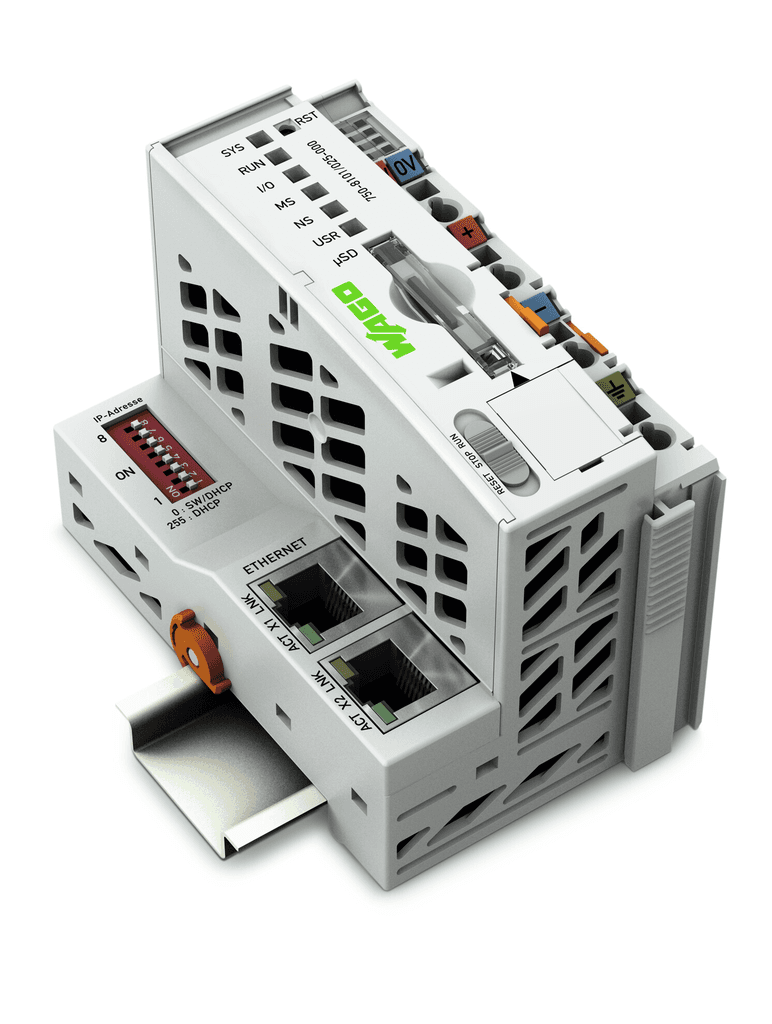

750-8101/025-000 WAGO Industrial Automation Components

Wago 750-8101/025-000 is a Programmable Logic Controller (PLC) CPU unit featuring a Cortex A8 600MHz processor and supports a variety of protocols including MQTT, DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, and SSH. It operates on a supply voltage of 18-31.2Vdc via wiring (24Vdc nom.) and offers connection through 2 x RJ45 connectors for fieldbus, cage-clamp 2-pin for the system, and cage-clamp 6-pin for the field. Designed for an extended temperature range, it can operate in ambient air temperatures from -20°C to +60°C and be stored in temperatures from -40°C to +85°C. The unit provides communication speeds of 10Mbit/s and 100Mbit/s, with an IP20 degree of protection and supports Modbus TCP and Ethernet/IP protocols. Its dimensions are H100mm x W61.5mm x D71.9mm, housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing suitable for DIN-35 rail mounting. It features a 256MB memory (RAM), 256MB internal memory (flash), 64kB non-volatile memory for software, 12MB distributed dynamically between program and data memory, and 64kB non-volatile memory for hardware. The unit is capable of connecting to 250 x connections per node and 64 x field devices, with a vibration resistance according to EN 60068-2-6 -- 4g and shock resistance according to EN 60068-2-27 --15g. It supports various programming environments and languages including Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC), and offers configuration options through e!COCKPIT, WAGO-I/O-CHECK, and Web-Based Management. The unit also includes a microSD card slot supporting up to 32GB, ensuring ample storage for applications.
