750-829 WAGO Industrial Automation Components

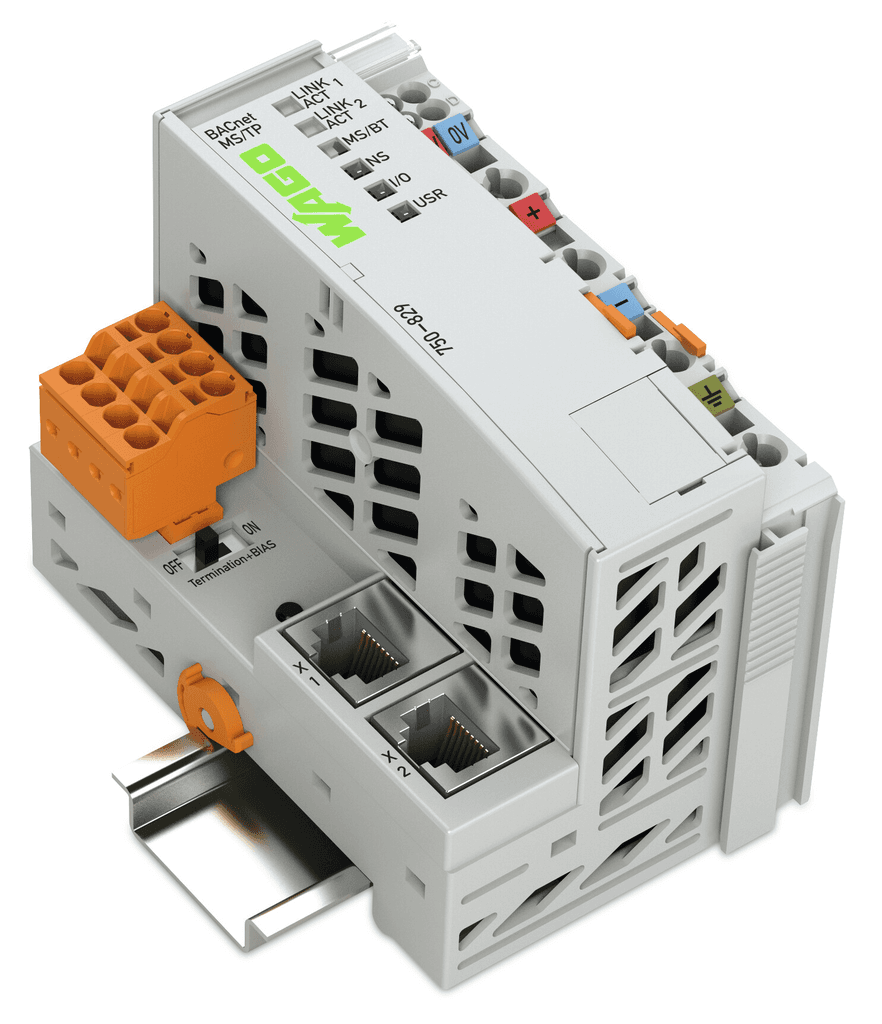

Wago 750-829 is a Programmable Logic Controller (PLC) CPU unit featuring a 32-bit processor and supports various communication protocols including HTTP, BootP, DHCP, DNS, SNTP, FTP, SNMP, and SMTP. It operates on a supply voltage of 18-31.2Vdc via wiring with a nominal 24Vdc and can connect through 2 x RJ45 connectors, a 5-pin male connector, and cage-clamp connectors for both system and field connections. This unit does not require an AC supply voltage and is designed to operate within an ambient air temperature range of 0°C to +55°C, with storage temperatures ranging from -25°C to +85°C. It supports communication speeds ranging from 9.6kbit/s to 115.2kbit/s and employs Modbus TCP, Ethernet, and BACnet/IP communication protocols. The unit is IP20 rated, has a net width of 61.5 mm, and is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing designed for DIN-35 rail mounting. Dimensions are H100mm x W61.5mm x D71.9mm. It features a 32kB non-volatile memory for software, 1024kB for program memory, 1024kB for data memory, and 512bytes for fieldbus input and output memory. The unit is shock resistant according to EN 60068-2-27 at 15g and has a control circuit rated current of 500mA at 24Vdc nominal load and 450mA at 5Vdc system supply. Programming and configuration can be done using WAGO-I/O-PRO V2.3, WAGO-I/O-CHECK, and BACnet Configurator, supporting various programming languages including Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), and Sequential Function Chart (SFC).
