753-461/003-000 WAGO Industrial Automation Components
Part#:753-461/003-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
753-461/003-000 WAGO - 2-channel analog input; For Pt100/RTD resistance sensors; Adjustable
Product Details
- Weight 41.823011 g
- Country Of Origin Germany
- HTS Code 85389099990
- Country of Origin Germany
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Width 0.472 inches, 12 millimeters
- Weight 41.823 grams
- Package Type Box
- Depth 2.748 inches, 69.8 millimeters
- Height 100 millimeters, 3.937 inches
- Housing Material Polyamide 6.6, Polycarbonate
- Mounting Type DIN-35 Rail
- Strip Length 0.39 inches, 10 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 753-461/003-000 on Powermatic Associates is $484.00. Order now.
About the product

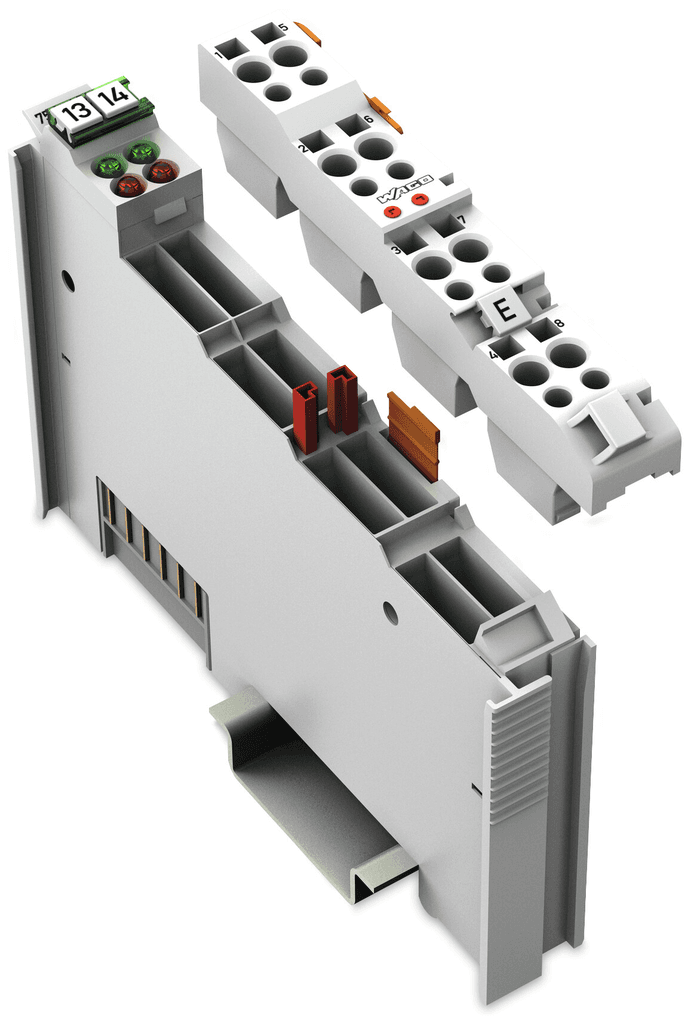

Wago 753-461/003-000 is an I/O unit designed as a pluggable analog input slice module. It operates with a supply voltage of 5Vdc provided by the system and does not require an AC supply voltage. This unit features push-in spring cage-clamp connections for easy installation and is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing, ensuring durability. It is designed to operate within an ambient air temperature range of -40°C to +55°C and can be stored in temperatures ranging from -40°C to +85°C. The 753-461/003-000 supports 2 x analog inputs (RTD Pt100 / Ni100) and is configurable for 2-wire / 3-wire connections, with a response time of 320ms and a resolution that provides a measuring error of ±0.2% and a temperature error of ±0.01%. It has a maximum continuous operating voltage (Uc) of 0.1°C and a control voltage (DC) specification listed as "C". The unit's degree of protection is rated at IP20, and it is designed for mounting on a DIN-35 rail with dimensions of H100mm x W12mm x D69.8mm. It can handle a connection capacity of 80mA (5Vdc system supply) and is capable of withstanding vibration resistance according to EN 60068-2-6 (4g) and shock resistance according to EN 60068-2-27 (15g). The operating humidity range is up to 95% relative humidity (RH), non-condensing.
