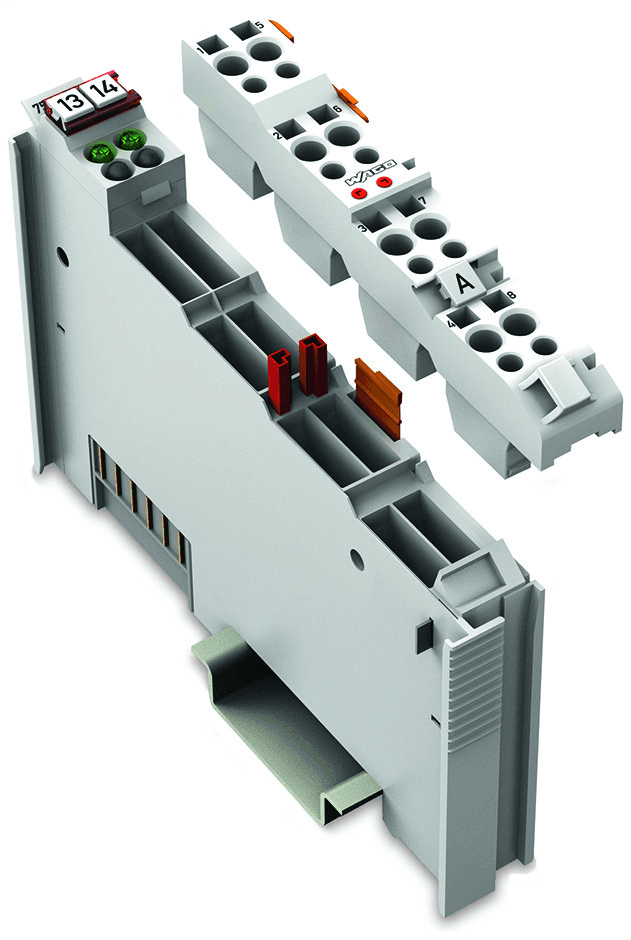

753-513/000-001 WAGO Industrial Automation Components
Part#:753-513/000-001
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
753-513/000-001 WAGO - 2-channel digital output; AC 250 V; 2.0 A; Potential-free; 2 make contact
Product Details
- Weight 42.74601124 g
- Country Of Origin Germany
- HTS Code 85371098990
- Package Type Box
- Strip Length 0.39 inches, 10 millimeters
- Country of Origin Germany
- Contact Material Silver Alloy
- Mounting Type DIN-35 Rail
- Depth 2.748 inches, 69.8 millimeters
- Height 100 millimeters, 3.937 inches
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Width 0.472 inches, 12 millimeters
- Housing Material Polyamide 6.6, Polycarbonate
- Weight 42.746 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 753-513/000-001 on Powermatic Associates is $110.00. Order now.
About the product
Wago 753-513/000-001 is an I/O unit designed as a pluggable AC digital relay output slice module. It operates with a supply voltage of 5Vdc provided by the system and features push-in spring cage-clamp connections for easy installation. This unit does not require an AC supply voltage, functioning within an ambient air temperature range for operation from -40°C to +55°C and for storage from -40°C to +85°C. It supports a control voltage of DC and utilizes an IP20 communication protocol. The rated insulation voltage stands at 12 mm, and it is designed for mounting on a DIN-35 rail. The module measures H100mm x W12mm x D69.8mm and is housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing. It offers a 0.5Hz switching frequency and includes 2 x digital outputs (NO relay contacts, potential-free) capable of handling 250Vac / 30Vdc at 2A. The unit also features a 1-wire analog input and is designed to withstand a shock resistance according to EN 60068-2-27 at 15g. It operates with a minimal power dissipation/loss and can resist up to 95% relative humidity (non-condensing).
