756-1250/1023-030 WAGO Industrial Automation Components

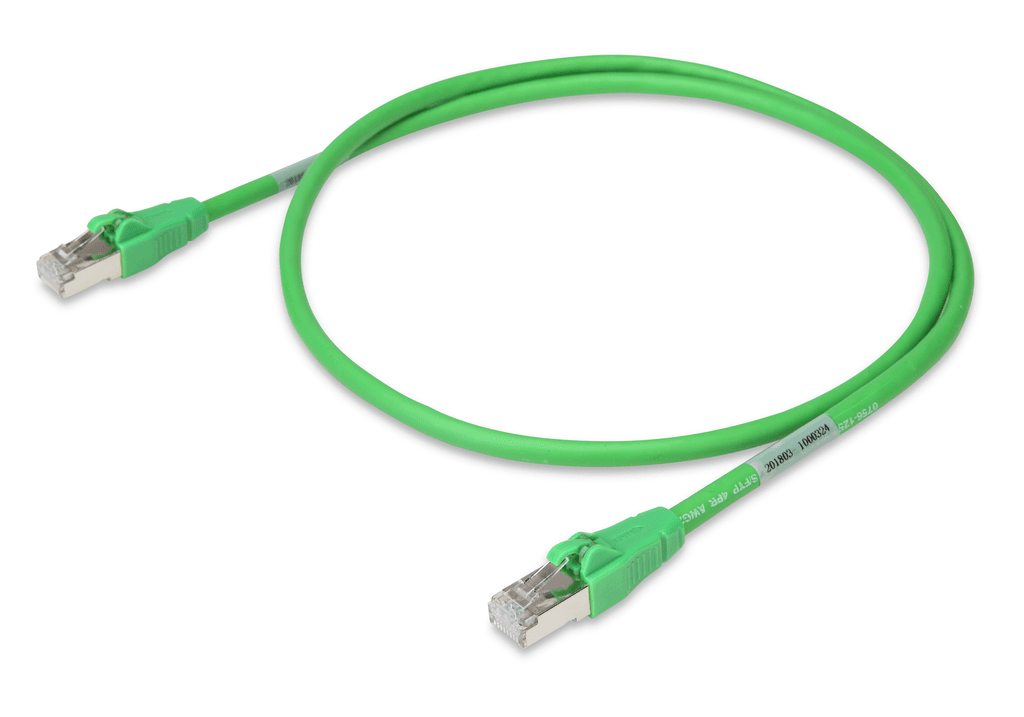

WAGO 756-1250/1023-030 is an automation part featuring a baud rate of 10000Mbit/s and an operating voltage of 80V. It has a rated surge voltage of 500V for both wire/wire and wire/shield configurations, tested at rms 50 Hz for 1 minute. The insulation resistance is specified at ≥ 1x10^8Ω, and the conductor resistance is less than 142Ω per kilometer. This part includes a cable length of 3 meters and utilizes an RJ-45 plug connection type for both ends. The conductor is made of bare copper wire (7 x 0.16mm) with halogen-free PE insulation. It supports up to 1 million mating cycles and has a sheathed cable diameter of 6 to 6.4mm. The cable's color is green, and the contact material is CuZn with a CuNi/Au plating. The sheath material is LSOH-TPE, which is halogen-free according to IEC 60754-2, flame-retardant per IEC 60332-1, and produces low smoke per IEC 61034. The shield consists of overlapped aluminium-laminated foil and tinned copper braid (PiMF). It operates within an ambient temperature range of -40 to +80°C, both dynamically and statically, with a minimum bending radius of 10mm. The product's weight is 120.7g. It is RoHS compliant, packaged in a bag, and has a GTIN of 4055143763035. The customs tariff numbers are 85444290900 and 85444210000.
