756-9401/060-000 WAGO Industrial Automation Components
Part#:756-9401/060-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

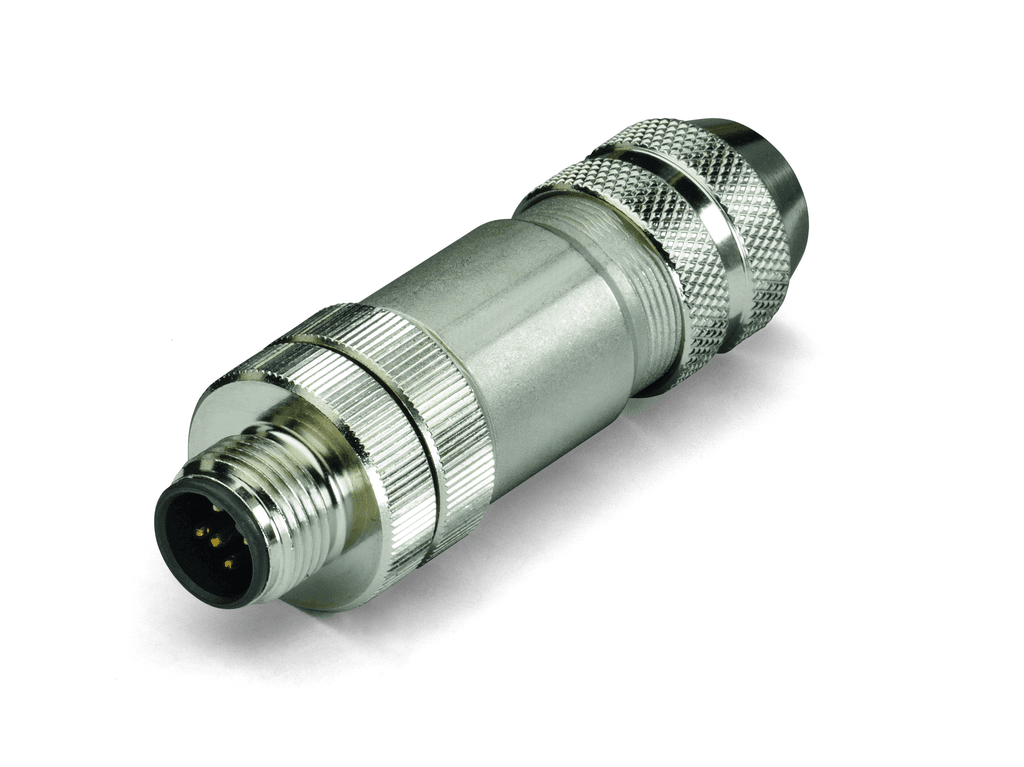

756-9401/060-000 WAGO - Accessories; M12 plug, axial; 5-pole
Product Details
- Weight 44.00001157 g
- Country Of Origin Germany
- HTS Code 85369010000
- Weight 44.000 grams
- Contact Material CuZn
- Connection Type M12 Plug
- Country of Origin Germany
- Housing Material Nickel Plated, Zinc Die Casting
- Package Type Box
- Contact Type Gold
- Conductor Size 0.5 millimeters, 20 american wire gauge
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 756-9401/060-000 on Powermatic Associates is $39.54. Order now.
About the product
WAGO 756-9401/060-000 is a connector with an M12 plug connection type and a 5-pole number. It features a shielded connection point and a cable connection direction to mating direction of 0°. The connector interface coding is B-coded, and it has a contact resistance of ≤ 3mΩ. It operates with a spring clamp technology for connection type 1, accommodating solid conductors ranging from 0.14 to 0.5mm2 / 20 AWG. The connectable sheathed cable diameter is between 6 to 8mm, and the housing material is made of die-cast Zinc. The primary current contact material is CuZn with a gold plating and a neoprene sealing ring, while the sensing distance O-ring is made of Viton. It supports up to 100 mating cycles and weighs 44g. The operational ambient temperature range is from -40 to +85°C, and it has a protection type of IP67 in the locked state with a pollution degree of 3. Packaged individually in a box, this product has a GTIN of 4045454639891 and a customs tariff number of 85366990990. It is compliant with RoHS, including an exemption under 6(c), and has multiple SCIP notification numbers for various EU countries. The product is manufactured in Germany.
