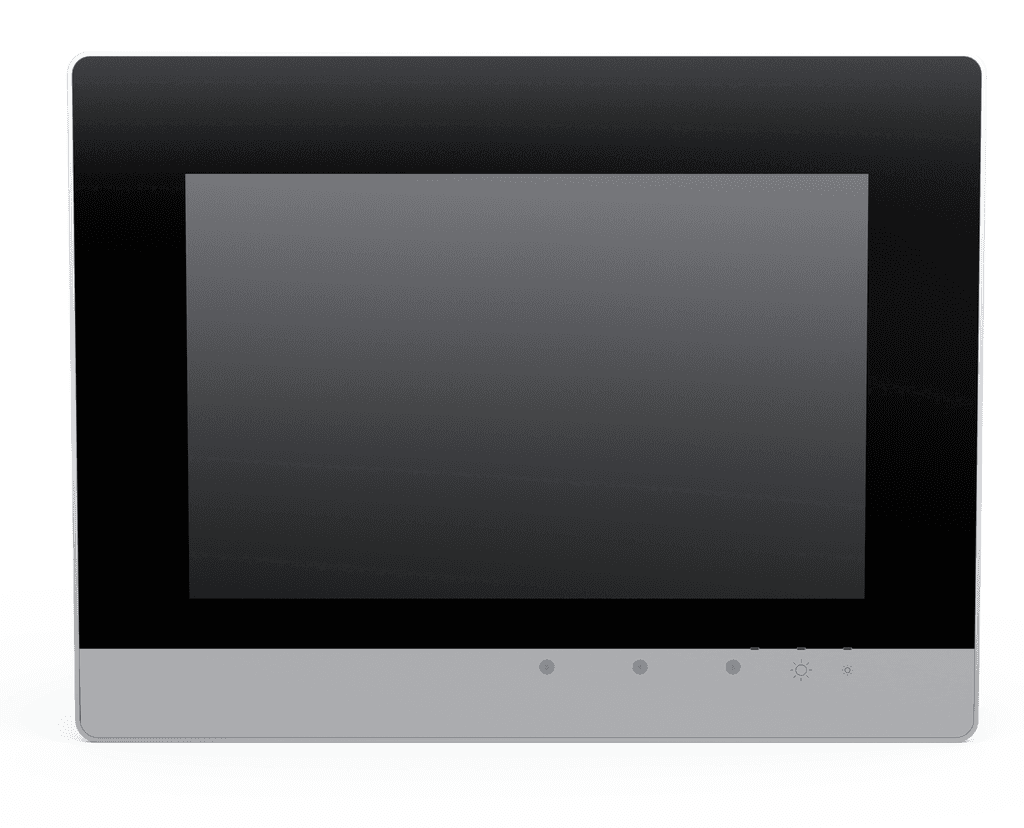

762-4104 WAGO Industrial Automation Components

Wago 762-4104 is an HMI / Display unit designed for various automation applications. It features an HMI touchscreen panel and supports multiple protocols including DHCP, DNS, FTP, FTPS, HTTP, HTTPS, and SSH for versatile connectivity options. The unit operates on a supply voltage of 18-30Vdc, with 24Vdc nominal, and does not require an AC supply voltage. It offers connectivity through 2 x RJ45 connectors for fieldbus applications and 2 x USB type-A host ports. The design follows the PIO1 hardware configuration for web panels. The ambient air temperature for operation ranges from -20°C to +50°C, while for storage, it can handle -20°C to +80°C. The device boasts an IP65 degree of protection, indicating a high level of protection against dust and water. It communicates over Ethernet and includes a flush or VESA mounting option. The dimensions are H223mm x W293mm x D58mm. It is equipped with 2GB of RAM and 4GB of internal flash memory. The 762-4104 supports up to 600 Standard line series circuits and can operate in environments with up to 90% relative humidity, non-condensing. The system runs on a Real-time Linux operating system, enhanced with an RT-Preempt patch, and is powered by a Cortex A9 processor. Additionally, it features a microSD and SDHC card slot supporting up to 32GB for expanded storage options.
