769-102/021-000 WAGO Industrial Automation Components
Part#:769-102/021-000
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

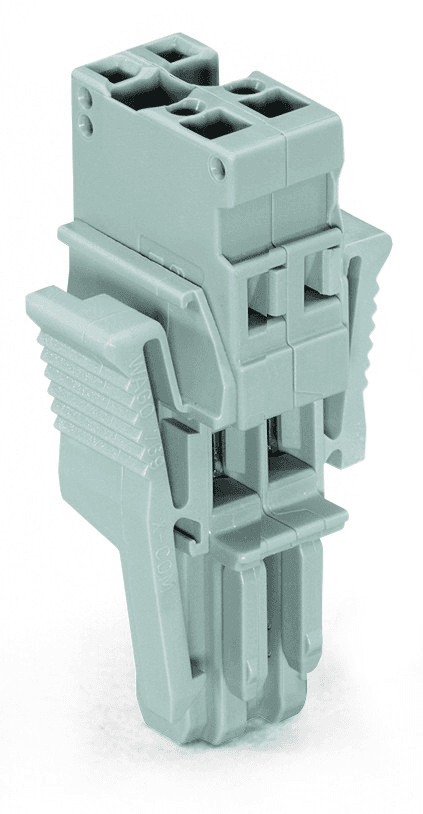

769-102/021-000 WAGO - 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 2-pole; coding finger; Lateral locking levers; 4,00 mm²; gray
Product Details
- Weight 9.042002378 g
- Country Of Origin Germany
- HTS Code 85366990990
- Connection Type For Conductor
- Voltage 500 volts
- Country of Origin Germany
- Weight 9.042 grams
- Insulation Material Polyamide
- Conductor Size 12 american wire gauge, 4 millimeters
- Strip Length 0.35 inches, 9 millimeters
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Height 1.78 inches, 45.2 millimeters
- Depth 0.72 inches, 18.3 millimeters
- Conductor Material Copper
- Flammability Class V0
- Color Gray
- Package Type Box
- Current 32 amperes
- Width 1.008 inches, 25 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 769-102/021-000 on Powermatic Associates is $4.80. Order now.
About the product
Wago 769-102/021-000 is a 1-conductor female plug designed for plug-in connections with a locking lever feature. It utilizes CAGE-CLAMP spring connections for secure and reliable connectivity. This plug is rated for a current of 32A and is compatible with a pin spacing of 5mm. The net height of the plug is specified at 25.6 mm, and it is designed to accommodate 2 poles (2P). It is suitable for conductors ranging from 0.08mm2 to 4mm2 or #28AWG to #12AWG, with a nominal cross-section of 4mm2. The plug is made from Polyamide (PA) 66 and is halogen-free, ensuring compliance with safety standards. It has a rated impulse voltage (Uimp) of 6 kV and is designed to operate at a control voltage (AC) within the X-COM series. The diameter is specified for (IEC) 500 V applications, indicating its capability to handle network frequencies effectively.
