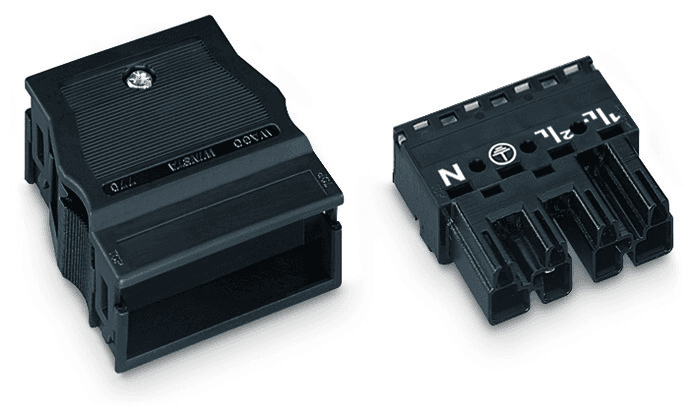

770-114 WAGO Electrical Connector Accessories

WAGO 770-114 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring a nominal voltage of 400V (III/3), a rated impulse voltage of 6kV (III/3), and a rated current of 25A. It is designed for overvoltage category III and pollution degree 3 environments. For the US market, it has a UL 1977 rating with a nominal voltage of 600V and a rated current of 23A, suitable for current interruption in select applications below 16A. The part has approximately 1mΩ of contact resistance and 0.25mΩ contact transition plug/socket. It offers 8 connection points, 4 total number of potentials, and a preceding PE contact. The connection technology is Push-in CAGE CLAMP with an operating tool or push-in actuation type, supporting a nominal cross-section of 4mm2 / 12 AWG. It accommodates various conductor types and sizes, with a strip length of 9mm / 0.35" for the conductor and 55mm for the outer insulation. The part has a pin spacing of 10mm / 0.394", dimensions of 44.6mm width, 17mm height, and 76mm depth. It is suitable for general mains applications, features variable coding, and is marked with 1/L' 2/L PE N for potential marking. The mating force of a plug-in connection ranges from approximately 20 to 70N, with a retention force of >80N and an unmating force of approximately 20 to 70N, depending on the pole number. It supports up to 200 mating cycles without a resistive load and offers IP20 protection, increasing to IP2xC when mated and secured with a strain relief housing. The male connector/plug type is designed for conductor connection, with mismating protection and the possibility of retrofitting a locking lever. The material is black with a gray cover, made from Polyamide (PA66) and features a V0 flammability class per UL94. The contact material is a surface-treated copper or copper alloy with tin plating. It weighs 24.9g and operates within a temperature range of -5 to +40°C for processing and -35 to +85°C for continuous operation. The product belongs to Winsta's product group 20, with a packaging unit of 25 pieces per box, manufactured in Germany (DE), and has a GTIN of 4044918254410. It complies with RoHS without exemptions.
