770-205 WAGO Industrial Automation Components

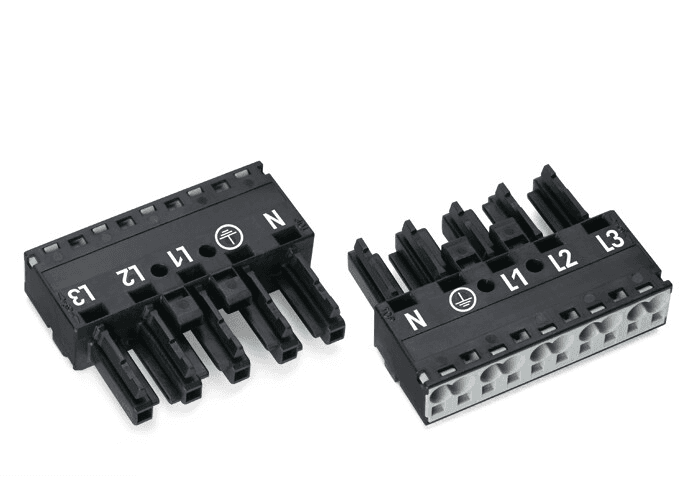

WAGO 770-205 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring a nominal voltage of 400V (III/3), rated impulse voltage of 6kV (III/3), and a rated current of 25A. It adheres to overvoltage category III and pollution degree 3. For the US market, it has a UL 1977 rating with a rated voltage of 600V and a rated current of 23A, suitable for current interruption in select applications below 16A. The part has approximately 1mΩ of contact resistance and 0.25mΩ contact transition plug/socket. It offers 10 connection points, 5 total number of potentials, and utilizes Push-in CAGE CLAMP technology for connection, supporting various conductor sizes and types with a strip length of 9mm / 0.35". The part has a 5 pole number, 0° conductor entry direction, and a pin spacing of 10mm / 0.394", with dimensions of 50mm width, 12.9mm height, and 37.5mm depth. It is designed for general mains applications, features variable coding, and is marked with N PE L1 L2 L3 for potential marking. The mating force of a plug-in connection ranges from approximately 20 to 70N, with a retention force locked > 80N, and an unmating force unlocked approx. 20 to 70N, supporting up to 200 mating cycles without resistive load. It has an IP20 protection type, which increases to IP2xC when mated and secured with a strain relief housing. The part includes a female connector/socket with mismating protection, a locking lever for secure connection, and is made from Polyamide (PA66) with a flammability class of UL94 V0. It has a chrome-nickel spring steel (CrNi) clamping spring, copper or copper alloy contact material with tin plating, and weighs 15.7g. The operating temperature ranges from -5 to +40°C, with a continuous operating temperature of -35 to +85°C. It is RoHS compliant, packaged in boxes of 50 pieces, and has a GTIN of 4044918252324.
