770-223 WAGO Industrial Automation Components

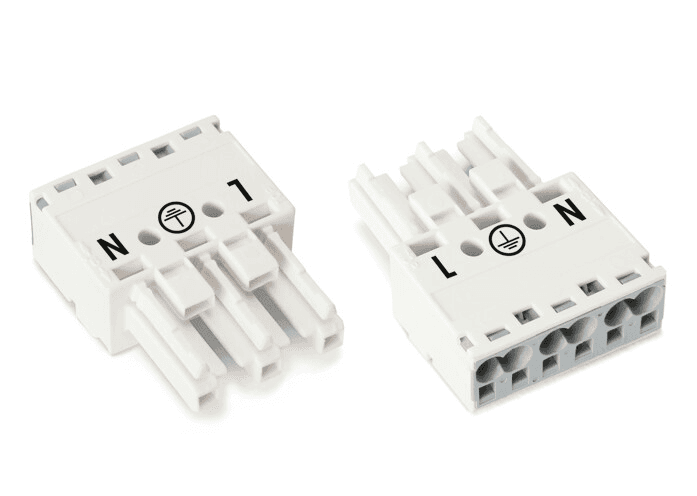

WAGO 770-223 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring a nominal voltage of 250V (III/3), a rated impulse voltage of 4kV (III/3), and a rated current of 25A. It is designed for overvoltage category III and pollution degree 3 environments. For the US market, certain versions can be used for current interruption in applications with currents below 16A and voltages up to 600V, as per UL 1977, which rates this part for a voltage of 600V and a current of 23A. The part has approximately 1mΩ of contact resistance and about 0.25mΩ contact transition plug/socket. It offers 6 connection points, 3 total number of potentials, and utilizes Push-in CAGE CLAMP technology for connection 1, supporting various conductor types and sizes, with a strip length of 9mm/0.35" and a pole number of 3. The physical dimensions include a pin spacing of 10mm/0.394", a width of 30mm/1.181", a height of 12.9mm/0.508", and a depth of 37.5mm/1.476". It is suitable for general mains applications, features variable coding, and is marked L PE N. The connector has an IP20 protection type, which increases to IP2xC when mated and secured with a strain relief housing. It includes a female connector/socket with mismating protection and a locking lever for secure connection. The part is made from Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are made from copper or copper alloy with a tin surface treatment. It operates within a temperature range of -5 to +40°C for processing and -35 to +85°C for continuous operation. Packaged in boxes of 100 pieces, it is RoHS compliant without exemption, has a GTIN of 4044918252362, and is manufactured in Germany.
