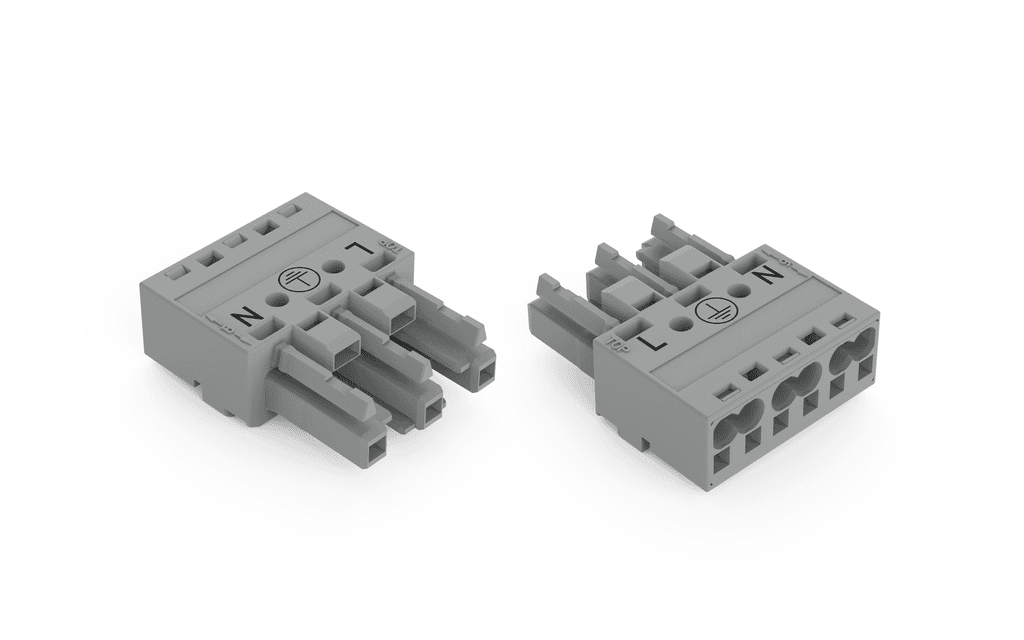

770-243/060-000 WAGO Industrial Automation Components

WAGO 770-243/060-000 is an automation part with a short circuit breaking rating and electrical data compliant with IEC/EN 60664-1, including a nominal voltage of 250V, rated impulse voltage of 4kV, and a rated current of 25A. It is designed for overvoltage category III and pollution degree 3 environments. For the US market, it meets UL 1977 standards with a rated voltage of 600V and a rated current of 23A. The part features approximately 1mΩ of contact resistance and 0.25mΩ contact transition plug/socket. It has 6 connection points, 3 total number of potentials, and utilizes Push-in CAGE CLAMP technology for connection, supporting various conductor sizes and types. The part has a pin spacing of 10mm, dimensions of 30mm in width, 12.9mm in height, and 37.5mm in depth, and is designed for control technology applications with a B coding system. It offers IP20 protection, which increases to IP2xC when mated and secured with a strain relief housing. The female connector/socket has mismating protection and can be secured with a locking lever. The part is made from Polyamide (PA66) in gray color, with a chrome-nickel spring steel clamping spring, and copper or copper alloy contacts plated with tin. It has a fire load of 0.301MJ and weighs 9.6g. Suitable for operating temperatures ranging from -35 to +85°C, it is RoHS compliant without exemptions. The product is packaged in boxes of 100 pieces, has a GTIN of 4050821456407, and is manufactured in Germany with a customs tariff number of 85366990990.
