855-8002 WAGO Industrial Automation Components

855-8002 on Powermatic Associates
WAGO

Part#:855-8002

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

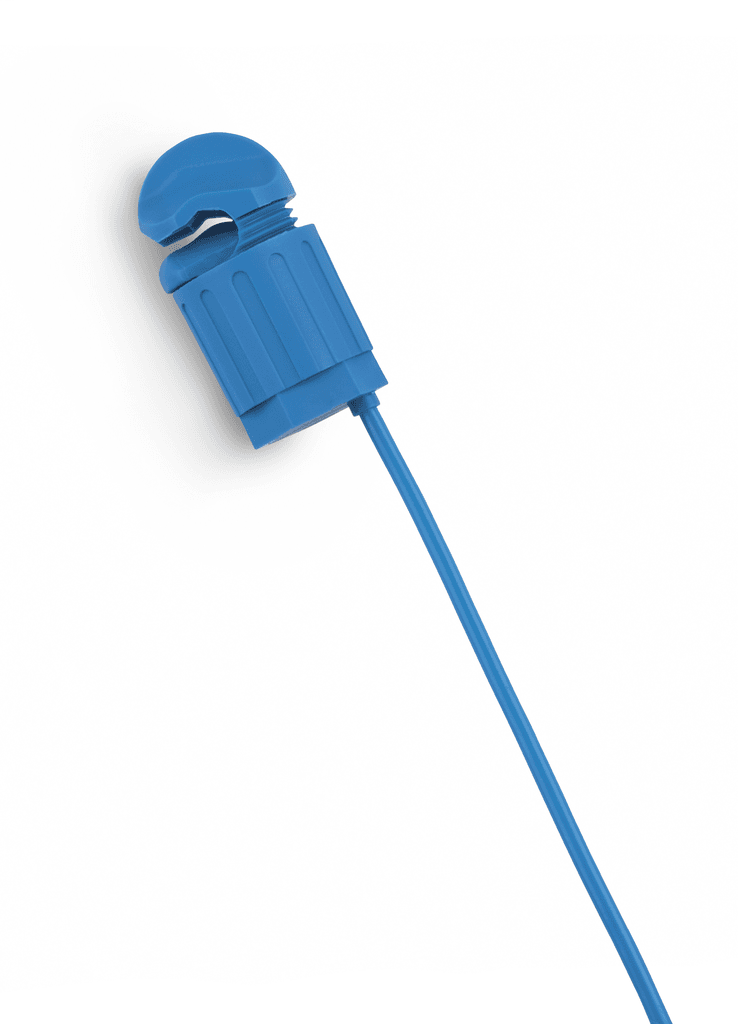

855-8002 WAGO - Voltage tap; without fuse; 12-10 AWG; N-conductor

Product Details

  • Weight
    20.00000526 g
  • Country Of Origin
    Netherlands
  • HTS Code
    85366990990
  • Height
    1.969 inches, 50 millimeters
  • Mounting Type
    Insulation Displacement Connection, Mounting On Insulated Round Cable
  • Country of Origin
    Netherlands
  • Conductor Size
    10 american wire gauge, 6 millimeters
  • Width
    0.906 inches, 23 millimeters
  • At Rated Voltage
    400 volts
  • Package Type
    Box
  • Housing Material
    Polyamide
  • Cable Length
    3 meters
  • Depth
    0.906 inches, 23 millimeters
  • Weight
    20.000 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 855-8002 on Powermatic Associates is $76.16. Order now.

About the product

Wago 855-8002 is a connector (tap) designed for power tap applications with an IDC connection type. It supports a rated current of 2A and has a length of 3m. This N-conductor design operates within an ambient air temperature range for operation of -5°C to +55°C and for storage from -20°C to +70°C. It is rated for a supply voltage of 400Vac with a rated impulse voltage (Uimp) and features IP20 protection. The connector accommodates 2.5mm2 to 6mm2 fine stranded or solid conductors, made from Polyamide (PA) 66. It is suitable for environments with 5-85% relative humidity without condensation. The dimensions are H50mm x W23mm x D23mm.
