859-796 WAGO Industrial Automation Components

859-796 on Powermatic Associates
WAGO

Part#:859-796

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

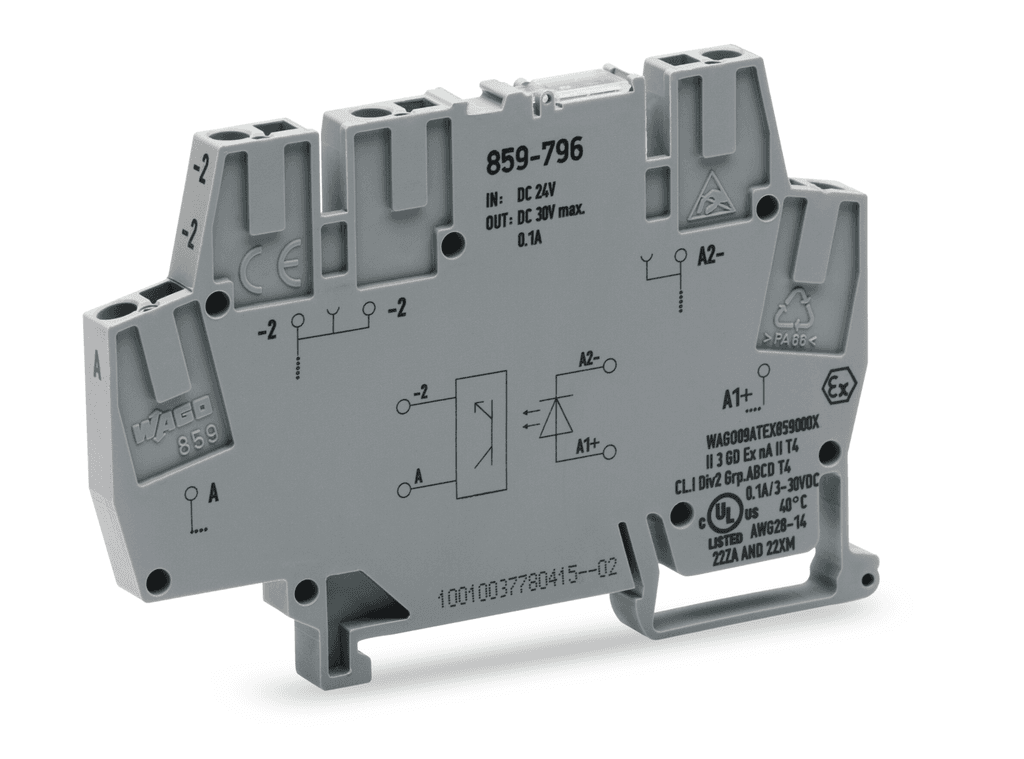

859-796 WAGO - Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 3 … 30 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Frequency: 10 kHz; Module width: 6 mm; gray

Product Details

  • Weight
    18.12900477 g
  • Country Of Origin
    Germany
  • HTS Code
    85365005000
  • Conductor Size
    14 american wire gauge, 2.5 millimeters
  • Strip Length
    0.24 inches, 6 millimeters
  • Mounting Type
    DIN-35 Rail
  • Country of Origin
    China
  • Height
    3.583 inches, 91 millimeters
  • Package Type
    Box
  • Color
    Gray
  • Weight
    17.968 grams
  • At Rated Voltage
    300 volts
  • Width
    0.236 inches, 6 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 859-796 on Powermatic Associates is $39.31. Order now.

About the product

Wago 859-796 is a fixed-type solid-state/static relay (SSR) designed for railway applications. It features CAGE-CLAMP spring connections for secure and reliable connectivity. This SSR operates with a rated current of 0.1A (continuous) and a rated voltage range of 3Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is equipped with a red LED for status indication and supports a 2-wire connection. The part is designed to operate within an ambient air temperature range of -40°C to +70°C and has the same range for storage temperature. It offers a high-speed response time with switching ON at 10μs (0.00001 s) and switching OFF at 50μs (0.00005 s), and it can handle a network frequency of up to 10kHz. The SSR is designed for mounting on a DIN-35 rail, with dimensions of H91mm x W6mm x D56mm, and it is capable of operating in environments with 5-95% relative humidity, provided there is no condensation.
