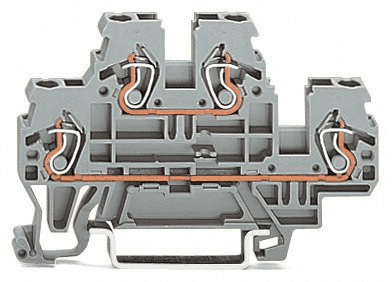

870-502 WAGO Industrial Automation Components

Wago 870-502 is a terminal designed for feed-through and neutral-through terminal block applications. It features CAGE-CLAMP spring connections for secure and maintenance-free wire connection. This terminal is rated for a current of 24A according to IEC standards and 20A according to UL standards. It is a double-deck design, allowing for efficient use of space. The terminal is compatible with DIN-35 rail mounting, ensuring easy installation on standard rails. It is designed to accommodate wire sizes ranging from 0.08mm2 to 4mm2 for fine stranded conductors, 0.08mm2 to 2.5mm2 for solid conductors, and #28AWG to #12AWG for both fine stranded and solid conductors. The terminal block is made from Polyamide (PA) 66, ensuring durability and resistance to environmental factors. It includes 2 x 2-wires connections, supporting complex wiring configurations. The terminal operates effectively with a control voltage of 500V according to IEC standards and 300V according to UL standards, and is part of the X-COM series. Its dimensions are H70mm x W5mm x D40mm, making it compact and suitable for various applications.
