870-567 WAGO Industrial Automation Components
Part#:870-567
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

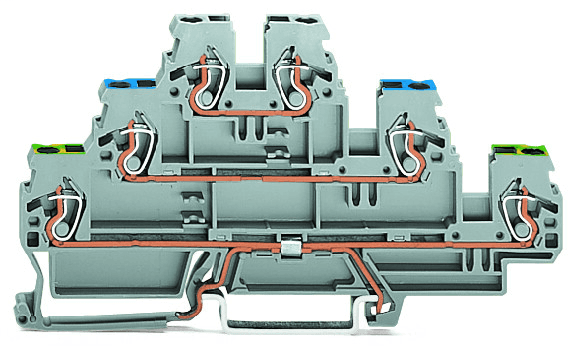

870-567 WAGO - Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/N/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 18.995005 g
- Country Of Origin Germany
- HTS Code 85369010000
- Mounting Type DIN-35 Rail
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Conductor Material Copper
- Strip Length 0.28 inches, 7 millimeters
- Country of Origin Germany
- Weight 18.995 grams
- Height 106 millimeters, 4.173 inches
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Voltage 500 volts
- Current 24 amperes
- Width 0.197 inches, 5 millimeters
- Insulation Material Polyamide
- Color Gray
- Package Type Box
- Flammability Class V0
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 870-567 on Powermatic Associates is $10.35. Order now.
About the product
Wago 870-567 is a terminal block designed for feed-through, neutral-through, and ground/earthing applications. It features CAGE-CLAMP spring connections and is rated for a current of 24A according to IEC standards. This triple-deck terminal block is designed to accommodate 1 feed-through pole plus neutral-through plus protective-earth (1P+N+PE) and is suitable for mounting on DIN-35 rail (35 x 15 / 35 x 7.5). The terminal block has a net height of 6 kV, a rated impulse voltage (Uimp) of 5 mm, and a net width that supports a control voltage (AC). It is designed for use with 0.08mm2 to 4mm2 fine stranded conductors, 0.08mm2 to 2.5mm2 solid conductors, and #28AWG to #12AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66, has dimensions of H106mm x W5mm x D52.5mm, and includes 3 x 2-wires (3 clamps + 3 clamps) for connections. It is part of the X-COM series and has a diameter rating of 500 V according to IEC standards.
Similar products from: WAGO Industrial Automation Components
Manufacturer warranty
870-567 WAGO
$10.35
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$10.35
$10.35 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
