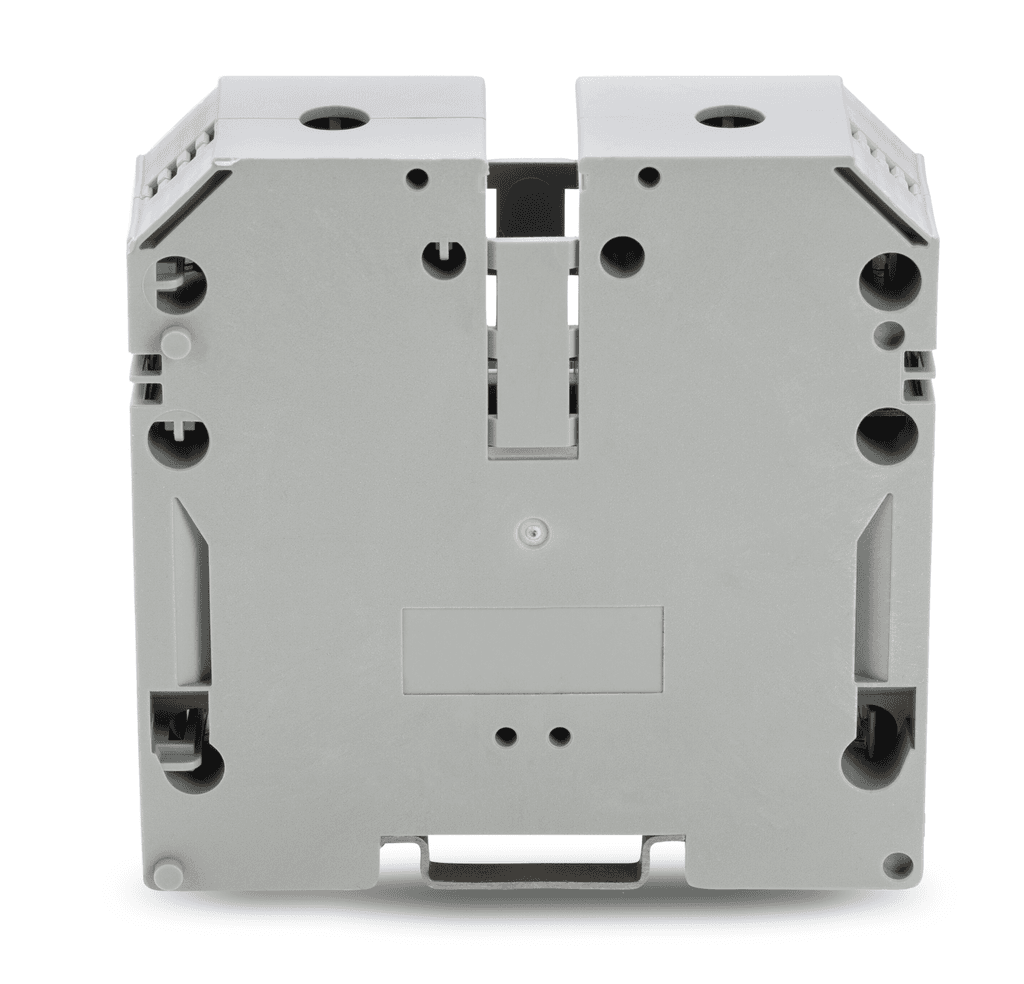

883-1201 WAGO Industrial Automation Components
Part#:883-1201
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
883-1201 WAGO - 2-conductor through terminal block; 120 mm²; with screw-type connection; 120,00 mm²; gray
Product Details
- Operating Temperature 105 degrees celsius
- Height 3.583 inches, 91 millimeters
- Actuator T-wrench; 6 Mm
- Mounting Type DIN-rail 35 X 7.5
- Current 228 amperes, 269 amperes
- Color Gray
- Insulation Material Polyamide
- Conductor Size 150 millimeters, 300 thousand circular mils, 6 american wire gauge
- Voltage 1000 volts, 600 volts
- Country of Origin Germany
- Weight 280.700 grams
- Flammability Class V0
- Width 1.063 inches, 27 millimeters
- Conductor Material Aluminum, Copper
- Strip Length 1.06 inches, 27 millimeters
- Package Type Box
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 883-1201 on Powermatic Associates is $68.18. Order now.
About the product
Wago 883-1201 is a feed-through terminal block designed for screw-clamp connections. It supports a rated current of 269A according to IEC standards, 290A for IEC, 228A for UL, and 228A for CSA. This terminal block is a single-deck design with a net height for IEC at 8 kV and a rated impulse voltage (Uimp) of 27 mm. It features a net width for 1 feed-through pole (1P) and is suitable for mounting on a DIN-35 rail (35 x 7.5). The terminal block is colored gray and has dimensions of H91mm x W27mm x D90mm. It accommodates 16mm2 to 120mm2 fine stranded conductors, 16mm2 to 150mm2 solid conductors, #6AWG to #300kcmil fine stranded conductors, and #6AWG to #300kcmil solid conductors, with a 120mm2 nominal cross-section. The material is Polyamide (PA) 66, and it includes 2-wires (1 screw + 1 screw) (1+1) for normally closed (NC) auxiliary contacts. The terminal block is rated for (IEC) 1000 V, (UL) 600 V, and (CSA) 600 V.
