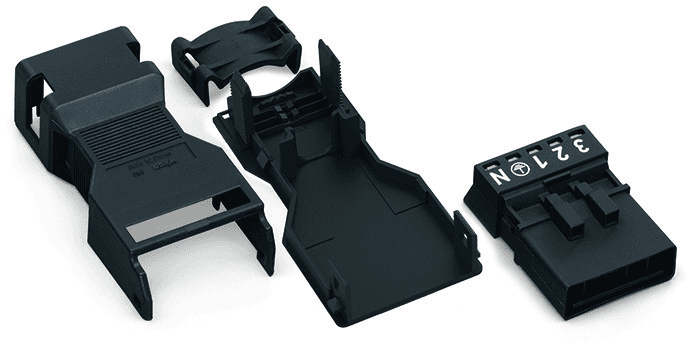

890-115 WAGO Electrical Connector Accessories

WAGO 890-115 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring a nominal voltage of 400V (III/3), a rated impulse voltage of 6kV (III/3), and a rated current of 13A. It adheres to overvoltage category III and pollution degree 3. For the US market, under UL 1977, it has a rated voltage of 600V and a rated current of 12A, suitable for current interruption in select applications below 5A and up to 600V. The part has approximately 1mΩ of contact resistance and 0.25mΩ contact transition plug/socket. It offers 5 connection points and the same number of total potentials, utilizing Push-in CAGE CLAMP technology for connection, with an actuation type of operating tool or push-in. The nominal cross-section for connection 1 is 1.5mm2 / 16 AWG, accommodating various conductor types and sizes, with a strip length of 9mm / 0.35" and a pole number of 5. The physical dimensions include a pin spacing of 4.4mm / 0.173", width of 26.7mm / 1.051", height of 15.8mm / 0.622", and depth of 71.9mm / 2.831". Designed for general mains applications, it features a coding of A, no variable coding, and potential marking of 3 2 1 PE N. The protection type is IP40, with a male connector/plug contact type and mismating protection. The material is black with a gray cover, made from Polyamide (PA66) and Chrome-Nickel spring steel (CrNi) for the clamping spring, with tin-plated copper or copper alloy contacts. It operates within a temperature range of -5...+40°C and can continuously operate between -35...+85°C. Packaged in boxes of 50 pieces, it is RoHS compliant without exemption, has a GTIN of 4045454232924, and a customs tariff number of 85366990990, indicating its country of origin as DE.
