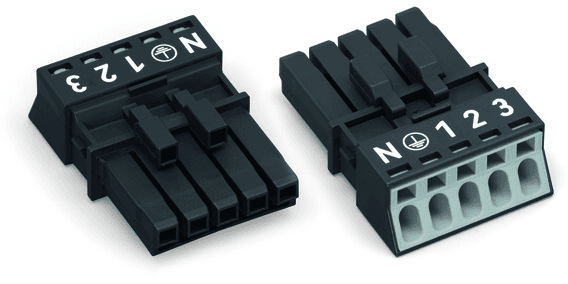

890-205 WAGO Industrial Automation Components

WAGO 890-205 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1, featuring a nominal voltage of 400V (III/3), a rated impulse voltage of 6kV (III/3), and a rated current of 13A. For the US market, it has a rated voltage of 600V and a rated current of 12A according to UL 1977, with specific versions suitable for current interruption in select applications below 5A and up to 600V. The part has approximately 1mΩ of contact resistance and about 0.25mΩ contact transition plug/socket. It offers 5 connection points and the same number of total potentials, utilizing Push-in CAGE CLAMP technology for connection, with an actuation type of operating tool or push-in. The nominal cross-section for connection 1 is 1.5mm2 / 16 AWG, accommodating various conductor types and sizes, including solid, stranded, and fine-stranded conductors, with specific details for push-in termination and ferrule usage. The strip length for connection 1 is 9mm / 0.35", with a pole number of 5 and a conductor entry direction to mating direction of 0°. Physically, it has a pin spacing of 4.4mm / 0.173", dimensions of 23.6mm width, 11.7mm height, and 34.1mm depth, and is designed for general mains applications with a coding of A. It features potential marking of N PE 1 2 3, a mating force of approximately 20...70N, a retention force of locked > 80N, and an unmating force of approximately 20...70N, depending on the pole number, with a number of mating cycles of 200 without resistive load. The protection type is IP20, IP40 with strain relief housing. The plug-in connection includes a female connector/socket, with mismating protection and a locking lever that can be retrofitted. The material is black with a gray cover, made from Polyamide (PA66) for insulation, Chrome-Nickel spring steel (CrNi) for the clamping spring, and copper or copper alloy, surface-treated with tin for the contacts. It has a fire load of 0.133MJ and weighs 6.1g. The operating temperatures range from -5...+40°C for processing and -35...+85°C for continuous operation, with insulating parts rated for ≤ 105°C. It belongs to product group 20 (Winsta), with commercial and environmental compliance details provided, including RoHS compliance without exemption, packaged in boxes of 50 pcs, and has a country of origin of PL.
