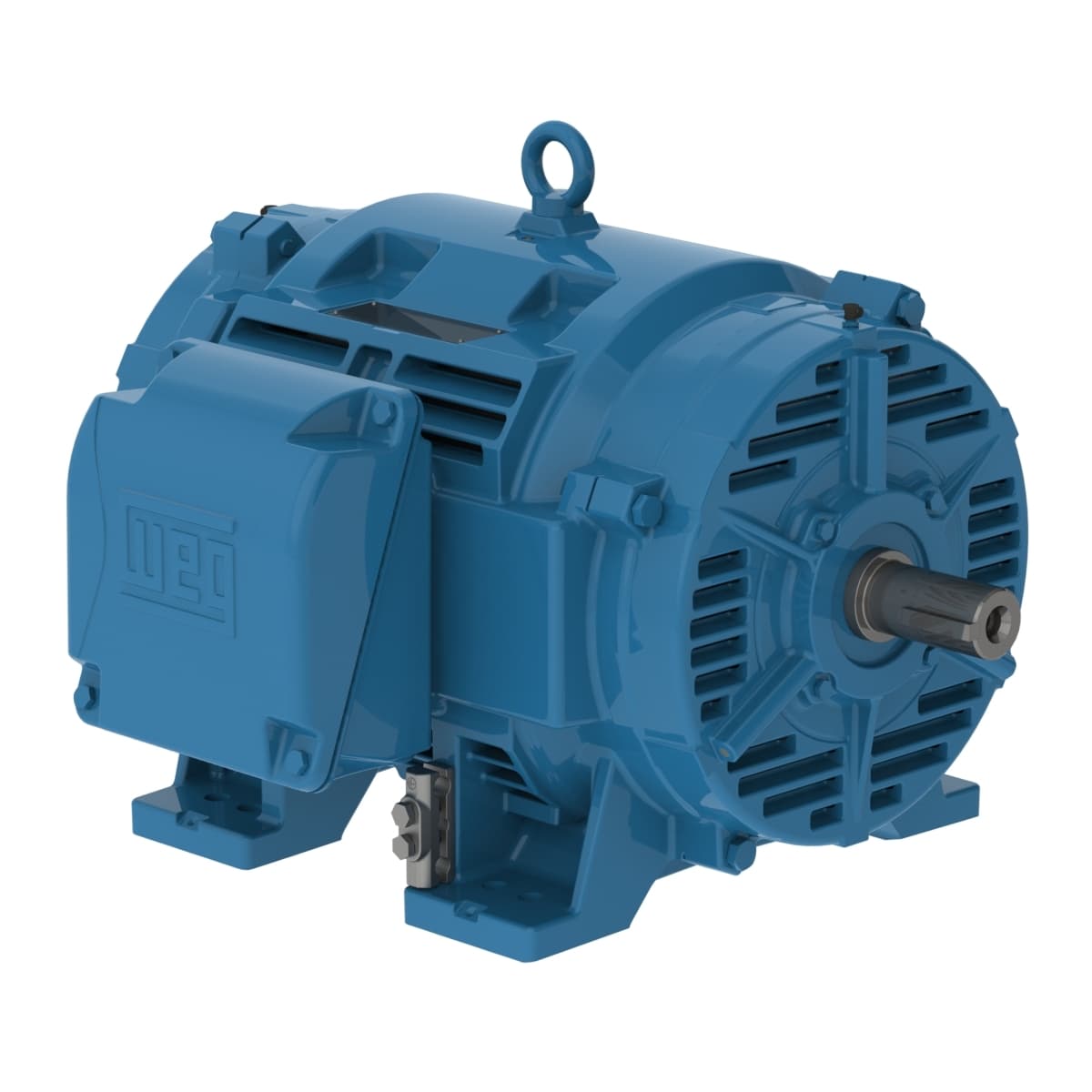

20036OT3H444TS-W40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  200 HP
• Rated Speed
  3570 rpm
• Flange Type
  Without
• LRC
  6.5x(Code G)
• Insulation Class
  F
• Rated torque
  294 ft.lb
• Synchronous speed
  3600 rpm
• Rated voltage
  575 V
• Duty Cycle
  Cont.(S1)
• No load current
  53.6 A
• Output
  200 HP (150 kW)
• Moment of inertia (J)
  23.8 sq.ft.lb
• Degree of Protection
  IP23
• Voltage
  575 V
• Frame
  444/5TS
• Temperature rise
  80 K
• Rotation¹
  Both (CW and CCW)
• Output rating
  200 HP
Number of Poles
2
Breakdown torque
229 %
Ambient temperature
-20°C to +40°C
Approx. weight³
1268 lb
Flange
Without
Slip
0.83 %
Service factor
1.15
Mounting
F-1
Number of poles
2
Frequency
60 Hz
Locked rotor time
37s (cold) 21s (hot)
Altitude
1000 m.a.s.l.
Noise level²
85.0 dB(A)
Rated current
180 A
Rated speed
3570 rpm
Locked rotor torque
140 %
Starting Method
Direct On Line
Design
B
Terminal box¹
Left position
Enclosure
IC01 - ODP
L. R. Amperes
1170 A
Standard
NEMA MG-1
