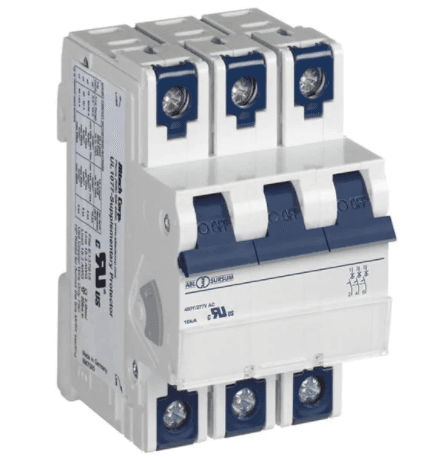

3D40UR Altech Corp. Supplementary Protectors

3D40UR on Powermatic Associates
Altech Corp.

Part#:3D40UR

Manufacturer:Altech Corp.

Category:Supplementary Protectors

Product Lifecycle:Active

Product description

Supplementary Protector 40A, 3 Pole, 480Y/277V AC, D Trip, UL1077

Product Details

  • Number of Poles
    3 Pole
  • Current Rating
    40 A
  • Trip Curve
    D
  • SCCR
    10 kA
  • UL Standard
    1077
  • UL CCN
    QVNU2
  • UL File No.
    E137915
  • Terminal Type
    Compression

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3D40UR Related Documents
