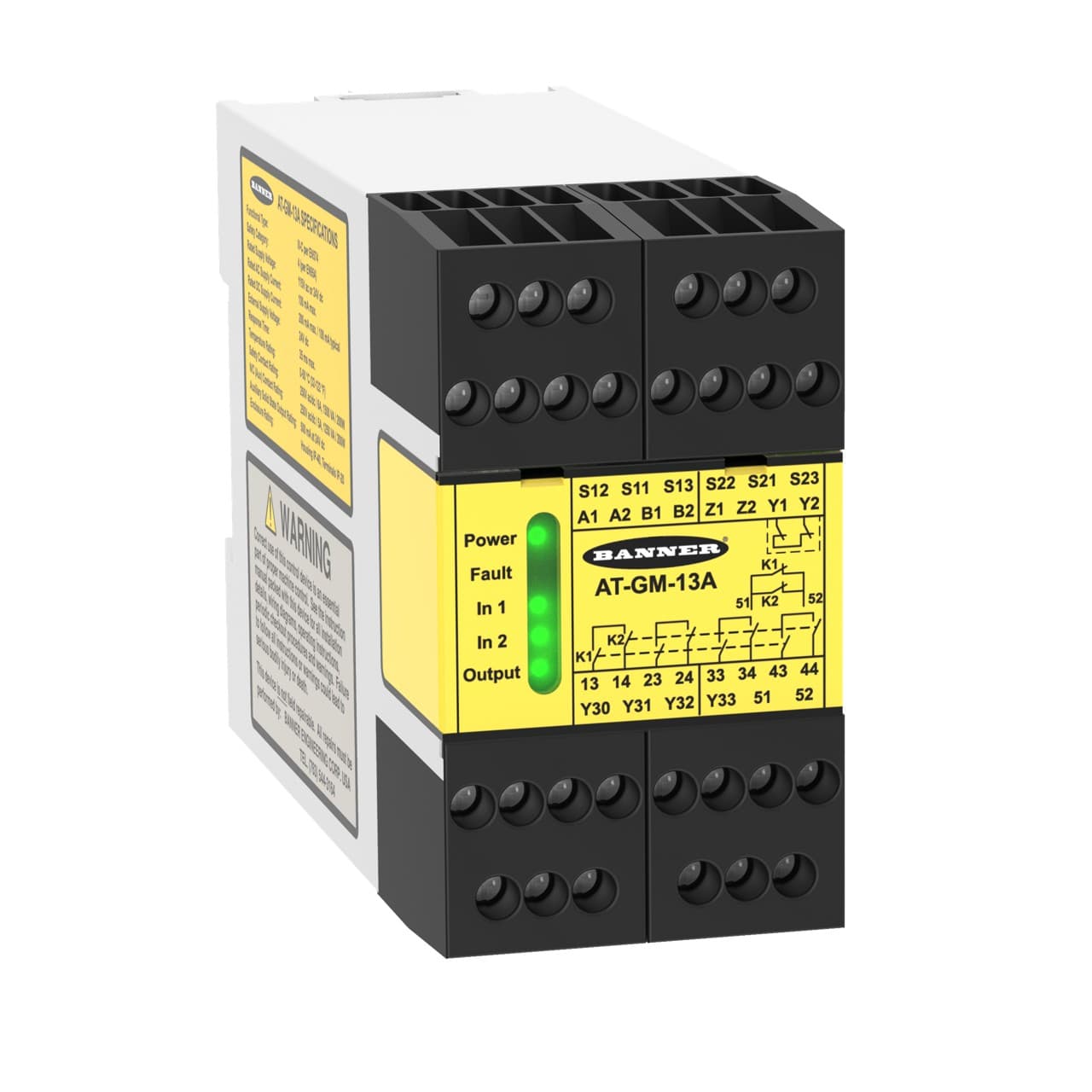

AT-GM-13A Banner Electronic Components

Product Details

• THC Rating
  IIIC
• PCCC
  No
• Safety Module Type
  Two-Hand Control Module
• Terminal Type
  Screw
• Input Operation
  Simultaneous <= 500 ms (500 ms typical)
• Dimension (H x W x D in mm)
  84 x 45 x 118
• Input Configuration
  2 x complementary (contact or PNP)
• Mechanical Life (Operations in Millions)
  50
• Safety Category Rating
  4
• In-Series Diagnostics
  No
• Device Type
  Safety Relay
• Safe Output Rating
  Relay - 6 A
• Electrical Life (Cycles @ VA)
  150,000 @ 1500 VA
• Light Curtains/Scanner with EDM Input
  No
• Motor Speed
  No
• Safety Input - Dual Channel (Solid-State)
  20 mA @ 24 V dc (1 complementary PNP pair per channel)
• Splittable Safe Output
  No
• Safety Mat
  No
• Common Ethernet Protocol
  No
• Power
  AC/DC Universal
Output Configuration
4 NO
Removable Terminals
Yes
Two-Hand Controls
Yes
Modbus/TCP
No
Safety Input - Dual Channel (Dry Contact)
20 mA @ 12 V dc (1 NO / 1 NC per channel)
Light Curtains/Scanner without EDM Input
No
Relative Humidity
90% @ 50° C
Response Time (ms)
35 (max.)
Gate Switch (OSSD) Input
No
Expandable
No
Non Safe Output Configuration
1 NC
Supply Voltage
115 V ac +/- 15% (A1-A2); 11 - 27.6 V dc (B1-B2)
Gate Switch (NC/NC) Input
No
PROFINET
No
Max Operating Temperature ( °C)
50
Non Safe Output Rating
Relay - 5 A
IP Rating
IP20
Gate Switch (NC/NO) Input
No
LCD Display
No
Independently Controlled Safe Outputs
1
Power Consumption
4 W / 7 VA
E-Stops/Rope Pulls
No
EtherNet/IP
No
Number of Safe Inputs
1
Vibration
10-55 Hz at 0.35 mm
Muting
No
