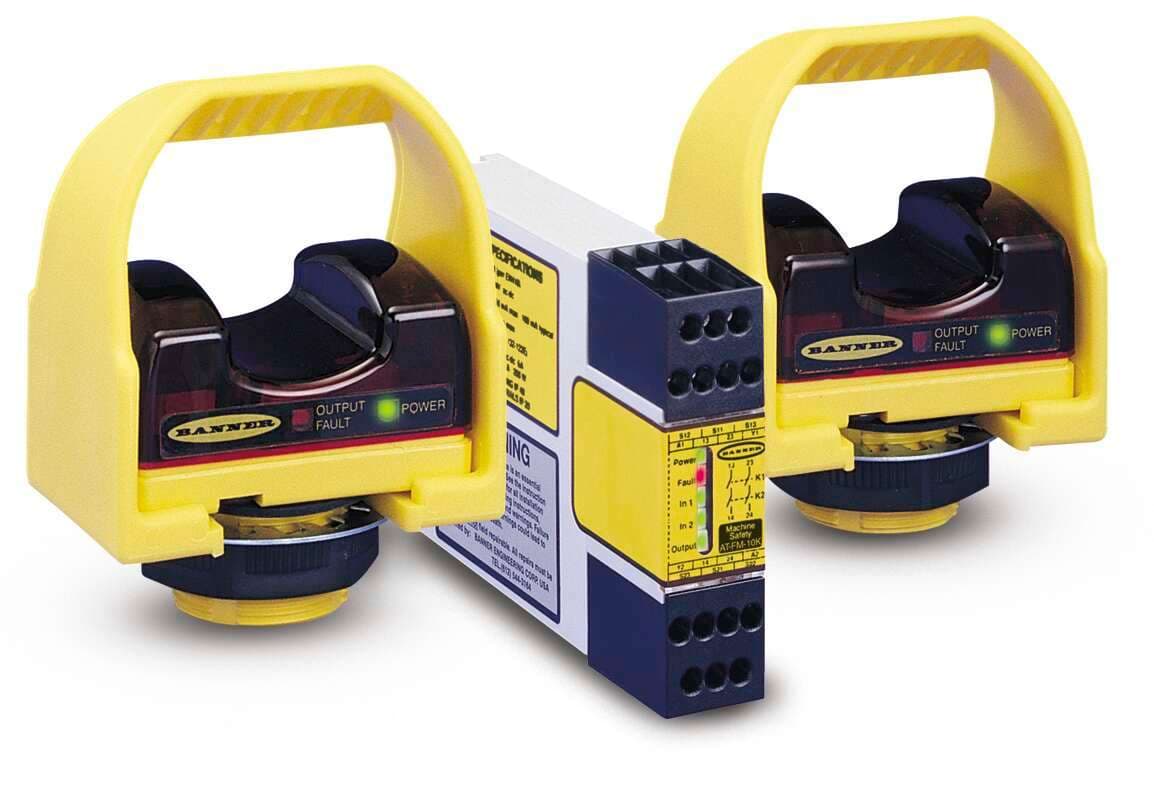

ATK-VR81Q Banner Safety Relays

Product Details

• Weight
  526.16672 g
• Country Of Origin
  US
• Safety Module Type
  Two-Hand Control Module
• Splittable Safe Output
  No
• PL Rating
  e
• Dimension (H x W x D in mm)
  84 x 22.5 x 118
• Independently Controlled Safe Outputs
  1
• THC Rating
  IIIC
• Input Operation
  Simultaneous <= 500 ms (500 ms typical)
• Light Curtains/Scanner without EDM Input
  No
• Relative Humidity
  90% @ 50° C
• Output Configuration
  2 NO
• Removable Terminals
  Yes
• SIL Rating
  3
• In-Series Diagnostics
  No
• LCD Display
  No
• Mechanical Life (Operations in Millions)
  20
• Safety Input - Dual Channel (Solid-State)
  25 mA @ 24 V dc (1 complementary PNP pair per channel)
• Safety Category Rating
  4
• PROFINET
  No
Expandable
No
Safe Output Rating
Relay - 6 A
Vibration
10-55 Hz at 0.35 mm
Gate Switch (NC/NO) Input
No
Device Type
Safety Relay
Input Configuration
2 x complementary (contact or PNP)
Supply Voltage
24 V ac/dc +/- 15%
Gate Switch (NC/NC) Input
No
PCCC
No
Terminal Type
Screw
SISTEMA
PFHd = 1.5 x 10-9
Modbus/TCP
No
Power
AC/DC Universal
Safety Input - Dual Channel (Dry Contact)
25 mA @ 24 V dc (1 NO / 1 NC per channel)
Max Operating Temperature ( °C)
50
Non Safe Output Rating
N/A
IP Rating
IP20
Gate Switch (OSSD) Input
No
Number of Safe Inputs
1
Power Consumption
3 W / 3 VA
Two-Hand Controls
Yes
Common Ethernet Protocol
No
Response Time (ms)
35 (max.)
Electrical Life (Cycles @ VA)
1,000,000 @ 250 VA
Light Curtains/Scanner with EDM Input
No
EtherNet/IP
No
