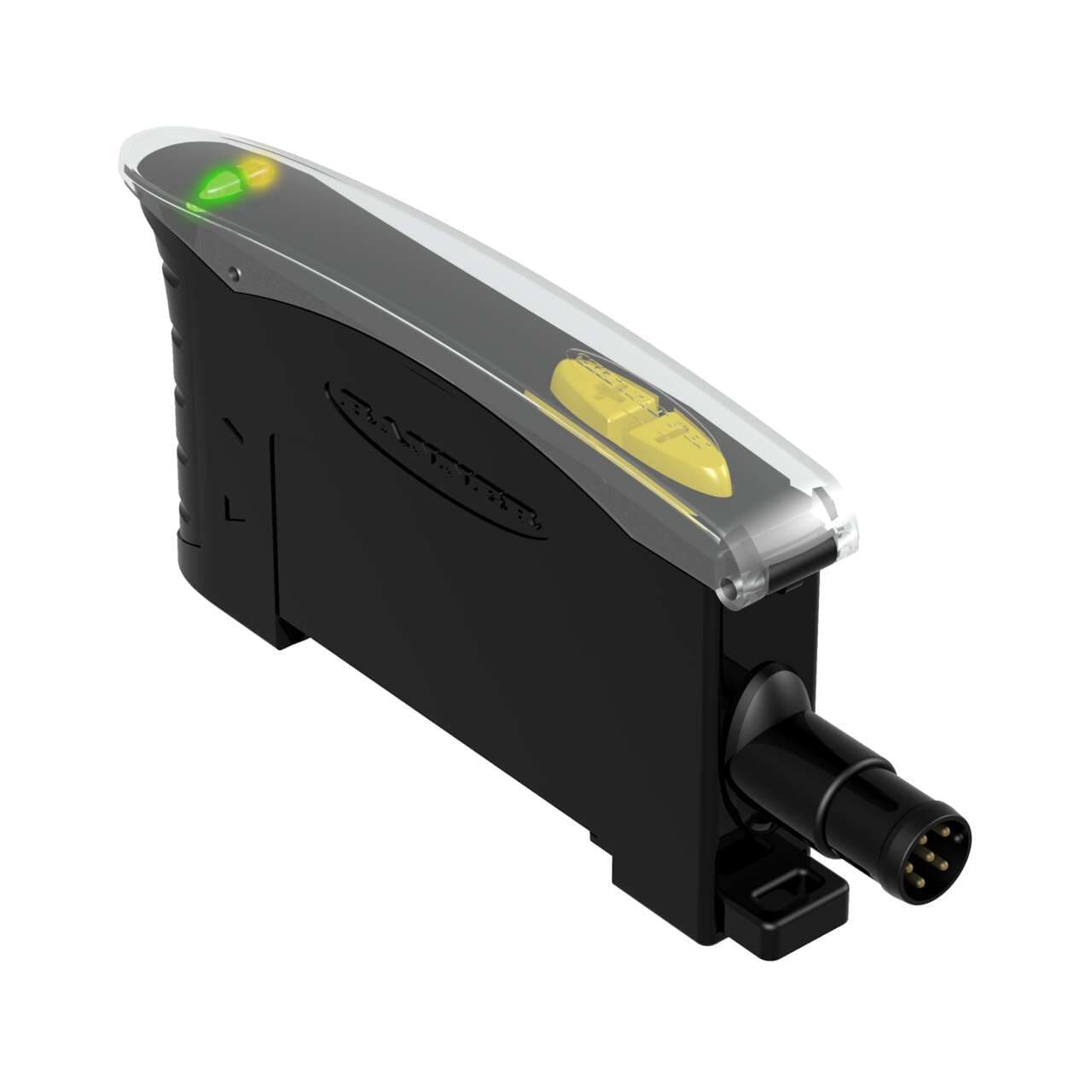

D10DPFPQ Banner Sensor Accessories

Product Details

• Weight
  81.64656 g
• Country Of Origin
  CN
• Main function
  Amplifier for sensor
• Display
  LED 4 digits display
• Mounting mode
  DIN rail mounting
• Contents
  mounting bracket M3 hardware
• Primary brand
  Banner Engineering
• Sub-range name
  D10 Expert series
• Light Color
  Visible red
• Ambient air temperature for operation
  -10...+55 °C
• Technical compatibility with
  plastic fiber optic cable
• Net Depth (mm)
  35.9 mm
• Supply voltage (DC)
  12Vdc-24Vdc
• Shape
  Rectangular
• Digital outputs
  2 x digital outputs (PNP transistors)
• Degree of protection
  IP50 NEMA 1
• Net Height (mm)
  68.1 mm
• Functions
  High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
• Order code / Manufacturer SKU
  62383
• Product series / family name
  Fiber optic amplifiers
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Net Width (mm)
10.5 mm
Wavelength
680 nm
Compliant with standard(s)
cURus CE
Material
thermoplastic housing Polycarbonate cover
Number of Pins
6
Power Supply/Supply Voltage
12-24 V dc
IO Link
No
Connection
Integral QD
Max Op. Relative Humidity (%)
90% @ 50°C
Feature: Audible
No
Power
DC
Input/Output
Discrete
NEMA Rating
NEMA 1
Feature: Timing (Hold/Delay)
Yes
Color LED - Amplifiers
Red
Special Feature: Remote Teach
Yes
Special Feature: Bussable Power
No
Primary Housing Material
Thermoplastic
Min Op. Temperature (°C)
-10
Delay at Power-up (ms)
1000
Quick Disconnect Type
M8 (Pico)
Crosstalk Avoidance
Yes
Feature: Hazardous Area
No
Output Type (Specific)
Dual Discrete
Housing Style
DIN Rail
Intrinsically Safe
No
Housing Material
Thermoplastic
Fiber Type
Plastic and Glass
Max Op. Temperature (°C)
55
Indicator Display Type
Single Digital Display
Repeatability (µs)
25 to 100
Adjustments
Teach Button
Output
PNP
IP Rating
IP50
Minimum response time (ms)
.05
