DEE2R-83D Banner Cordsets

DEE2R-83D on Powermatic Associates
Banner
  • DEE2R-83D
  • DEE2R-83D

Part#:DEE2R-83D

Alt. Part#:72206

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

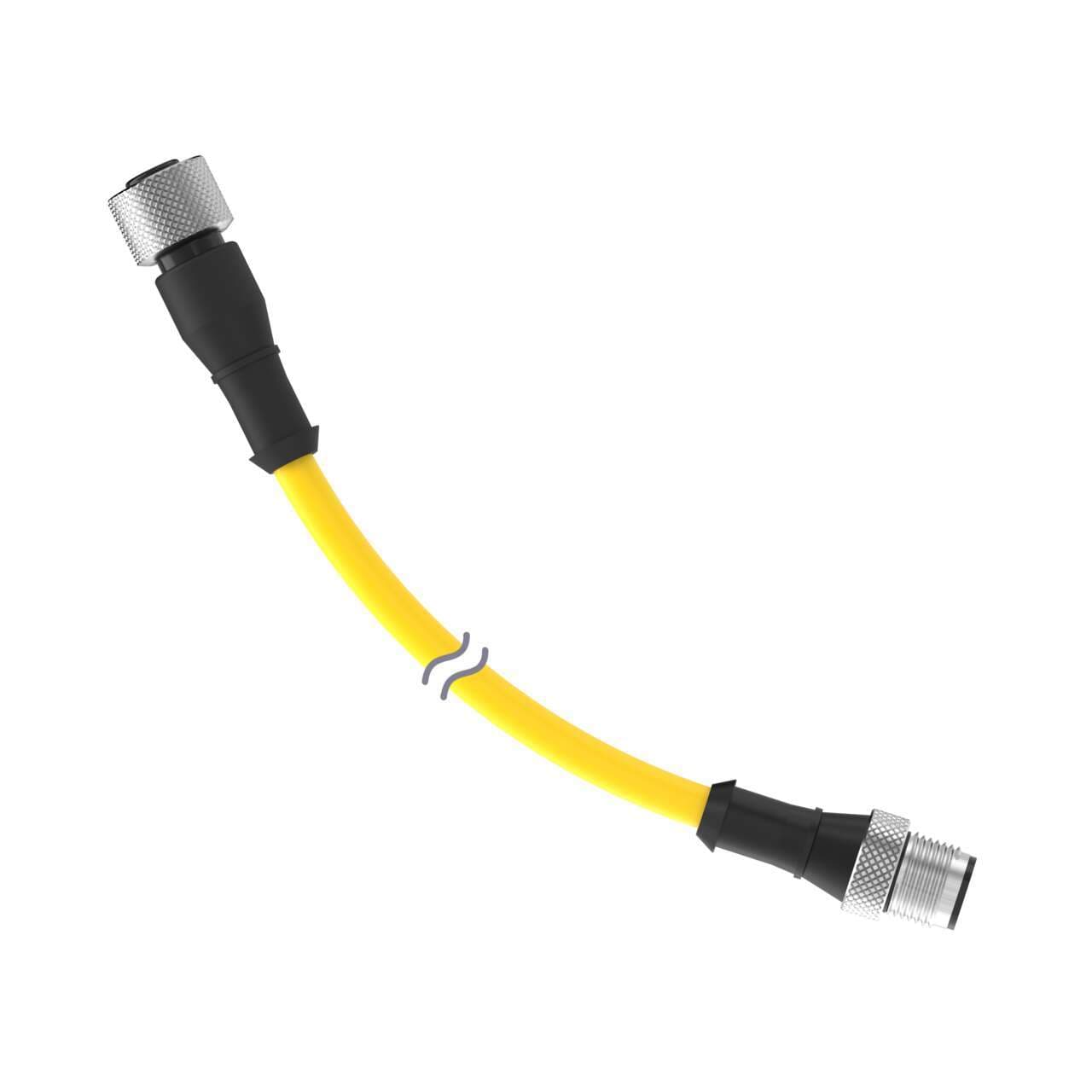

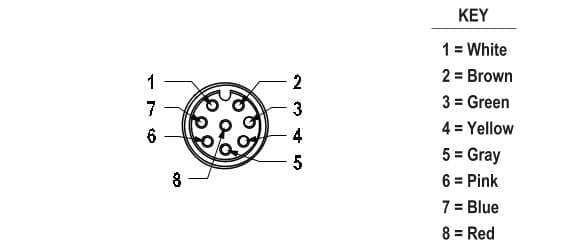

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 0.91 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    TW
  • Cable Jacket Material
    PVC
  • Primary Connector Type
    EURO
  • Secondary Orientation
    Straight
  • Cordset Length (m)
    0.91
  • Primary Number of Conductors
    8
  • Connector Body Material/Color
    PUR Black
  • IP Rating
    IP68
  • Cable Jacket Color
    Yellow
  • Minimum Temp. (°C)
    -40
  • Secondary AWG
    22
  • Maximum Temp. (°C)
    105
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Shield/No Shield
    No Shield
  • Primary Gender
    Female
  • Secondary Coupling Method
    M12 Single Key
  • Outside Cable Diameter (mm)
    6
  • Primary Orientation
    Straight
  • Feature: Hazardous Area
    No
  • Trunk Length (m)
    No Trunk
  • Primary Coupling Method
    M12 Single Key
  • Number of Connectors
    2
  • Coupling Material/Color
    Nickel Plated Brass
  • Primary AWG
    22
  • Secondary Gender
    Male
  • Number of Contacts
    8
  • Current Rating (A)
    2.0
  • Secondary Connector Type
    EURO
  • Secondary Number of Conductors
    8
  • Oil/Grease Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-83D on Powermatic Associates is $38.00. Order now.


About the product

Banner Engineering DEE2R-83D is a pre-assembled, double-ended cable featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. This part is constructed with a chrome-plated brass coupling nut and a PVC cable with a diameter of 6mm and a length of 910mm. The cable is designed to operate in ambient air temperatures ranging from -40 to +105°C and is rated for 60Vac and 75Vdc. It offers a degree of protection of IP68, ensuring its protection against dust and immersion in water. The cable's sheathing is yellow, providing clear visibility and identification in various installation environments.


Manufacturer warranty

DEE2R-83D Banner

$38.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$38.00

$38.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support
