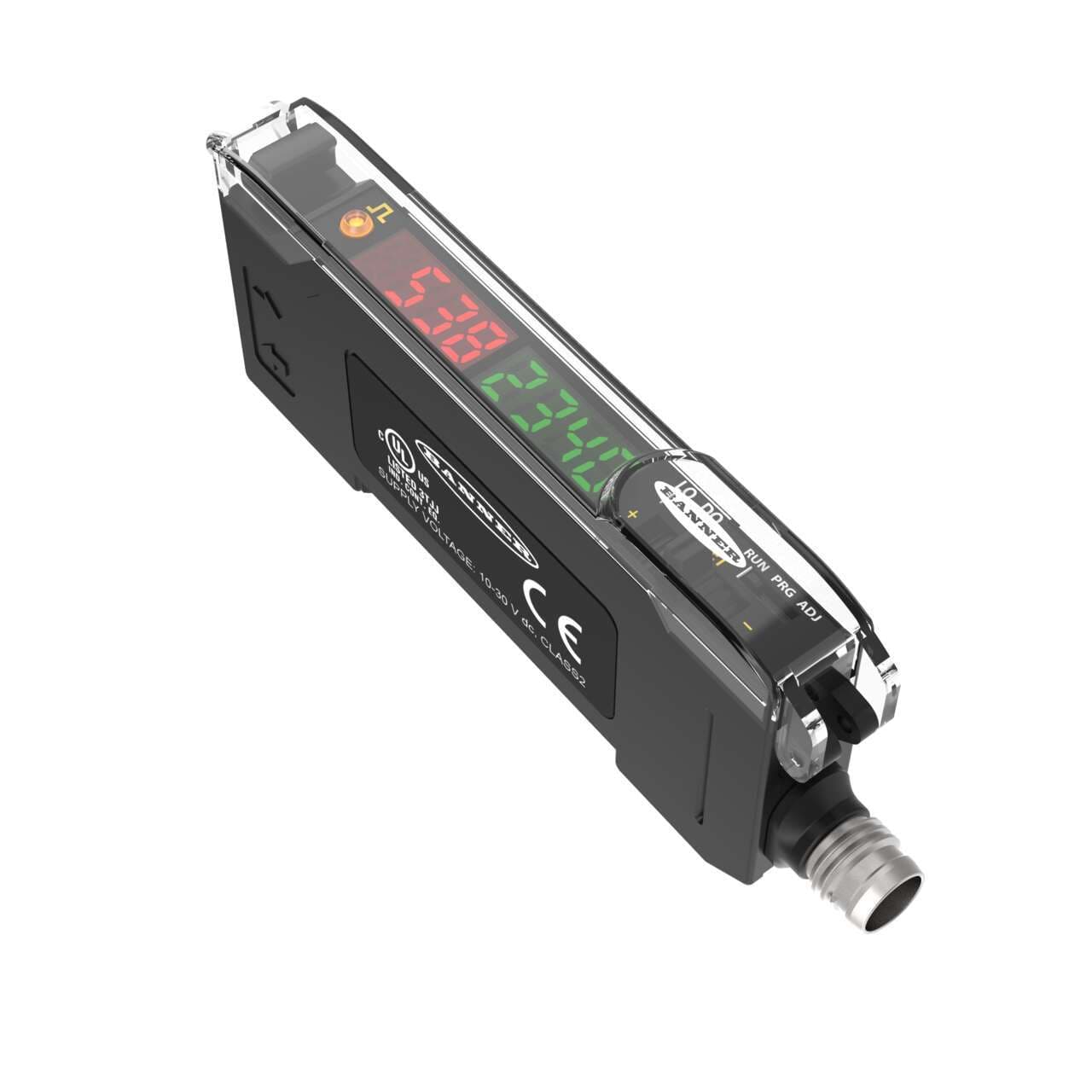

DF-G1-KS-Q7 Banner Sensor Accessories
Part#:DF-G1-KS-Q7
Alt. Part#:25793
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: Push/Pull with IO-Link; 4-pin M8 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin CN
- Housing Material Thermoplastic
- Feature: Audible No
- Feature: Hazardous Area No
- IO Link Yes
- Feature: Timing (Hold/Delay) Yes
- Minimum response time (ms) .2
- Special Feature: Bussable Power No
- Indicator Display Type Dual Digital Displays
- Power Supply/Supply Voltage 10-30 V dc
- Adjustments Teach Button
- Delay at Power-up (ms) 500
- Crosstalk Avoidance Yes
- Intrinsically Safe No
- Max Op. Temperature (°C) 55
- Max Op. Relative Humidity (%) 90% @ 60°C
- Min Op. Temperature (°C) -10
- Special Feature: Remote Teach No
- IP Rating IP50
- NEMA Rating NEMA 1
- Number of Pins 4
- Repeatability (µs) 66 to 100
- Output Type (Specific) IO-Link and Single Discrete
- Connection Integral QD
- Output IO-Link/PNP
- Quick Disconnect Type M8 (Pico)
- Color LED - Amplifiers Red
- Fiber Type Plastic and Glass
- Input/Output Discrete & Serial
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Power DC
- Display LED 4 digits x 2 (red + green)
- Shape Rectangular
- Compliant with standard(s) cULus CE
- Functions Dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Mounting mode DIN rail mounting
- Main function Amplifier for sensor
- Design light-intensity receiver
- Connection type Pre-equipped with 4-pin Pico-style M8 connector
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Sub-range name DF-G1 Expert series
- Wavelength 660 nm
- Communication protocol IO-Link
- Equivalent to DFG1KSQ7
- Product series / family name Fiber optic amplifiers
- Supply voltage (DC) 18Vdc-30Vdc (24Vdc nom.)
- Light Color Visible red
- Degree of protection IP50 NEMA 1
- Ambient air temperature for operation -10...+55 °C
- Material thermoplastic housing
- Order code / Manufacturer SKU 25793
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G1-KS-Q7 on Powermatic Associates is $192.00. Order now.
About the product
Banner Engineering DF-G1-KS-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 660 nm and a rapid response time of 0.2ms. It includes 1 x digital output (PNP transistor) and is characterized by its rectangular shape. As part of the DF-G1 Expert series, this dual-display fiber optic sensor amplifier is designed with TEACH mode functionality. It comes pre-equipped with a 4-pin Pico-style M8 connector for connections and supports a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. Additionally, it utilizes the IO-Link communication protocol for enhanced connectivity and control.
