DF-G2-PC-Q5 Banner Sensor Accessories

DF-G2-PC-Q5 on Powermatic Associates
Banner
  • DF-G2-PC-Q5
  • DF-G2-PC-Q5

Part#:DF-G2-PC-Q5

Alt. Part#:87569

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

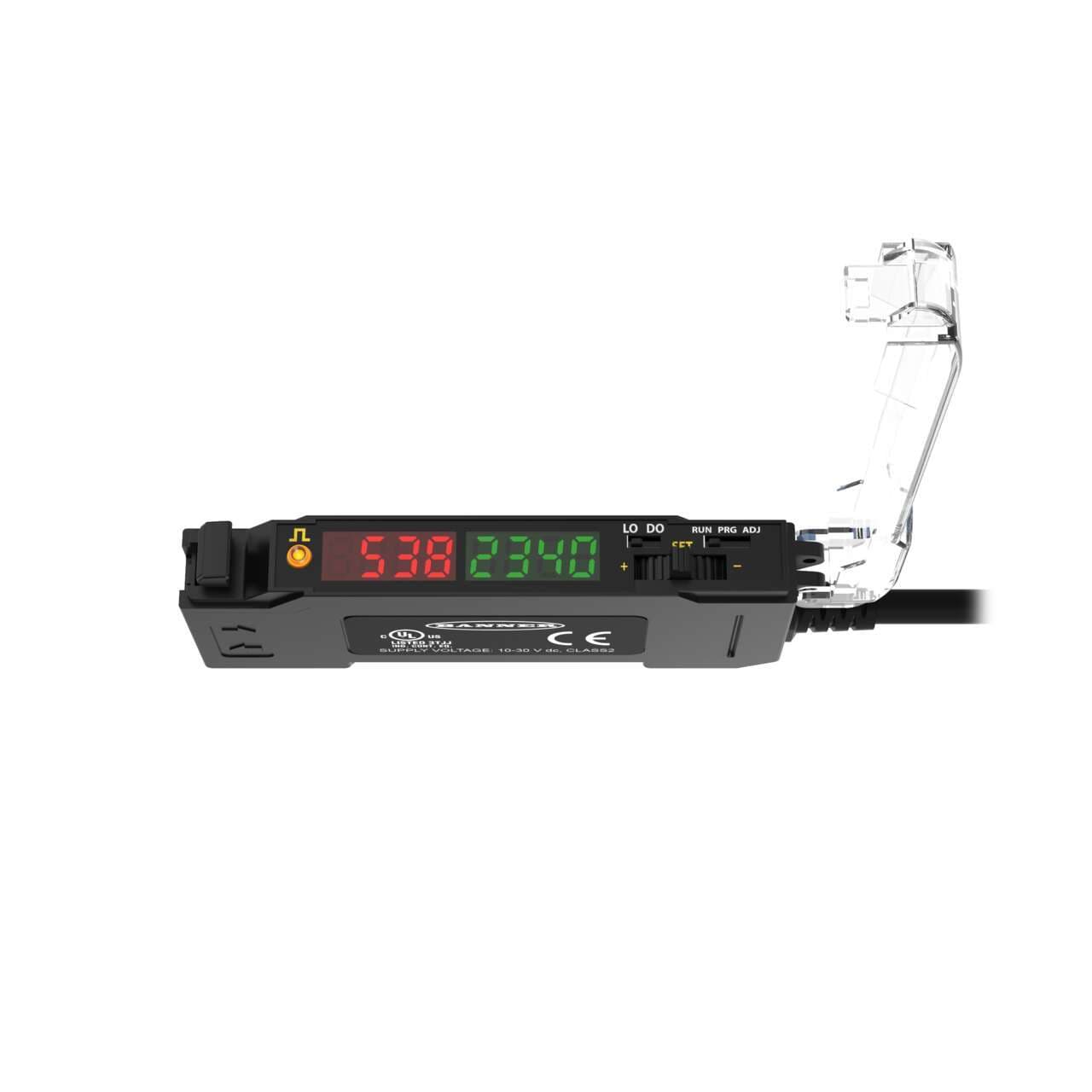

DF-G2 Red Beam Small Object Counter Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP Counting, 1 PNP Health; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    CN
  • Max Op. Temperature (°C)
    55
  • Power Supply/Supply Voltage
    10-30 V dc
  • Application: Registration Mark
    Yes
  • Cable Length (m)
    0.15
  • Primary Housing Material
    Thermoplastic
  • Quick Disconnect Type
    M12 (Euro)
  • Adjustments
    Teach Button
  • Special Feature: Bussable Power
    No
  • Feature: Audible
    No
  • Fiber Type
    Plastic and Glass
  • Number of Pins
    5
  • IP Rating
    IP50
  • Intrinsically Safe
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Health/ Marginal Signal Output
    Yes
  • Housing Material
    Thermoplastic
  • Connection
    Pigtail QD
  • Repeatability (µs)
    12 to 80
  • NEMA Rating
    NEMA 1
  • Crosstalk Avoidance
    Yes
  • Minimum response time (ms)
    .01
  • Feature: Hazardous Area
    No
  • Input/Output
    Discrete
  • Min Op. Temperature (°C)
    -10
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Special Feature: Remote Teach
    Yes
  • Delay at Power-up (ms)
    500
  • IO Link
    No
  • Color LED - Amplifiers
    Red
  • Output Type (Specific)
    Single Discrete
  • Indicator Display Type
    Dual Digital Displays
  • Power
    DC
  • Output
    PNP
  • Housing Style
    DIN Rail
  • Application: Object Counting
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2-PC-Q5 on Powermatic Associates is $226.00. Order now.


About the product

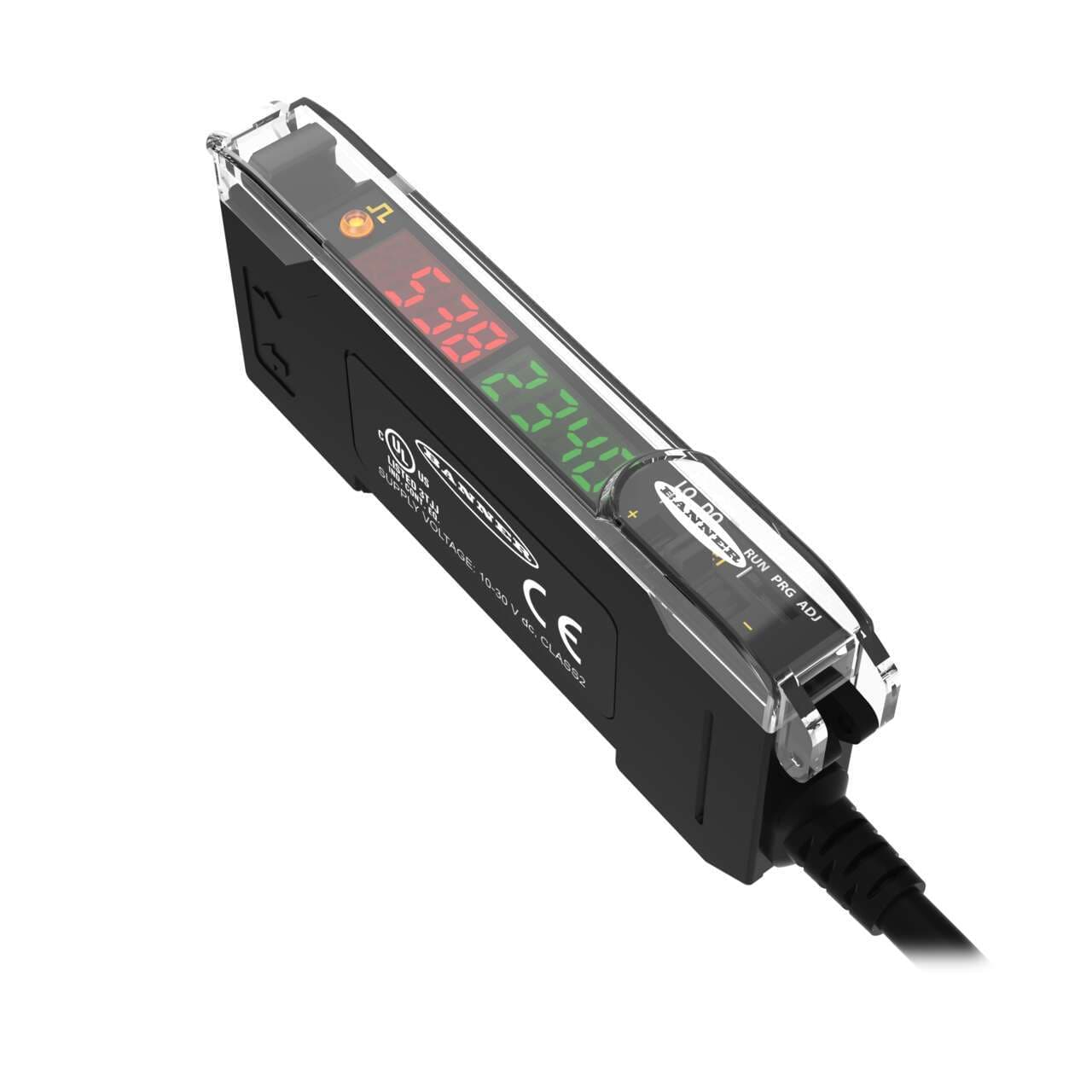

Banner Engineering DF-G2-PC-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. It boasts a rapid response time of 10µs / 0.00001 s and includes 1 x digital output (PNP transistor). The DF-G2-PC-Q5, part of the DF-G2 Expert series, is rectangular in shape and incorporates high-speed dual-display fiber optic sensor amplifier functions. It is designed with TEACH mode for small objects counting and comes pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector. The supply voltage requirement is 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
