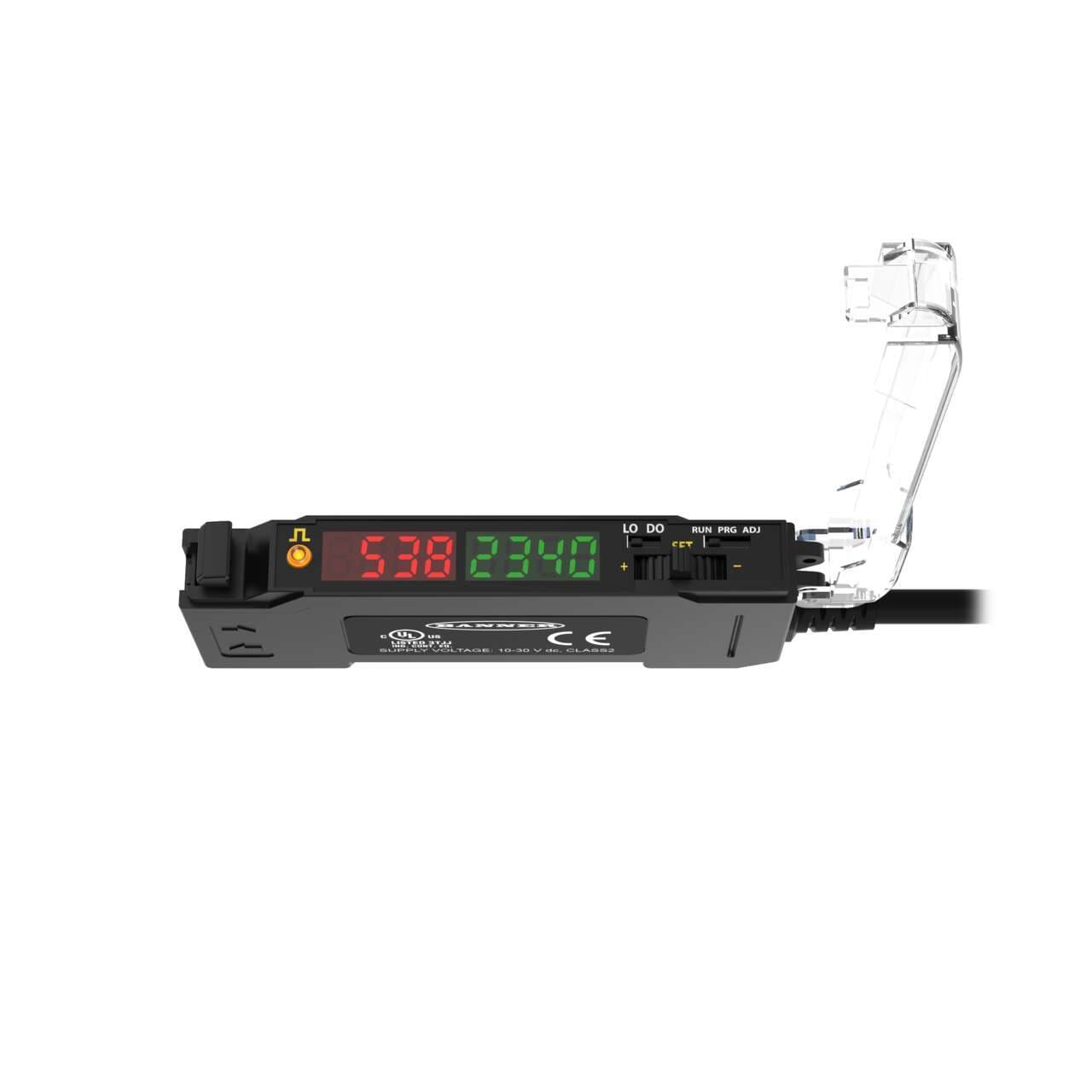

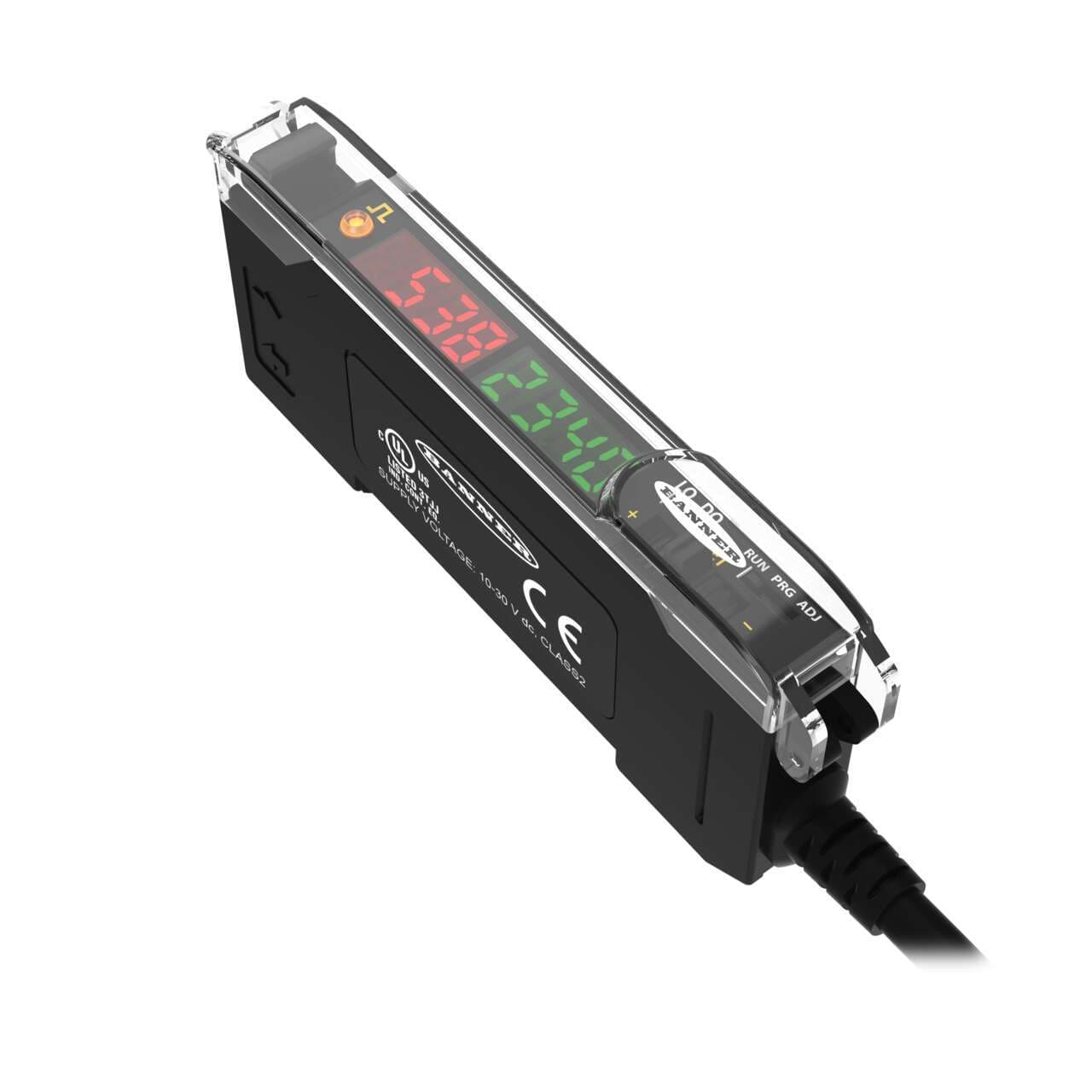

DF-G2-PS-Q3 Banner Sensor Accessories
Part#:DF-G2-PS-Q3
Alt. Part#:87558
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G2 Red Beam High Speed Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 150 mm (6 in) 4-pin M8 PVC Pigtail QD
Product Details
- Weight 26.6712096 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Sub-range name DF-G2 Expert series
- Shape Rectangular
- Degree of protection IP50 NEMA 1
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name Fiber optic amplifiers
- Display LED 4 digits x 2 (red + green)
- Wavelength 635 nm
- Order code / Manufacturer SKU 87558
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Mounting mode DIN rail mounting
- Main function Amplifier for sensor
- Light Color Visible red
- Ambient air temperature for operation -10...+55 °C
- Equivalent to DFG2PSQ3
- Functions High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Material thermoplastic housing PVC connector
- Compliant with standard(s) cULus CE
- Quick Disconnect Type M8 (Pico)
- Crosstalk Avoidance Yes
- Cable Length (m) 0.15
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Intrinsically Safe No
- Feature: Timing (Hold/Delay) Yes
- Input/Output Discrete
- Min Op. Temperature (°C) -10
- Minimum response time (ms) .01
- Color LED - Amplifiers Red
- IP Rating IP50
- Indicator Display Type Dual Digital Displays
- IO Link No
- Fiber Type Plastic and Glass
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity (%) 90% @ 60°C
- Output PNP
- Max Op. Temperature (°C) 55
- Delay at Power-up (ms) 500
- Repeatability (µs) 5 to 165
- Power DC
- Adjustments Teach Button
- Feature: Hazardous Area No
- Housing Style DIN Rail
- NEMA Rating NEMA 1
- Housing Material Thermoplastic
- Special Feature: Bussable Power No
- Number of Pins 4
- Connection Pigtail QD
- Special Feature: Remote Teach Yes
- Application: Registration Mark Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2-PS-Q3 on Powermatic Associates is $226.00. Order now.
About the product
Banner Engineering DF-G2-PS-Q3 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. It boasts a rapid response time of 10µs / 0.00001 s and includes 1 x digital output (PNP transistor). The DF-G2-PS-Q3, part of the DF-G2 Expert series, is rectangular in shape and incorporates high-speed dual-display fiber optic sensor amplifier functions. It is designed with TEACH mode for ease of use and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with 12Vdc / 24Vdc nominal.
