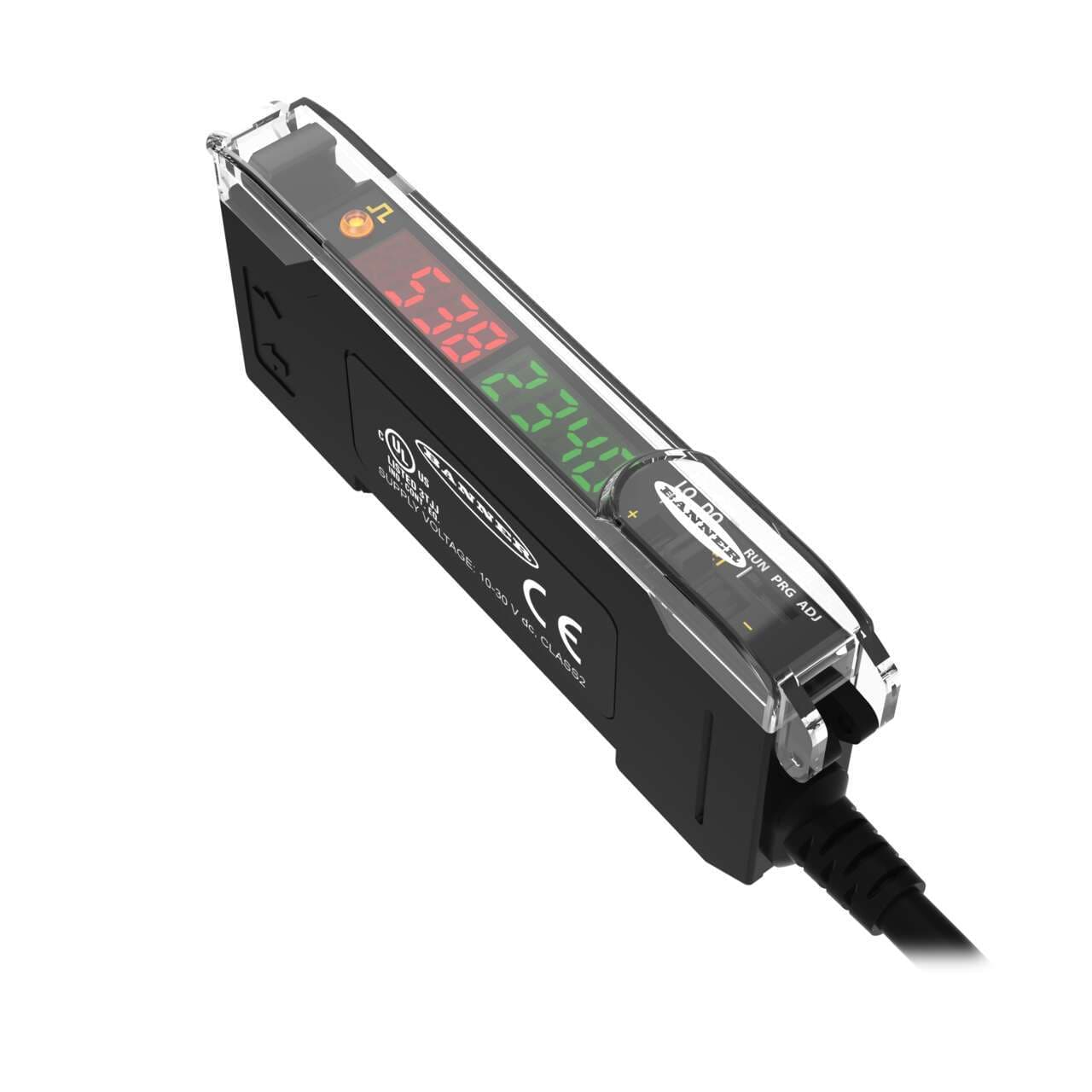

DF-G2IR-KD-Q5 Banner Sensor Accessories

DF-G2IR-KD-Q5 on Powermatic Associates
Banner
  • DF-G2IR-KD-Q5
  • DF-G2IR-KD-Q5

Part#:DF-G2IR-KD-Q5

Alt. Part#:97706

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

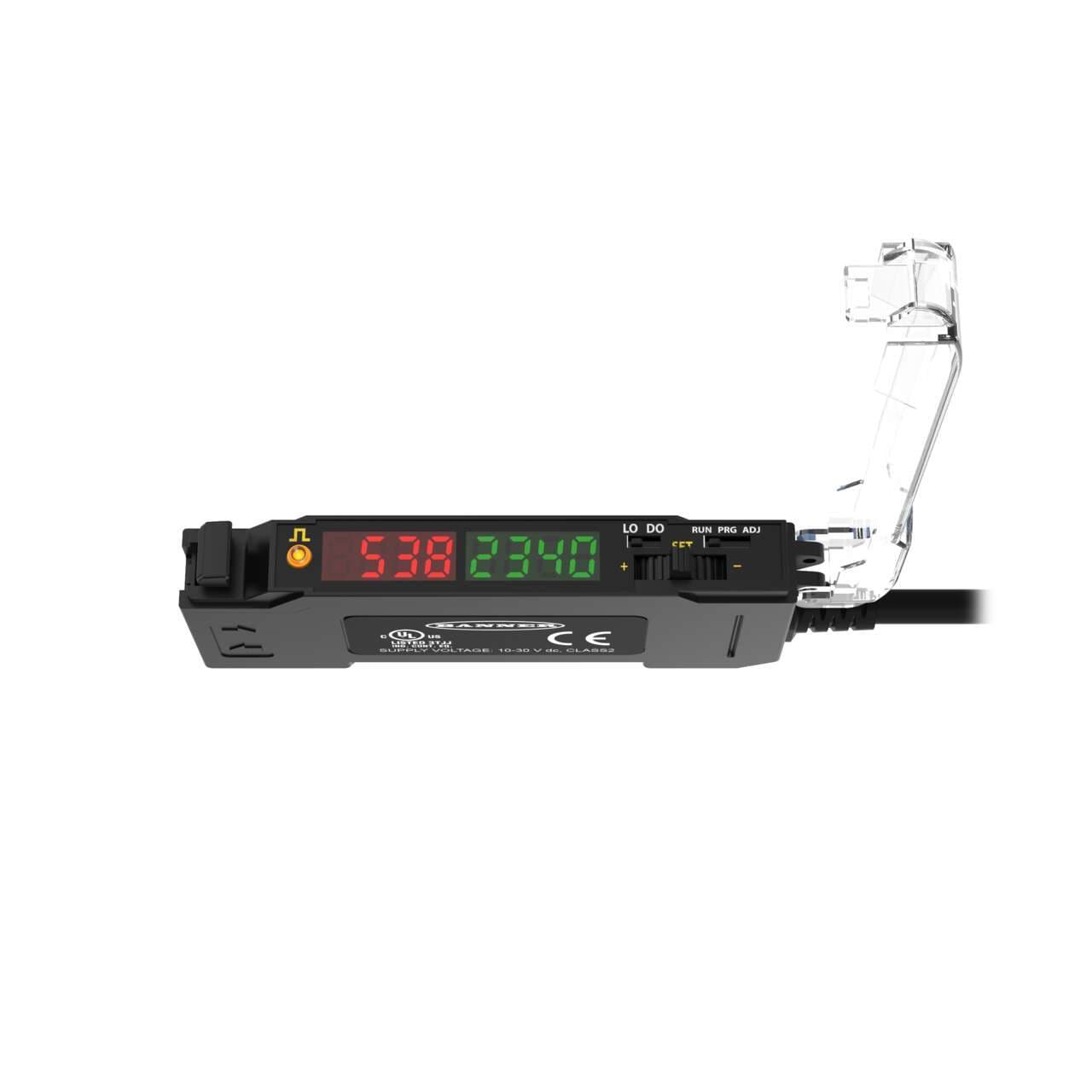

DF-G2 IR Beam High Speed Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: PNP only; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    CN
  • Main function
    Amplifier for sensor
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Product series / family name
    Fiber optic amplifiers
  • Primary brand
    Banner Engineering
  • Wavelength
    850 nm
  • Sub-range name
    DF-G2 Expert series
  • Degree of protection
    IP50 NEMA 1
  • Compliant with standard(s)
    cULus CE
  • Display
    LED 4 digits x 2 (red + green)
  • Light Color
    Infrared (IR)
  • Shape
    Rectangular
  • Communication protocol
    IO-Link
  • Equivalent to
    DFG2IRKDQ5
  • Functions
    High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Mounting mode
    DIN rail mounting
  • Material
    thermoplastic housing PVC connector Glass fiber
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Ambient air temperature for operation
    -10...+55 °C
  • Order code / Manufacturer SKU
    97706
  • Cable Length (m)
    0.15
  • Housing Style
    DIN Rail
  • Output
    IO-Link/PNP
  • Input/Output
    Discrete & Serial
  • Fiber Type
    Glass Only
  • Color LED - Amplifiers
    Infrared
  • Connection
    Pigtail QD
  • Quick Disconnect Type
    M12 (Euro)
  • Output Type (Specific)
    IO-Link and Dual Discrete
  • Repeatability (µs)
    100 to 180
  • NEMA Rating
    NEMA 1
  • Min Op. Temperature (°C)
    -10
  • Max Op. Temperature (°C)
    55
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Crosstalk Avoidance
    Yes
  • Special Feature: Remote Teach
    Yes
  • Adjustments
    Teach Button
  • Power Supply/Supply Voltage
    10-30 V dc
  • Minimum response time (ms)
    .05
  • Indicator Display Type
    Dual Digital Displays
  • Special Feature: Bussable Power
    No
  • Feature: Audible
    No
  • Application: Registration Mark
    Yes
  • Feature: Health/ Marginal Signal Output
    Yes
  • Primary Housing Material
    Thermoplastic
  • IP Rating
    IP50
  • Intrinsically Safe
    No
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Number of Pins
    4
  • Delay at Power-up (ms)
    500
  • IO Link
    Yes
  • Feature: Timing (Hold/Delay)
    Yes
  • Housing Material
    Thermoplastic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2IR-KD-Q5 on Powermatic Associates is $289.00. Order now.


About the product

Banner Engineering DF-G2IR-KD-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and glass fiber, suitable for ambient air temperatures ranging from -10 to +55 °C. This part offers a degree of protection rated at IP50 and NEMA 1, utilizing infrared (IR) light with a wavelength of 850 nm. It boasts a rapid response time of 50µs (0.00005 s) and includes 2 digital outputs (PNP transistor). The DF-G2IR-KD-Q5, part of the DF-G2 Expert series, is shaped rectangularly and functions as a high-speed dual-display fiber optic sensor amplifier. It comes pre-wired with a 6" (150mm) pigtail terminated with a 4-pin Euro-style M12 connector. The supply voltage requirement is 10Vdc-30Vdc (12Vdc / 24Vdc nom.), and it supports the IO-Link communication protocol.
