DF-G2IR-PS-2M Banner Sensor Accessories
Part#:DF-G2IR-PS-2M
Alt. Part#:92509
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

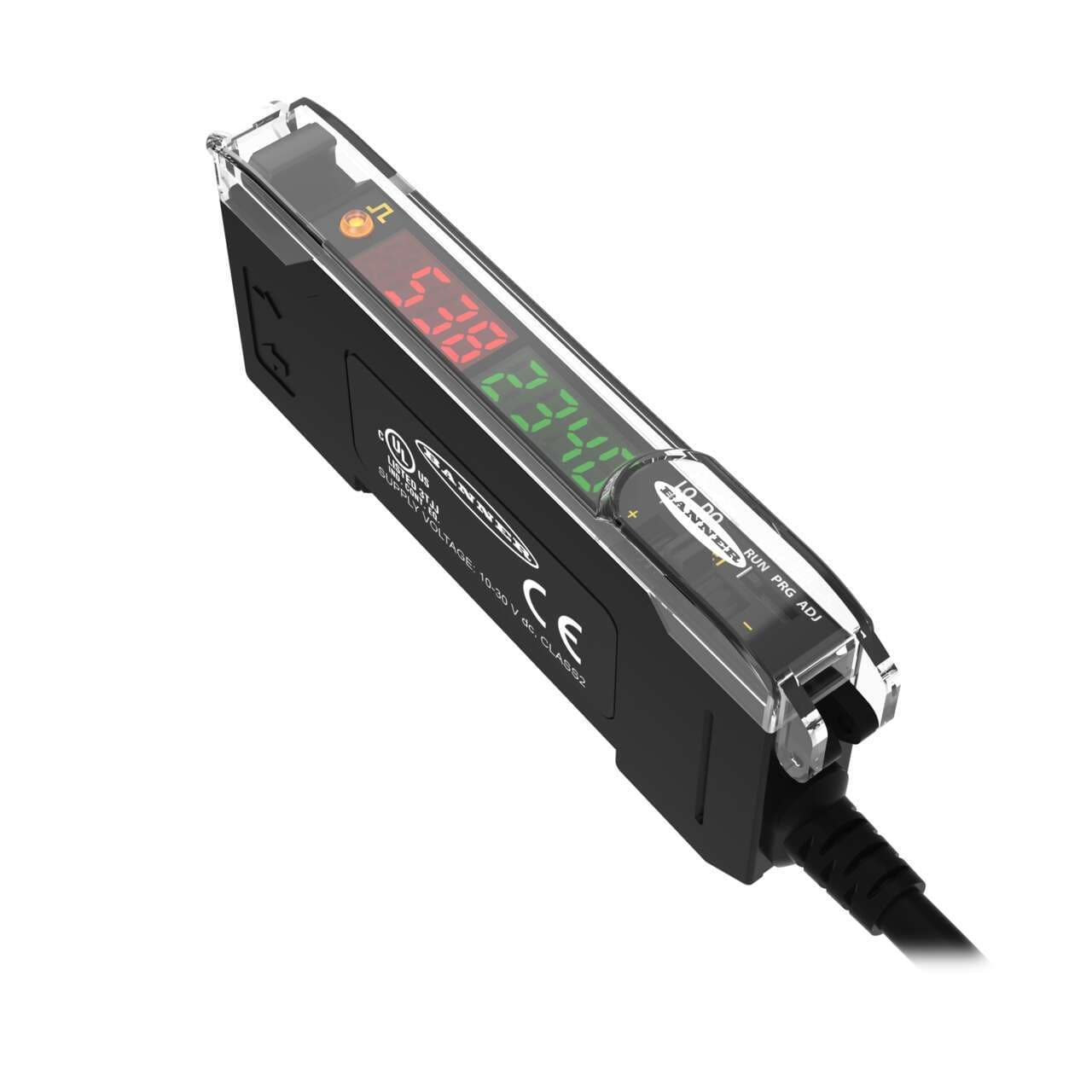

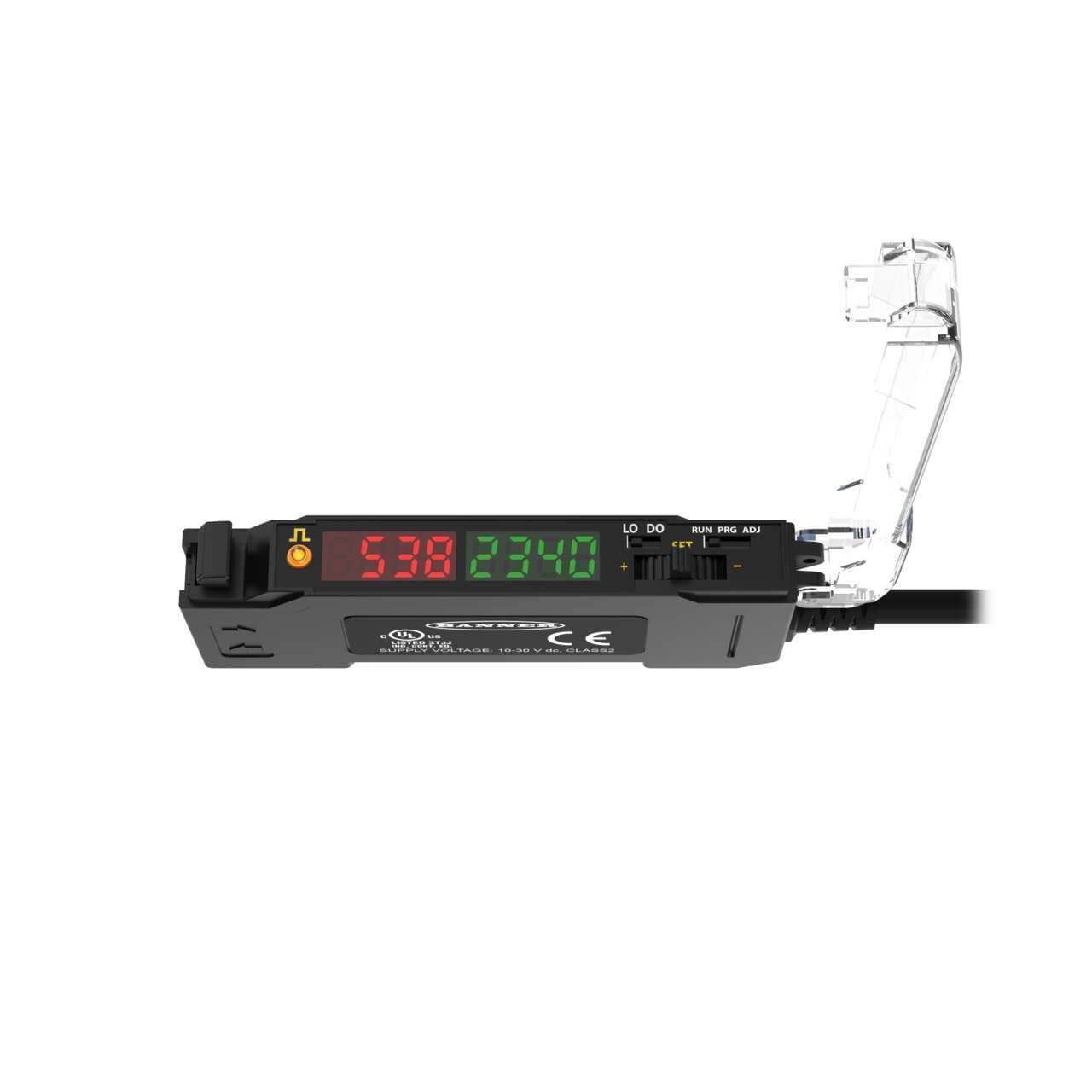

DF-G2 IR Beam High Speed Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 2 m 4-conductor PVC Cable
Product Details
- Weight 31.75144 g
- Country Of Origin CN
- Sub-range name DF-G2 Expert series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP50 NEMA 1
- Product series / family name Fiber optic amplifiers
- Functions High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Wavelength 850 nm
- Compliant with standard(s) cULus CE
- Primary brand Banner Engineering
- Shape Rectangular
- Material thermoplastic housing Glass fiber
- Order code / Manufacturer SKU 92509
- Light Color Infrared (IR)
- Equivalent to DFG2IRPS2M
- Mounting mode DIN rail mounting
- Ambient air temperature for operation -10...+55 °C
- Digital outputs 1 x digital output (PNP transistor)
- Display LED 4 digits x 2 (red + green)
- Main function Amplifier for sensor
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Housing Style DIN Rail
- Min Op. Temperature (°C) -10
- Intrinsically Safe No
- Minimum response time (ms) .01
- Primary Housing Material Thermoplastic
- Number of Pins 4
- Max Op. Relative Humidity (%) 90% @ 60°C
- Feature: Hazardous Area No
- Output PNP
- Max Op. Temperature (°C) 55
- Feature: Timing (Hold/Delay) Yes
- Fiber Type Glass Only
- Special Feature: Remote Teach Yes
- Special Feature: Bussable Power No
- Connection Cable
- NEMA Rating NEMA 1
- Indicator Display Type Dual Digital Displays
- Color LED - Amplifiers Infrared
- IP Rating IP50
- Delay at Power-up (ms) 500
- Application: Registration Mark Yes
- Power DC
- Quick Disconnect Type No QD
- Adjustments Teach Button
- IO Link No
- Input/Output Discrete
- Output Type (Specific) Single Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Audible No
- Cable Length (m) 2
- Repeatability (µs) 5 to 165
- Crosstalk Avoidance Yes
- Housing Material Thermoplastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2IR-PS-2M on Powermatic Associates is $209.00. Order now.
About the product
Banner Engineering DF-G2IR-PS-2M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing and glass fiber material. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits infrared (IR) light with a wavelength of 850 nm and boasts a rapid response time of 10µs (0.00001 s). It features 1 x digital output (PNP transistor) and is shaped rectangularly. As part of the DF-G2 Expert series, it includes high-speed dual-display fiber optic sensor amplifier functions and is designed with TEACH mode for ease of use. The connection is facilitated through a pre-wired 6.5ft / 2m cable terminated with bare end flying leads, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
