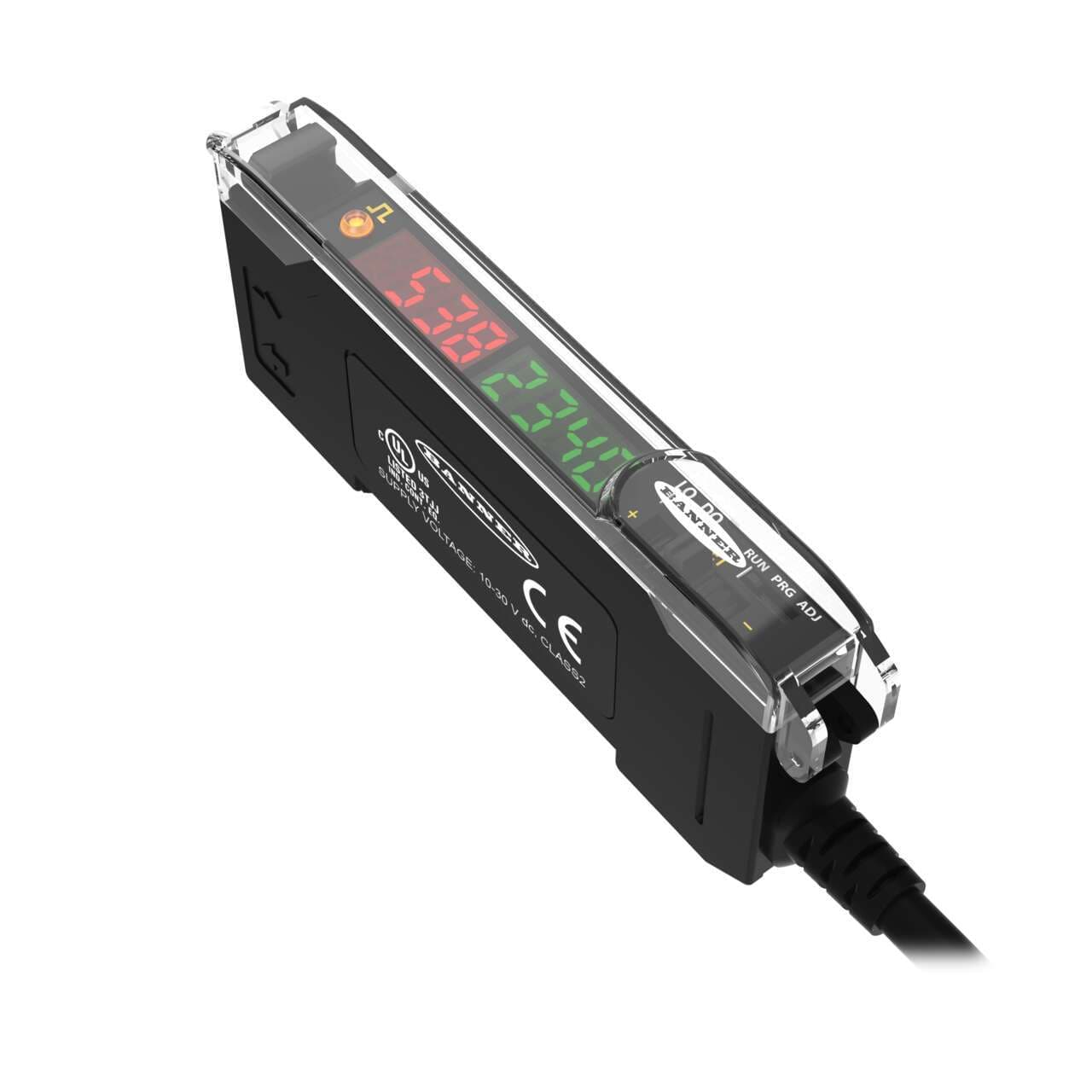

DF-G2W-PS-Q5 Banner Sensor Accessories
Part#:DF-G2W-PS-Q5
Alt. Part#:87619
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G2 White Beam High Speed Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 113.398 g
- Country Of Origin CN
- Product series / family name Fiber optic amplifiers
- Shape Rectangular
- Degree of protection IP50 NEMA 1
- Material thermoplastic housing PVC connector
- Primary brand Banner Engineering
- Display LED 4 digits x 2 (red + green)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -10...+55 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible white
- Main function Amplifier for sensor
- Sub-range name DF-G2 Expert series
- Wavelength 450-650 nm
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cULus CE
- Order code / Manufacturer SKU 87619
- Functions High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Mounting mode DIN rail mounting
- Equivalent to DFG2WPSQ5
- Fiber Type Plastic and Glass
- NEMA Rating NEMA 1
- Delay at Power-up (ms) 500
- Housing Material Thermoplastic
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach Yes
- Feature: Timing (Hold/Delay) Yes
- Color LED - Amplifiers White
- Min Op. Temperature (°C) -10
- Indicator Display Type Dual Digital Displays
- Power DC
- Repeatability (µs) 5 to 165
- Power Supply/Supply Voltage 10-30 V dc
- Application: Registration Mark Yes
- Housing Style DIN Rail
- Number of Pins 4
- Max Op. Temperature (°C) 55
- Minimum response time (ms) .01
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Crosstalk Avoidance Yes
- Feature: Audible No
- Output PNP
- Max Op. Relative Humidity (%) 90% @ 60°C
- Special Feature: Bussable Power No
- Cable Length (m) 0.15
- IP Rating IP50
- Adjustments Teach Button
- Feature: Hazardous Area No
- Connection Pigtail QD
- Intrinsically Safe No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2W-PS-Q5 on Powermatic Associates is $242.00. Order now.
About the product
Banner Engineering DF-G2W-PS-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits visible white light. With a response time of 10µs (0.00001 s) and equipped with 1 x digital output (PNP transistor), it is shaped rectangularly. As part of the DF-G2 Expert series, this high-speed dual-display fiber optic sensor amplifier includes a TEACH mode design. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The supply voltage requirement is 10Vdc-30Vdc (12Vdc / 24Vdc nom.), and it operates within a wavelength range of 450-650 nm.
