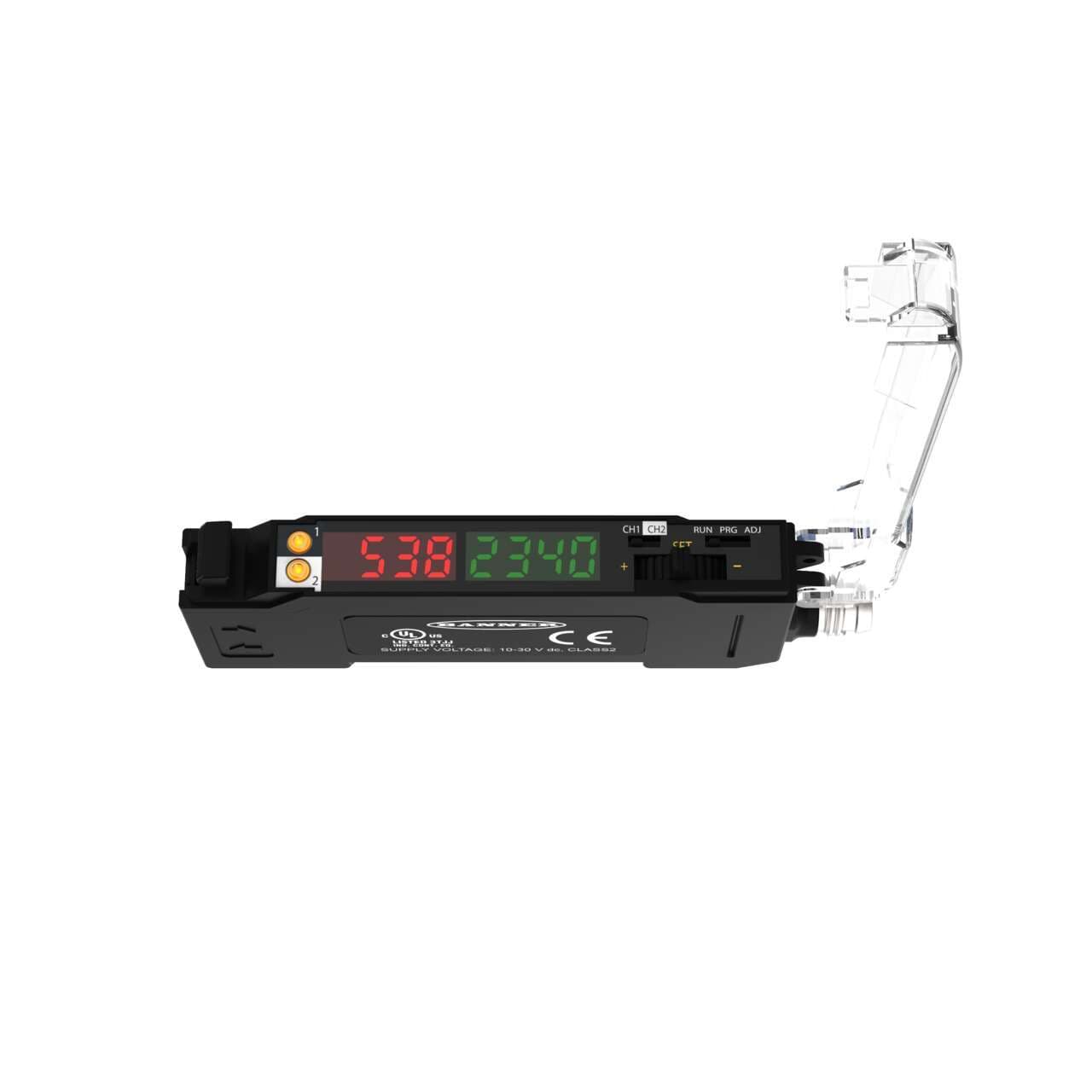

DF-G3-KD-Q7 Banner Sensor Accessories
Part#:DF-G3-KD-Q7
Alt. Part#:97711
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: PNP only; 4-pin M8 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin CN
- Quick Disconnect Type M8 (Pico)
- Min Op. Temperature (°C) -10
- Feature: Audible No
- Input/Output Discrete & Serial
- Max Op. Relative Humidity (%) 90% @ 60°C
- Feature: Hazardous Area No
- Housing Material Thermoplastic
- Color LED - Amplifiers Red
- Number of Pins 4
- Adjustments Teach Button
- Output IO-Link/PNP
- NEMA Rating NEMA 1
- Feature: Timing (Hold/Delay) Yes
- Housing Style DIN Rail
- Crosstalk Avoidance Yes
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Health/ Marginal Signal Output Yes
- Connection Integral QD
- IP Rating IP50
- Intrinsically Safe No
- IO Link Yes
- Power DC
- Repeatability (µs) 100 to 180
- Delay at Power-up (ms) 500
- Minimum response time (ms) .5
- Fiber Type Plastic and Glass
- Max Op. Temperature (°C) 55
- Special Feature: Bussable Power No
- Primary Housing Material Thermoplastic
- Output Type (Specific) IO-Link and Dual Discrete
- Special Feature: Remote Teach Yes
- Indicator Display Type Dual Digital Displays
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-KD-Q7 on Powermatic Associates is $238.00. Order now.
About the product
Banner Engineering DF-G3-KD-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits visible red light with a wavelength of 635 nm and boasts a rapid response time of 0.5ms. It features 2 digital outputs (PNP transistor; complementary NO/NC) and is shaped rectangularly. As part of the DF-G3 Expert series, this high-power, long-range fiber optic sensor amplifier is pre-equipped with a 4-pin Pico-style M8 connector for connectivity. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and supports the IO-Link communication protocol.
