DF-G3-NS-Q5 Banner Sensor Accessories
Part#:DF-G3-NS-Q5
Alt. Part#:87574
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

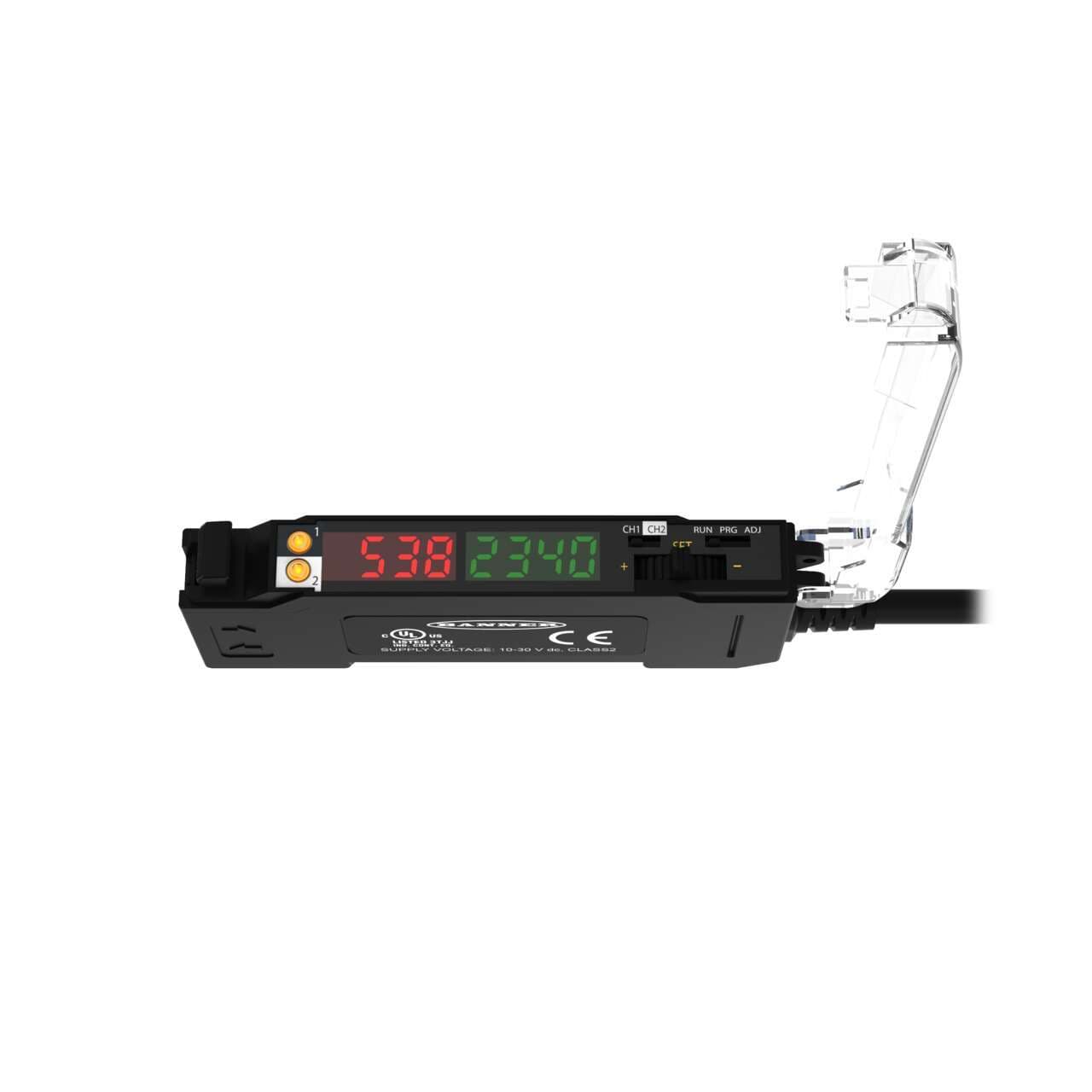

DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 NPN; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Product Details
- Weight 71.8489728 g
- Country Of Origin CN
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach Yes
- Output NPN
- NEMA Rating NEMA 1
- Power Supply/Supply Voltage 10-30 V dc
- IO Link No
- Feature: Audible No
- Housing Style DIN Rail
- IP Rating IP50
- Intrinsically Safe No
- Feature: Hazardous Area No
- Color LED - Amplifiers Red
- Input/Output Discrete
- Max Op. Relative Humidity (%) 90% @ 60°C
- Minimum response time (ms) .5
- Cable Length (m) 0.15
- Repeatability (µs) 50 to 250
- Crosstalk Avoidance Yes
- Power DC
- Number of Pins 4
- Adjustments Teach Button
- Housing Material Thermoplastic
- Fiber Type Plastic and Glass
- Special Feature: Bussable Power No
- Max Op. Temperature (°C) 55
- Connection Pigtail QD
- Min Op. Temperature (°C) -10
- Indicator Display Type Dual Digital Displays
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Delay at Power-up (ms) 500
- Feature: Timing (Hold/Delay) Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-NS-Q5 on Powermatic Associates is $226.00. Order now.
About the product
Banner Engineering DF-G3-NS-Q5 is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It is constructed with a thermoplastic housing and a PVC connector, ensuring durability within an ambient air temperature range of -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. It boasts a rapid response time of 0.5ms / 0.0005 s and includes 1 x digital output (NPN transistor; complementary NO/NC) for versatile connectivity. The DF-G3-NS-Q5, part of the DF-G3 Expert series, is designed with a rectangular shape and incorporates a high-power TEACH mode for enhanced functionality. It connects via a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
