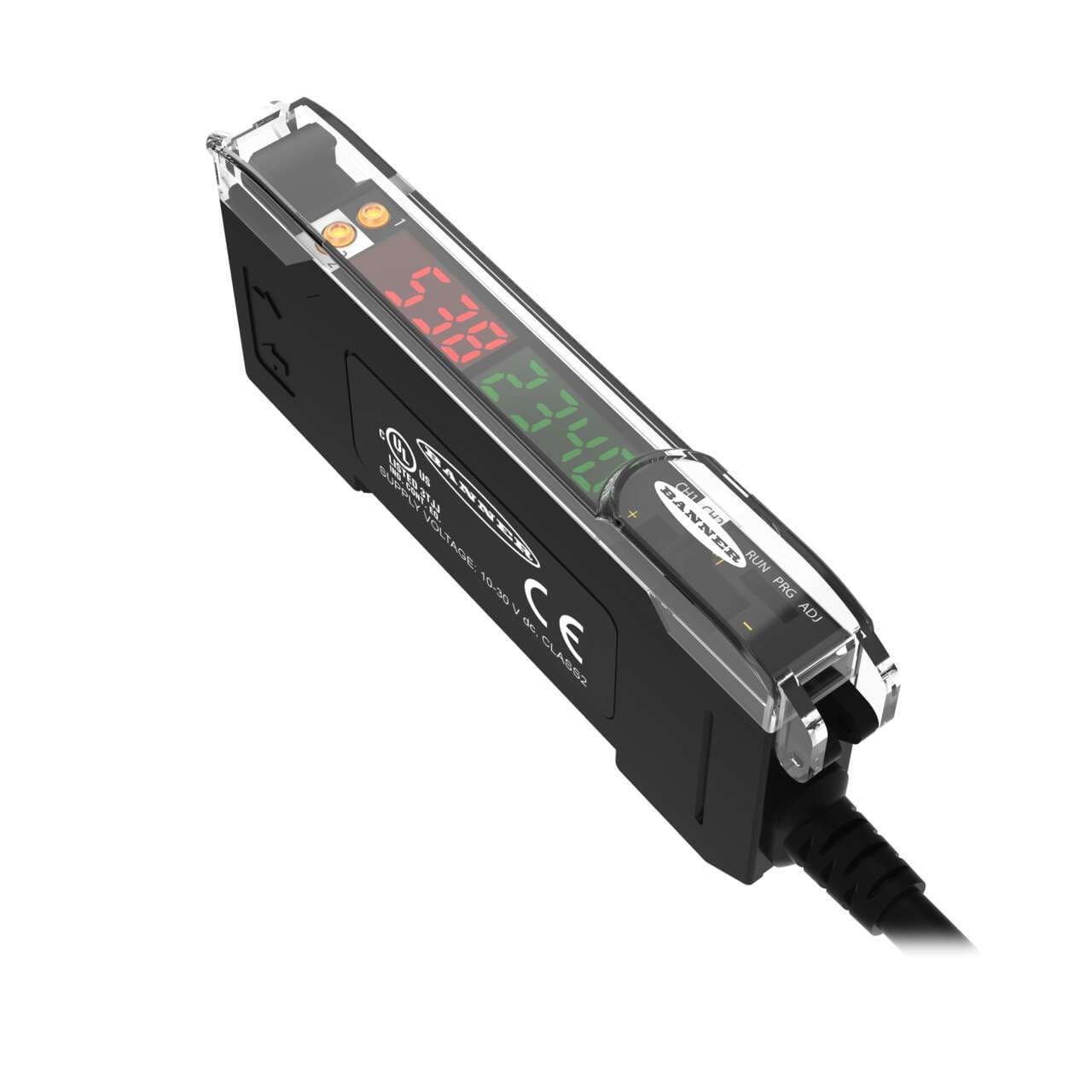

DF-G3-PI-Q3 Banner Sensor Accessories
Part#:DF-G3-PI-Q3
Alt. Part#:87608
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP and 4-20 mA analog; 150 mm (6 in) 5-pin M8 PVC Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Display LED 4 digits x 2 (red + green)
- Light Color Visible red
- Product series / family name Fiber optic amplifiers
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 5-pin Pico-style M8 connector
- Analog outputs 1 x analog output (4-20mA)
- Order code / Manufacturer SKU 87608
- Sub-range name DF-G3 Expert series
- Shape Rectangular
- Wavelength 635 nm
- Equivalent to DFG3PIQ3
- Compliant with standard(s) cULus CE
- Main function Amplifier for sensor
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Mounting mode DIN rail mounting
- Degree of protection IP50 NEMA 1
- Ambient air temperature for operation -10...+55 °C
- Digital outputs 1 x digital output (PNP transistor)
- Material thermoplastic housing PVC connector
- Cable Length (m) 0.15
- Special Feature: Remote Teach Yes
- Repeatability (µs) 100 to 180
- Feature: Hazardous Area No
- Output PNP
- Min Op. Temperature (°C) -10
- Indicator Display Type Dual Digital Displays
- Housing Style DIN Rail
- Color LED - Amplifiers Red
- IP Rating IP50
- Connection Pigtail QD
- Max Op. Temperature (°C) 55
- Crosstalk Avoidance Yes
- Housing Material Thermoplastic
- Fiber Type Plastic and Glass
- NEMA Rating NEMA 1
- Analog Output 4 to 20 mA
- Power DC
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 500
- Primary Housing Material Thermoplastic
- Output Type (Specific) Analog & Discrete
- Intrinsically Safe No
- Feature: Audible No
- Input/Output Analog & Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Minimum response time (ms) .5
- Number of Pins 5
- Max Op. Relative Humidity (%) 90% @ 60°C
- Special Feature: Bussable Power No
- Adjustments Teach Button
- IO Link No
- Feature: Timing (Hold/Delay) Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-PI-Q3 on Powermatic Associates is $284.00. Order now.
About the product
Banner Engineering DF-G3-PI-Q3 is an amplifier designed for sensor applications, featuring a DIN rail mount for easy installation. It is constructed with a thermoplastic housing and a PVC connector, ensuring durability within an ambient air temperature range of -10 to +55°C. This part offers 1 x analog output (4-20mA) and 1 x digital output (PNP transistor; complementary NO/NC), accommodating diverse operational needs. It boasts an IP50 NEMA 1 degree of protection and emits a visible red light with a wavelength of 635 nm. The DF-G3-PI-Q3, part of the DF-G3 Expert series, is specifically designed for long-range fiber optic sensor amplification and features a high-power TEACH mode for enhanced functionality. It connects via a pre-wired 6" / 150mm pigtail terminated with a 5-pin Pico-style M8 connector and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
