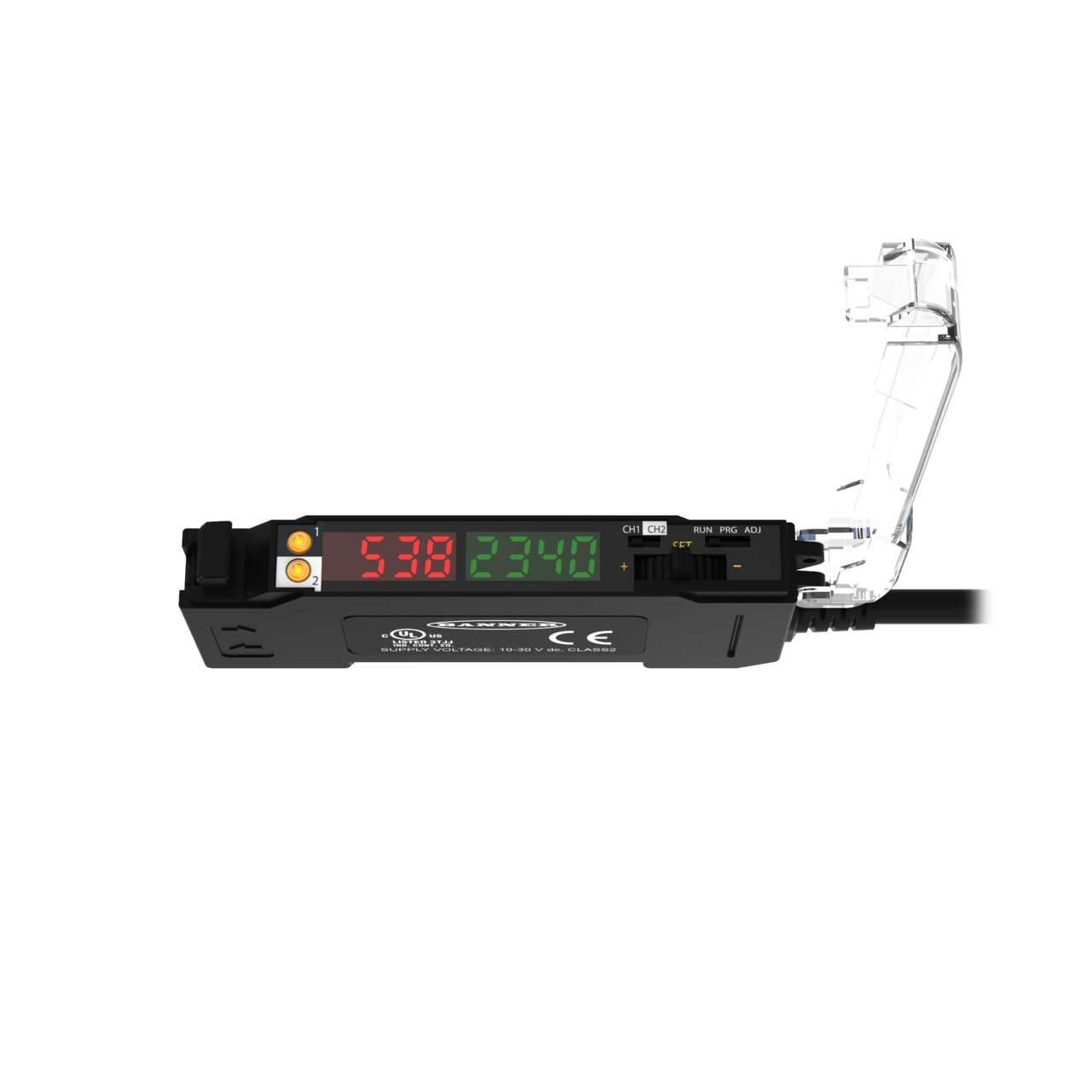

DF-G3-PU-Q3 Banner Sensor Accessories
Part#:DF-G3-PU-Q3
Alt. Part#:87598
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 Red Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 12-30 V dc; Outputs: 1 PNP and 0-10 V dc analog; 150 mm (6 in) 5-pin M8 PVC Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Product series / family name Fiber optic amplifiers
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Material thermoplastic housing PVC connector
- Primary brand Banner Engineering
- Shape Rectangular
- Analog outputs 1 x analog output (0-10Vdc)
- Order code / Manufacturer SKU 87598
- Main function Amplifier for sensor
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 5-pin Pico-style M8 connector
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -10...+55 °C
- Display LED 4 digits x 2 (red + green)
- Wavelength 635 nm
- Mounting mode DIN rail mounting
- Compliant with standard(s) cULus CE
- Sub-range name DF-G3 Expert series
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Light Color Visible red
- Degree of protection IP50 NEMA 1
- Equivalent to DFG3PUQ3
- Cable Length (m) 0.15
- Quick Disconnect Type M8 (Pico)
- NEMA Rating NEMA 1
- Indicator Display Type Dual Digital Displays
- Housing Style DIN Rail
- Delay at Power-up (ms) 500
- Minimum response time (ms) .5
- Color LED - Amplifiers Red
- IP Rating IP50
- Adjustments Teach Button
- Analog Output 0 to 10 V dc
- Input/Output Analog & Discrete
- Output PNP
- Min Op. Temperature (°C) -10
- Power Supply/Supply Voltage 12-30 V dc
- Power DC
- Connection Pigtail QD
- Crosstalk Avoidance Yes
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Output Type (Specific) Analog & Discrete
- Intrinsically Safe No
- IO Link No
- Fiber Type Plastic and Glass
- Max Op. Temperature (°C) 55
- Repeatability (µs) 100 to 180
- Special Feature: Bussable Power No
- Number of Pins 5
- Special Feature: Remote Teach Yes
- Feature: Hazardous Area No
- Max Op. Relative Humidity (%) 90% @ 60°C
- Feature: Timing (Hold/Delay) Yes
- Housing Material Thermoplastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3-PU-Q3 on Powermatic Associates is $284.00. Order now.
About the product
Banner Engineering DF-G3-PU-Q3 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and operates within an ambient air temperature range of -10 to +55°C. This part offers 1 x analog output (0-10Vdc) and 1 x digital output (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It is protected to a degree of IP50 NEMA 1 and emits a visible red light with a wavelength of 635 nm. The DF-G3-PU-Q3, part of the DF-G3 Expert series, is shaped rectangularly and includes a long-range fiber optic sensor amplifier function. It is designed with TEACH mode for high-power applications and comes pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Pico-style M8 connector. The supply voltage requirement is 12Vdc-30Vdc, with 24Vdc nominal.
