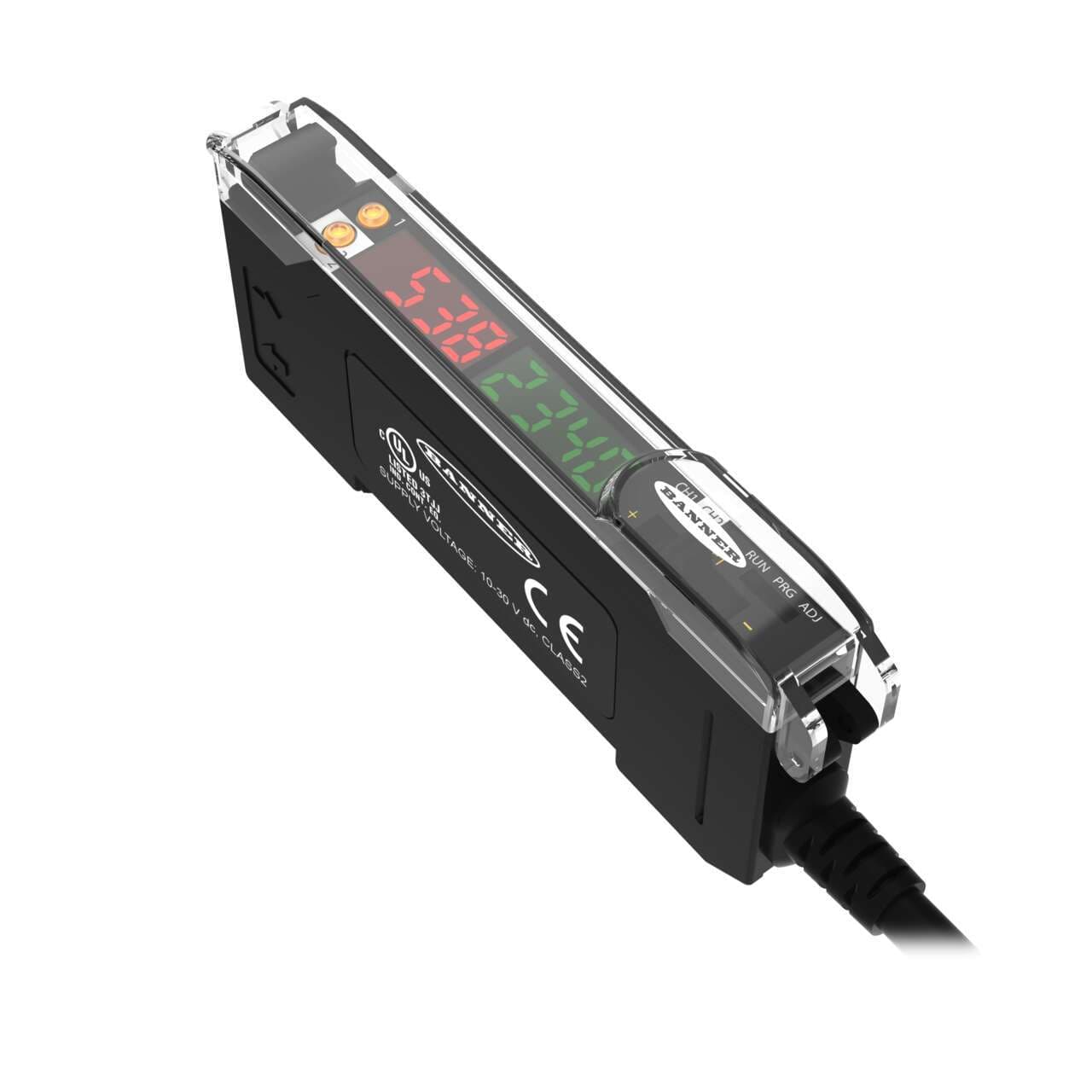

DF-G3IR-PD-Q5 Banner Sensor Accessories
Part#:DF-G3IR-PD-Q5
Alt. Part#:87659
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 2 PNP; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 90.7184 g
- Country Of Origin CN
- Product series / family name Fiber optic amplifiers
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Ambient air temperature for operation -10...+55 °C
- Display LED 4 digits x 2 (red + green)
- Shape Rectangular
- Degree of protection IP50 NEMA 1
- Order code / Manufacturer SKU 87659
- Sub-range name DF-G3 Expert series
- Wavelength 850 nm
- Digital outputs 2 x digital outputs (PNP transistors)
- Primary brand Banner Engineering
- Functions Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
- Main function Amplifier for sensor
- Light Color Infrared (IR)
- Mounting mode DIN rail mounting
- Compliant with standard(s) cULus CE
- Material thermoplastic housing PVC connector Glass fiber
- Equivalent to DFG3IRPDQ5
- Color LED - Amplifiers Infrared
- Number of Pins 5
- Feature: Hazardous Area No
- Output Type (Specific) Dual Discrete
- Cable Length (m) 0.15
- Intrinsically Safe No
- Special Feature: Bussable Power No
- Fiber Type Glass Only
- Min Op. Temperature (°C) -10
- Indicator Display Type Dual Digital Displays
- Input/Output Discrete
- Max Op. Relative Humidity (%) 90% @ 60°C
- Adjustments Teach Button
- Housing Material Thermoplastic
- Output PNP
- Max Op. Temperature (°C) 55
- Delay at Power-up (ms) 500
- IO Link No
- Connection Pigtail QD
- IP Rating IP50
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Health/ Marginal Signal Output Yes
- Housing Style DIN Rail
- Repeatability (µs) 100 to 180
- Crosstalk Avoidance Yes
- Feature: Audible No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach Yes
- Feature: Timing (Hold/Delay) Yes
- Primary Housing Material Thermoplastic
- NEMA Rating NEMA 1
- Minimum response time (ms) .5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3IR-PD-Q5 on Powermatic Associates is $255.00. Order now.
About the product
Banner Engineering DF-G3IR-PD-Q5 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a PVC connector and glass fiber, suitable for ambient air temperatures ranging from -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits infrared light with a wavelength of 850 nm. It is equipped with 2 digital outputs (PNP transistor; complementary NO/NC) and has a rectangular shape. As part of the DF-G3 Expert series, this high-power, long-range fiber optic sensor amplifier is designed for enhanced performance. It comes pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
