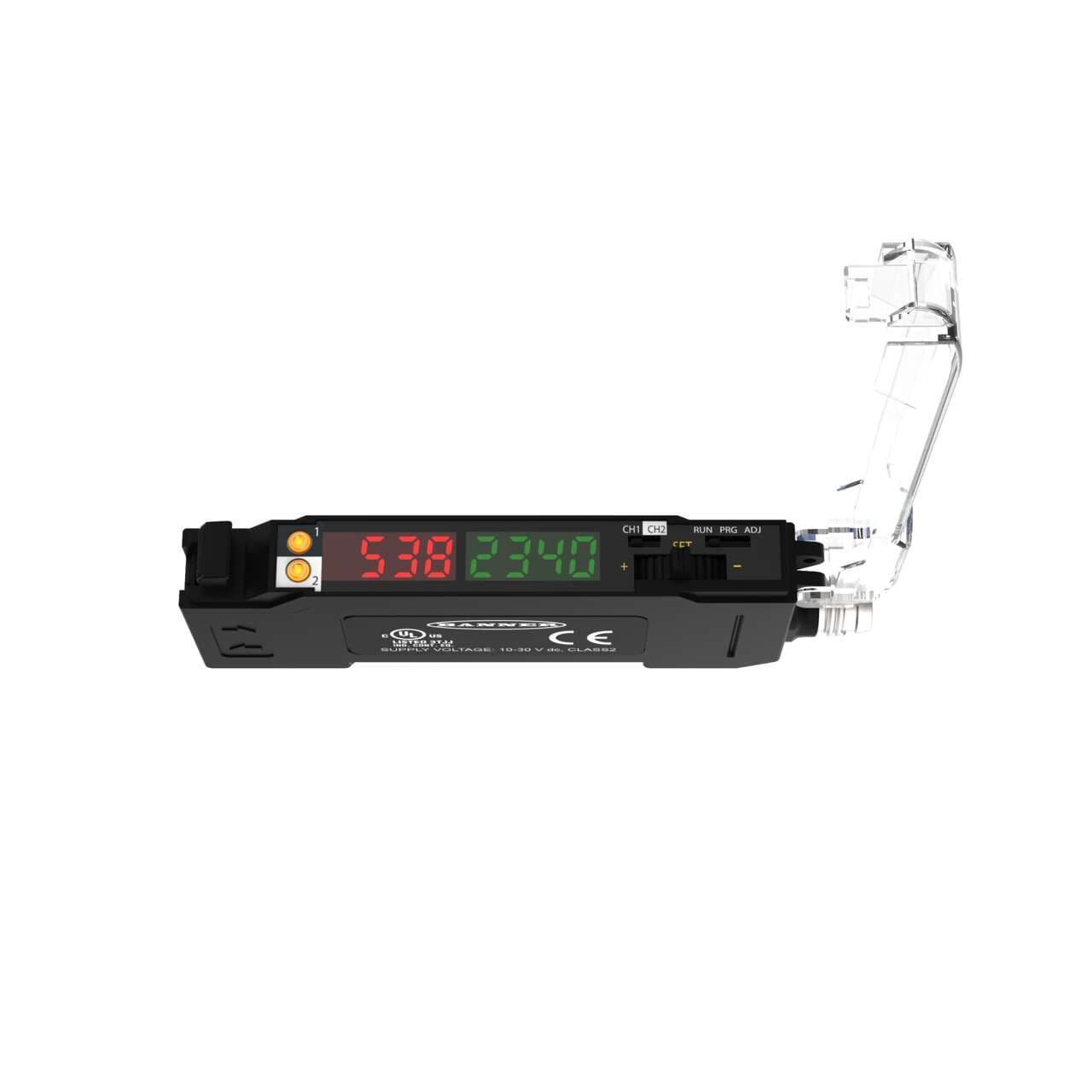

DF-G3IR-PS-Q7 Banner Sensor Accessories

Name: DF-G3IR-PS-Q7
Brand: Banner
Price: 209 USD
Availability: BackOrder

Part#:DF-G3IR-PS-Q7

Alt. Part#:87650

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 4-pin M8 Integral QD

Product Details

Weight
90.7184 g
Country Of Origin
CN
IO Link
No
Housing Material
Thermoplastic
Feature: Health/ Marginal Signal Output
Yes
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Timing (Hold/Delay)
Yes
Delay at Power-up (ms)
500
Special Feature: Bussable Power
No
Power Supply/Supply Voltage
10-30 V dc
Minimum response time (ms)
.5
Indicator Display Type
Dual Digital Displays
Adjustments
Teach Button
Crosstalk Avoidance
Yes
Intrinsically Safe
No
Special Feature: Remote Teach
Yes
NEMA Rating
NEMA 1
IP Rating
IP50
Max Op. Temperature (°C)
55

Number of Pins

Repeatability (µs)

100 to 180

Max Op. Relative Humidity (%)

90% @ 60°C

Min Op. Temperature (°C)

-10

Quick Disconnect Type

M8 (Pico)

Output Type (Specific)

Single Discrete

Housing Style

DIN Rail

Output

PNP

Connection

Integral QD

Input/Output

Discrete

Fiber Type

Glass Only

Color LED - Amplifiers

Infrared

Primary Housing Material

Thermoplastic

Power

Sub-range name

DF-G3 Expert series

Shape

Rectangular

Main function

Amplifier for sensor

Functions

Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)

Material

thermoplastic housing Glass fiber

Product series / family name

Fiber optic amplifiers

Light Color

Infrared (IR)

Display

LED 4 digits x 2 (red + green)

Degree of protection

IP50 NEMA 1

Primary brand

Banner Engineering

Wavelength

850 nm

Equivalent to

DFG3IRPSQ7

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Ambient air temperature for operation

-10...+55 °C

Order code / Manufacturer SKU

87650

Mounting mode

DIN rail mounting

Connection type

Pre-equipped with 4-pin Pico-style M8 connector

Compliant with standard(s)

cULus CE

Digital outputs

1 x digital output (PNP transistor)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G3IR-PS-Q7 on Powermatic Associates is $209.00. Order now.

About the product

Banner Engineering DF-G3IR-PS-Q7 is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with glass fiber, suitable for ambient air temperatures ranging from -10 to +55°C. This part offers a degree of protection rated at IP50 NEMA 1 and emits infrared light with a wavelength of 850 nm. It is equipped with 1 x digital output (PNP transistor; complementary NO/NC) and is designed for long-range fiber optic sensor amplification. The DF-G3IR-PS-Q7, part of the DF-G3 Expert series, is characterized by its high-power design and comes pre-equipped with a 4-pin Pico-style M8 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
