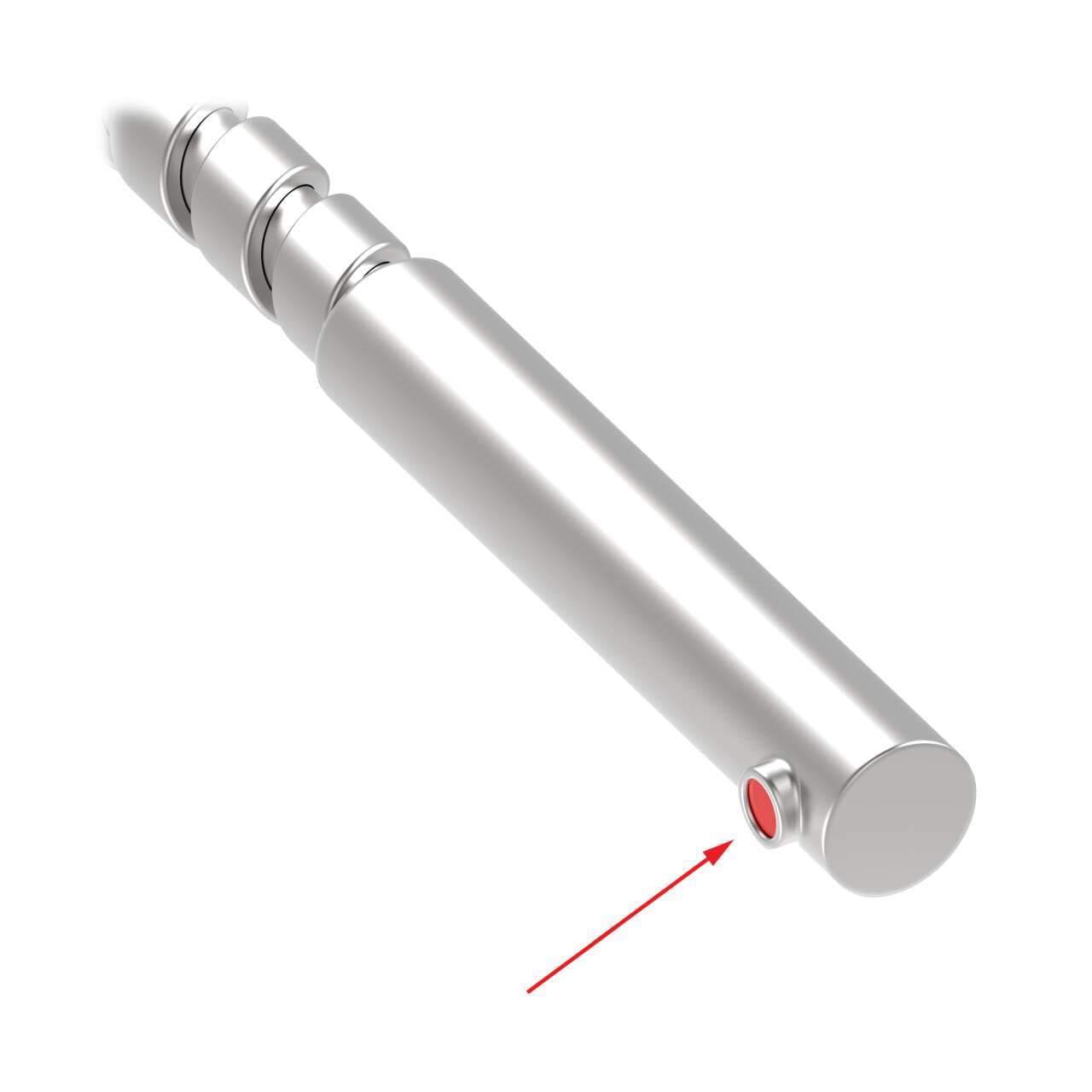

IA1.53SMTA Banner Fiber Optic Sensors

Product Details

• Weight
  78.471416 g
• Country Of Origin
  US
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  1597
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Measured Max Distance (mm)
  No Data
• Termination Type
  Glass Fiber Sensors
• Application: Vacuum Feed Through
  None
• Feature: Chemical Resistant
  No
• Integrated Lens
  No
• Application: Liquid Level
  No
• Max Temp ( °C)
  249
• Minimum Bend Radius (mm)
  25
• Core Diameter (mm)
  2.3
• Sensing End Material (Specific)
  Stainless Steel
• Fiber Sensing End Size - Mounting Area
  6.4 mm
• Termination
  Terminated
Sensing End Segment 2
Sideview
Sensing End Segment 1
Ferrule
Flex Relief
No
Retractile
No
Fiber Sensing End Size
6.4 mm
Fiber Sensing End Tip
Sideview
Fiber Length (m)
0.914
Beam Exit
Right Angle
Housing Style
Round
Sensing Mode (General)
Opposed
Fiber Optic Type
Glass
Quantity Included
1
Sensing Mode (Detailed)
Reflective
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Primary brand
Banner Engineering
Length
3ft / 910mm
Product series / family name
Fiber sensors
Sub-range name
Glass fiber series
Order code / Manufacturer SKU
21056
Design
through-beam system / opposed mode Individual fiber
Main function
Fiber sensor
Shape
Rectangular
Functions
Fiber optic sensor
Ambient air temperature for operation
+249 °C
Dimensions
35x7mm sensing area
Diameter
2.3mm fiber core
Material
Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
