IMT.752S-HT Banner Fiber Optic Sensors
Part#:IMT.752S-HT
Alt. Part#:810004
Manufacturer:Banner
Category:Fiber Optic Sensors
Product Lifecycle:Active
Product description

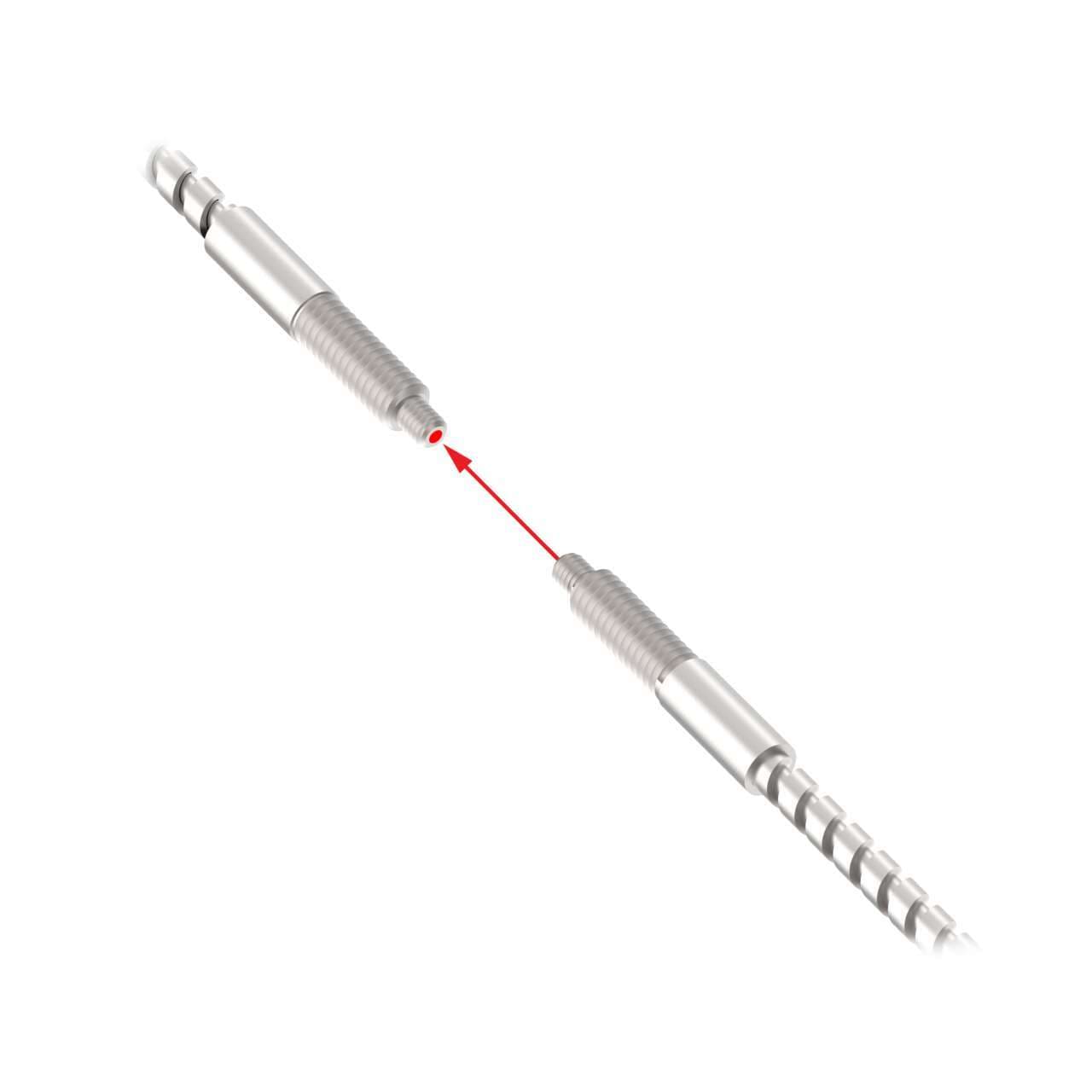

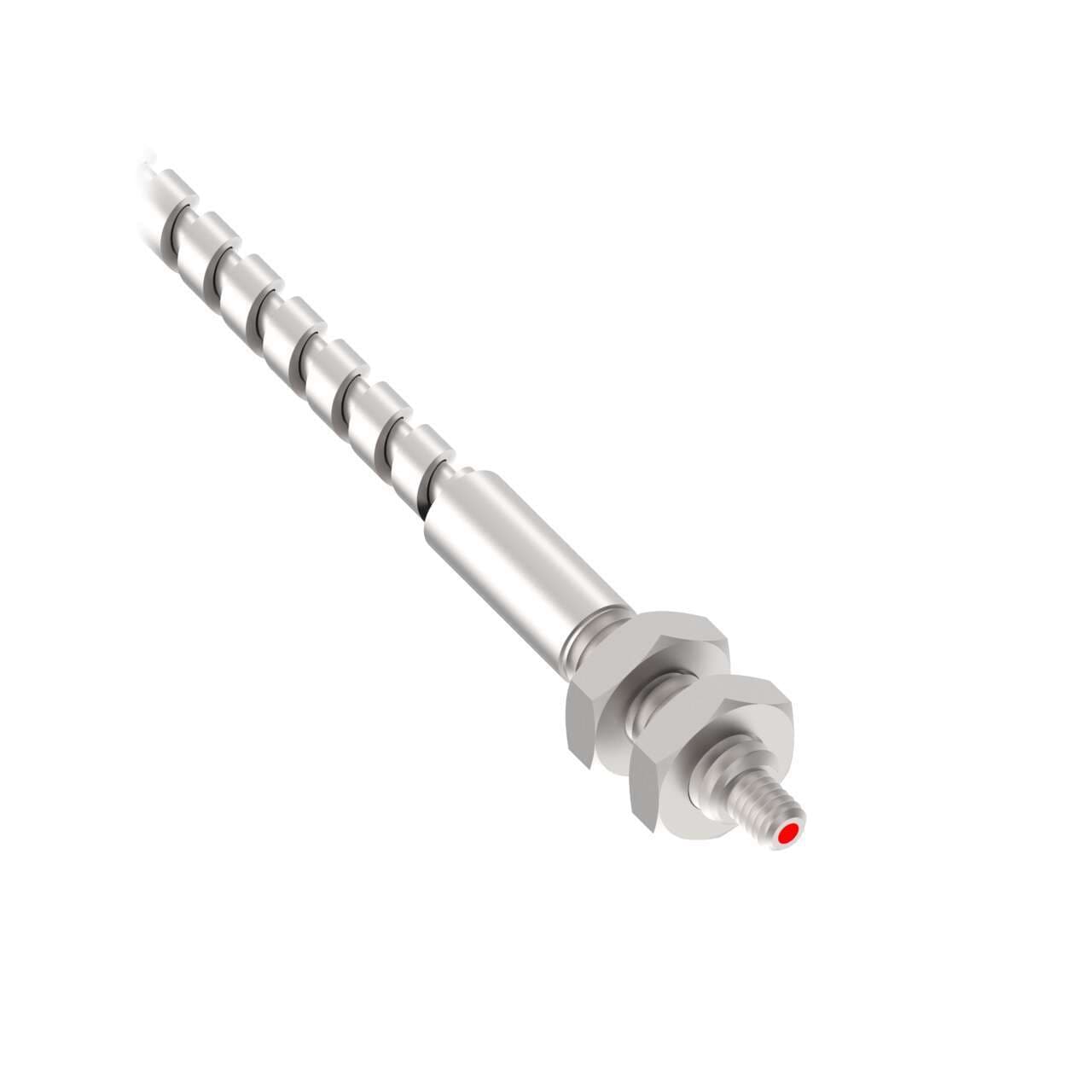

Glass Fiber Opposed Mode 0.61 m long; 1.27 mm dia. Bundle; Stainless Steel Sheath; M4 & M2.5 Thread; Terminated for use in Plastic Fiber Sensors; Max. Operating Temperature 315C at Threaded Tip
Product Details
- Weight 46.49318 g
- Country Of Origin US
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Max Distance: DF-G1 (mm) 760
- Termination Terminated
- Sensing End Material (Specific) Stainless Steel
- Integrated Lens No
- Sensing Mode (General) Opposed
- Sensing Mode (Detailed) Reflective
- Quantity Included 1
- Sensing End Segment 1 Thread
- Max Distance: DF-G3 (mm) No Data
- Termination Type Plastic Fiber Sensors
- Tariff Fiber Meters (fbm) 316
- Measured Max Distance (mm) 1118
- Application: Liquid Level No
- Application: Vacuum Feed Through None
- Feature: Small Object Detection No
- Max Temp ( °C) 315
- Sensing End Segment 2 Thread
- Core Diameter (mm) 1.3
- Feature: Chemical Resistant No
- Minimum Bend Radius (mm) 25
- Fiber Sensing End Size M2.5
- Fiber Length (m) .61
- Beam Exit In-line
- Fiber Sensing End Size - Mounting Area M4
- Flex Relief No
- Retractile No
- Fiber Sensing End Tip Thread
- Fiber Optic Type Glass
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IMT.752S-HT on Powermatic Associates is $276.00. Order now.
About the product
Banner Engineering IMT.752S-HT is a fiber optic sensor from the Plastic fiber series, designed with a through-beam system for opposed mode in-line sensing. It features a cylindrical (threaded) end tip with a 1.27mm fiber core diameter and a total length of 61cm. This sensor is suitable for DIN rail mounting, with dimensions including a net height of 84 mm, a net width of 23 mm, and a net depth of 118 mm. It is capable of operating in ambient air temperatures up to +315°C.
