Part#:IRSE1.83S

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Banner Engineering IRSE1.83S is a fiber sensor belonging to the Glass fiber series, designed for through-beam system / opposed mode flexible fiber individual fiber in-line sensing. It features a 47x9.7mm sensing area with a cylindrical (smooth) end tip. The sensing end is made of stainless steel, while the fiber itself is glass, encased in stainless flexible tubing fiber sheath. The total length of the fiber is 3ft / 910mm, with a fiber core diameter of 2.87mm. It is designed to operate in ambient air temperatures up to +249°C.

Product Details

  • Functions
    Fiber optic sensor
  • Length
    3ft / 910mm
  • Product series / family name
    Fiber sensors
  • Dimensions
    47x9.7mm sensing area
  • Ambient air temperature for operation
    +249 °C
  • Main function
    Fiber sensor
  • Diameter
    2.87mm fiber core
  • Order code / Manufacturer SKU
    804347
  • Primary brand
    Banner Engineering
  • Shape
    Cylindrical (smooth) probe tip
  • Design
    through-beam system / opposed mode Individual fiber
  • Sub-range name
    Glass fiber series
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Sensing Mode (Detailed)
    Array
  • Retractile
    No
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Max Distance: DF-G1 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    2478
  • Max Distance: DF-G2 (mm)
    No Data
  • Quantity Included
    1
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Fiber Sensing End Tip
    Array
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Optic Type
    Glass
  • Sensing Mode (General)
    Opposed
  • Beam Exit
    Right Angle
  • Sensing End Segment 1
    Ferrule
  • Fiber Sensing End Size
    7.1 mm
  • Sensing End Segment 2
    Sideview
  • Fiber Length (m)
    0.914
  • Sensing End Segment 3
    Array
  • Housing Style
    Round
  • Array Length (mm)
    50.8
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    2.9
  • Flex Relief
    No
  • Termination
    Terminated
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    249
  • Feature: Extended Range
    No
  • Feature: Small Object Detection
    Yes
  • Fiber Sensing End Size - Mounting Area
    7.1 mm
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IRSE1.83S Related Documents

Banner Engineering - Glass Fiber series - Catalog.pdf

Similar products from: Banner Electronic Components

T18SP6R on Powermatic Associates

T18SP6R

Banner

Banner Engineering T18SP6R is a photo-electric sensor designed for through-beam system applications, part of the T18 series. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It features a pre-wired connection with a 6.5ft / 2m cable ending in bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. The T18SP6R offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance is up to 20m, utilizing infrared light with a wavelength of 950 nm. It has a quick response time of 3ms / 0.003 s and supports both Light-ON and Dark-ON operating modes.

4 in stock
WLAW360X180DQ on Powermatic Associates

WLAW360X180DQ

Banner

Banner Engineering WLAW360X180DQ is an industrial LED area light designed with a diffused window for 1-color Cool White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this task light are L180mm x W360mm, featuring an acrylic diffused window and PBT housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The rectangular-shaped light offers a degree of protection rated at IP67 and IP69K, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -20°C to +50°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

4 in stock
T18SN6R W/30 on Powermatic Associates

T18SN6R W/30

Banner

Banner Engineering T18SN6R W/30 is a photo-electric sensor designed as part of the T18 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. This model boasts an IP67, IP69K, and NEMA 6P degree of protection, ensuring durability in various environmental conditions. The T18SN6R W/30 has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (NPN transistor), and offers a sensing distance of up to 20m. It utilizes infrared light with a wavelength of 950 nm and has a response time of 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.

1 in stock

Manufacturer warranty

IRSE1.83S Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare IRSE1.83S with other Electronic Components products

Functions

Length

Product series / family n...

Dimensions

Ambient air temperature f...

Main function

Diameter

Order code / Manufacturer...

Primary brand

Shape

Selected product

IRSE1.83S
Backordered
IRSE1.83S
Banner

Banner Engineering IRSE1.83S is a fiber sensor belonging to the Glass fiber series, designed for thr...

FunctionsFiber optic sensor

Length3ft / 910mm

Product series / family nameFiber sensors

Dimensions47x9.7mm sensing area

Ambient air temperature for operation+249 °C

Main functionFiber sensor

Diameter2.87mm fiber core

Order code / Manufacturer SKU804347

Primary brandBanner Engineering

ShapeCylindrical (smooth) probe t...

T18SP6R
4 in stock
T18SP6R
Banner

Banner Engineering T18SP6R is a photo-electric sensor designed for through-beam system applications,...

FunctionsPhoto-electric sensor receiv...

Length-

Product series / family nameEZ-BEAM series

Dimensions-

Ambient air temperature for operation-40...+70 °C

Main functionSensor (Photo-electric)

Diameter-

Order code / Manufacturer SKU-

Primary brandBanner Engineering

ShapeCylindrical smooth

HBL4550RT
5 in stock

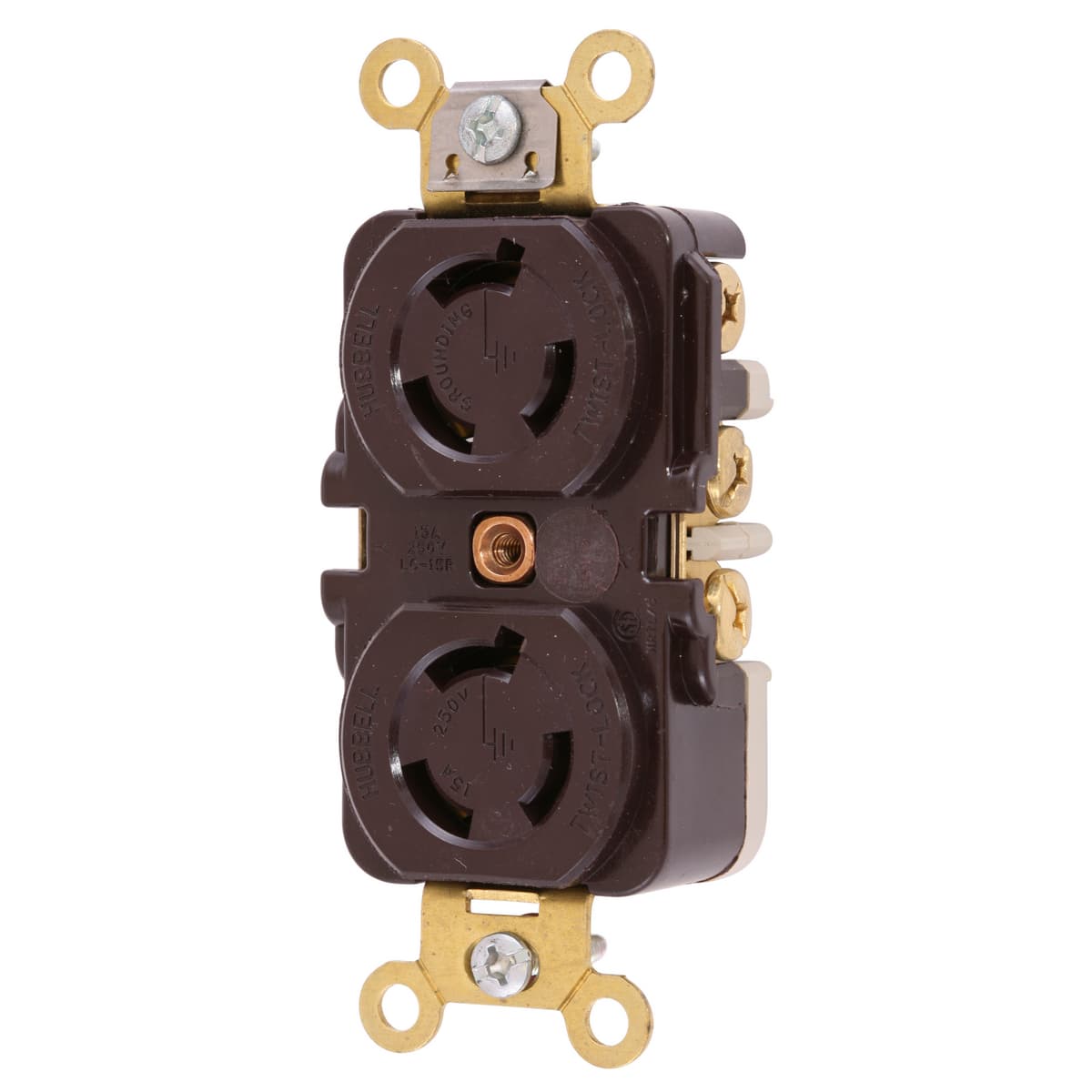

HBL4550RT
