IVU2PTCXC Banner Barcode Readers

IVU2PTCXC on Powermatic Associates
Banner
  • IVU2PTCXC
  • IVU2PTCXC

Part#:IVU2PTCXC

Alt. Part#:804377

Manufacturer:Banner

Category:Barcode Readers

Product Lifecycle:Active

Product description

iVu Color Vision Sensor with Integrated Screen; For Use with C-Mount Lens, No Ring Light; Requires Power Cordset, Bracket and C-Mount Lens; Ethernet and USB Cordset Optional

Product Details

  • Weight
    544.3104 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVU2PTCXC on Powermatic Associates is $2,223.00. Order now.

About the product

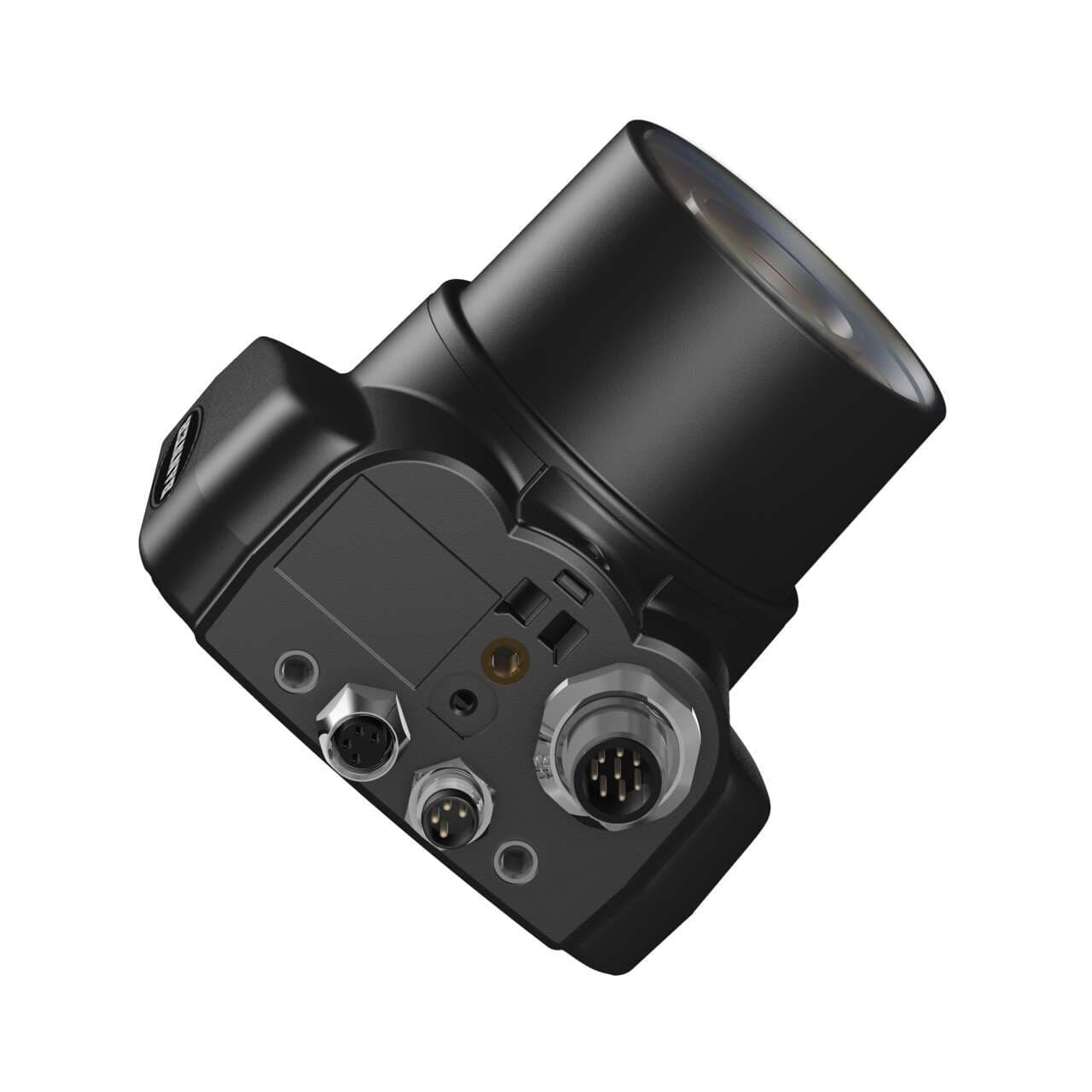

Banner Engineering IVU2PTCXC is a color image vision sensor featuring a 0.36 Megapixel resolution and a built-in touchscreen, capable of storing up to 30 inspections. It is housed in a black thermoplastic casing and is designed for C-mounting. This sensor is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, a 4-pin M8 female connector for USB, and a 4-pin M8 male connector for Ethernet connectivity. It supports Ethernet/IP, Modbus TCP, RS-232, and PROFINET communication protocols. The IVU2PTCXC operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It has a net height of 79 mm, a width of 81 mm, and a depth of 52 mm. The sensor operates efficiently in ambient air temperatures ranging from 0 to +45°C and offers a degree of protection rated at IP67. It features a single digital output (PNP/NPN transistor) and delivers a refresh rate of 60 frames per second.

IVU2PTCXC Related Documents

178442.pdf

Manufacturer warranty

IVU2PTCXC Banner

$2,223.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$2,223.00

$2,223.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
