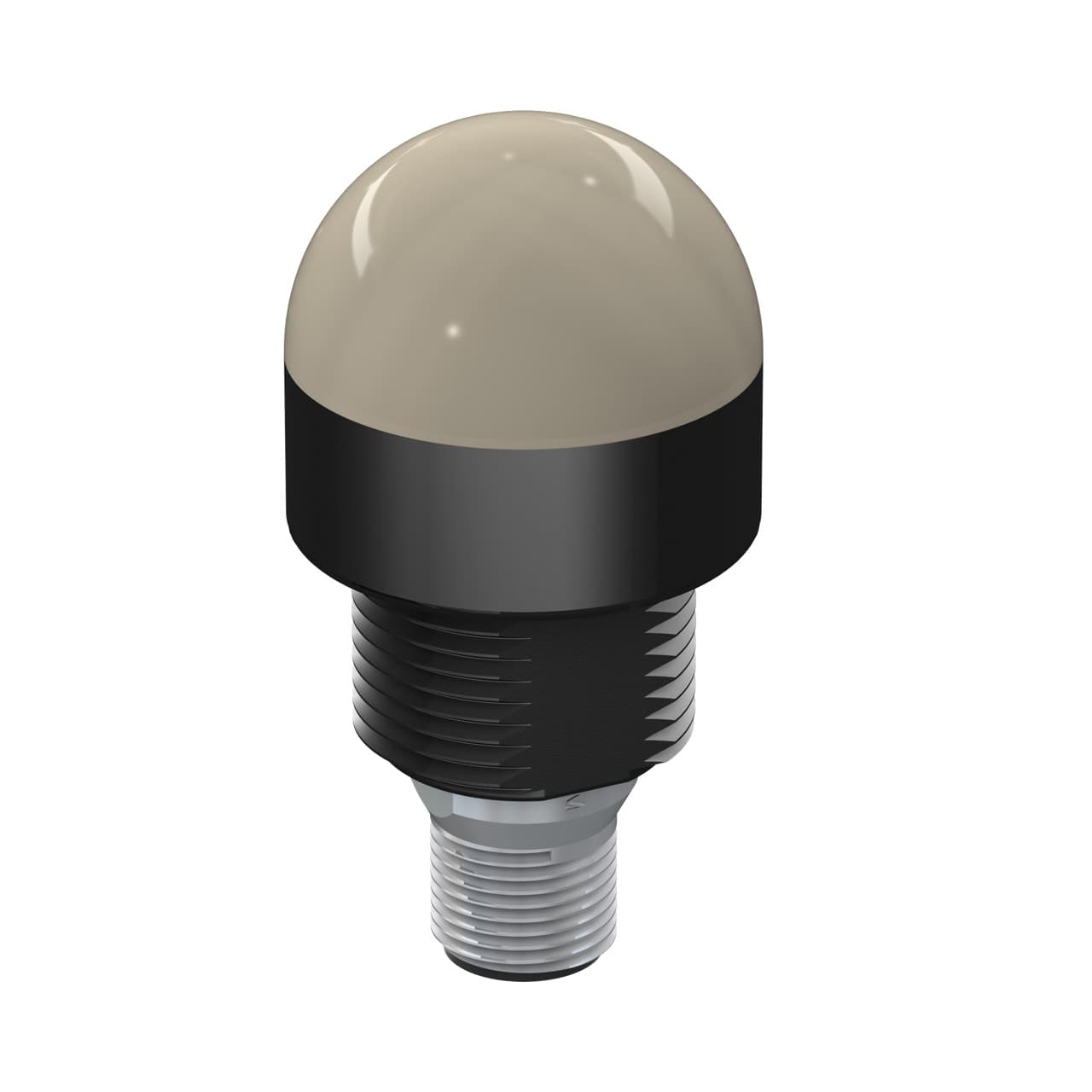

K30LVXXPQ Banner Electronic Components

Product Details

• Primary Housing Material
  Polycarbonate
• Max Current Color (mA)
  25
• Primary Housing Color
  Black
• IO Link
  No
• Power Source
  DC
• Color Option 1
  Violet
• Max Input Response Time (ms)
  1
• Storage Temp (°C)
  -40 to 70
• Wireless
  No
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Color Technology
  Standard LED
• NEMA Type and UL Type Rating
  UL 4X, 13
• Feature: Hazardous Area
  No
• Indication
  Yes
• Quick Disconnect Type
  M12 (Euro)
• Environmental Rating
  IP67; IP69
• Modbus RTU
  No
• Mounting Thread
  M22 x 1.5
• Supply Voltage
  10-30 V dc
• Max Op. Temperature (°C)
  50
Multi-Color Device
Single Color On
Product Size (mm)
30
Input Type
PNP
Min Op. Temperature (°C)
-40
Feature: Quick Disconnect
Yes
Power
DC
Connection
Integral QD
Feature: Washdown Rated
Yes
Primary Window Material
Polycarbonate Diffused
Number of Colors / Segments
1
Number of Input Pins/Conductors
4
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Chemical Resistant
No
Housing Style
Base Mount - Dome Window
Animation Option 1
Solid On
Physical Dimensions (LxWxH or DxH mm)
30.0 x 57.0
Feature: Audible
No
Pro-Editor Compatible (Discrete)
No
