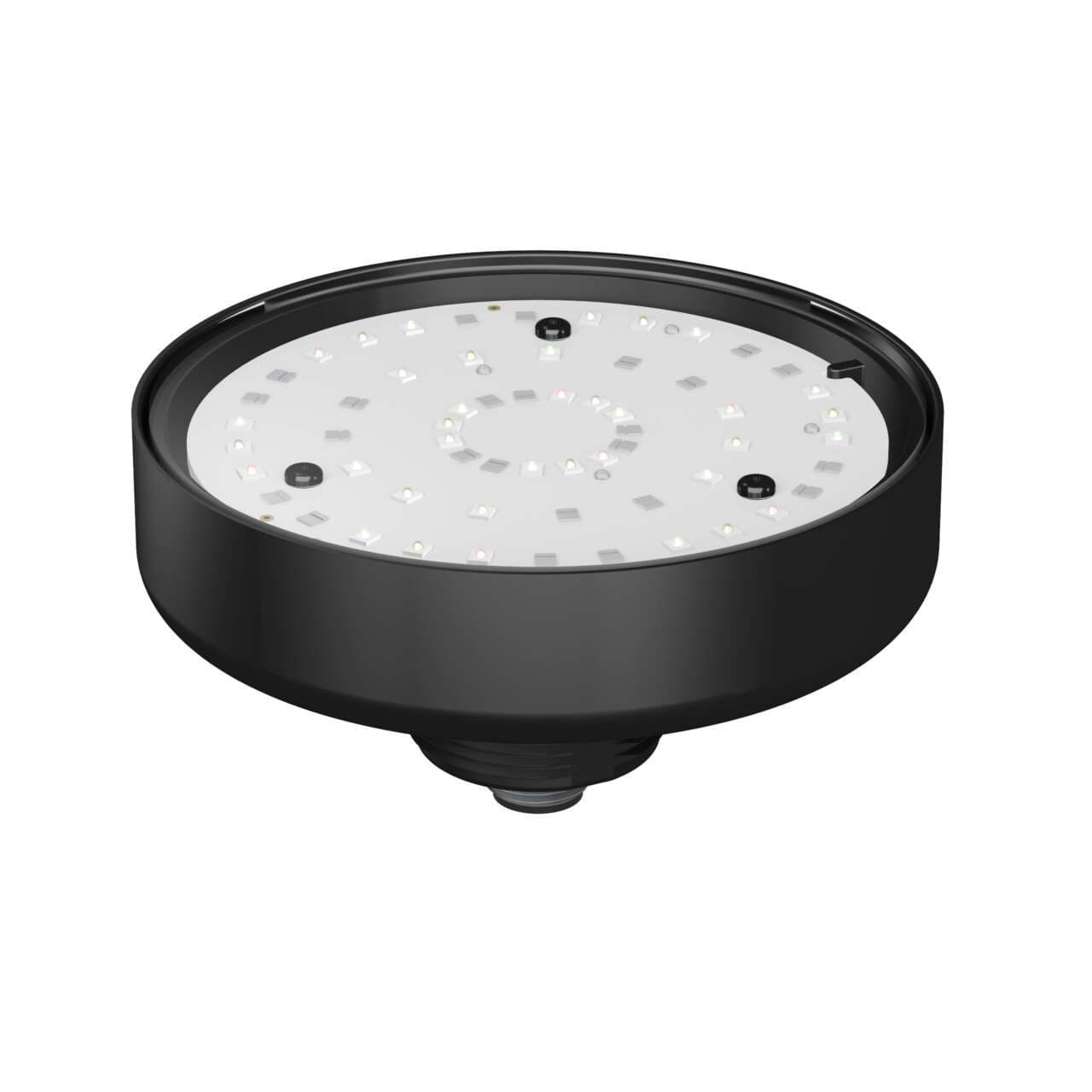

K90FDLGRPQ Banner Signal Beacons
Part#:K90FDLGRPQ
Alt. Part#:96152
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
K90F Series EZ-LIGHT; 2-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 217.72416 g
- Country Of Origin MX
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- Multi-Color Device Single Color On
- Feature: Quick Disconnect Yes
- IO Link No
- Indication Intensity High Brightness & Daylight Visible
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Audible No
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- NEMA Type and UL Type Rating NEMA 4X, 13
- Primary Window Material Polycarbonate Clear
- Environmental Rating IP67
- Max Input Response Time (ms) 75
- Input Type PNP
- Supply Voltage 12-30 V dc
- Number of Input Pins/Conductors 5
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 2 Red
- Lumens Color 2 83.0
- Max Current Color (mA) 475
- Wire Selectable Function Flashing
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Color Technology Standard LED
- Lumens Color 1 175
- Animation Option 1 Solid On
- Product Size (mm) 90
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 2
- Indication Yes
- Power Source DC
- Mounting Thread M30 x 1.5
- Color Option 1 Green
- Power DC
- Cable Length (m) 0.15
- Primary Housing Material Polycarbonate
- Housing Style Base Mount - Flat Window
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K90FDLGRPQ on Powermatic Associates is $173.00. Order now.
About the product
Banner Engineering K90FDLGRPQ is a pilot light from the EZ-LIGHT series designed with a flat LED pilot light indicator featuring flashing input control. It offers daylight-visible 2-color G/R color pattern LED illumination housed in a black casing. The round flat window shape is constructed from clear Polycarbonate (PC) with a Polycarbonate (PC) base for durability. This unit is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and can be mounted on the surface, base, or pole flush with a 30mm hole M30 thread. The light area has a diameter of 90mm, and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a degree of protection rated at IP67, NEMA 4X, and NEMA 13, with a current consumption of 475mA. Additionally, it features 2 x digital inputs (12-30Vdc; PNP) for color control.
