Powermatic Associates Logo

K90LORPQ Banner Signal Beacons

K90LORPQ on Powermatic Associates
Banner
  • K90LORPQ
  • K90LORPQ

Part#:K90LORPQ

Alt. Part#:807942

Manufacturer:Banner

Category:Signal Beacons

Product Lifecycle:Active

Product description

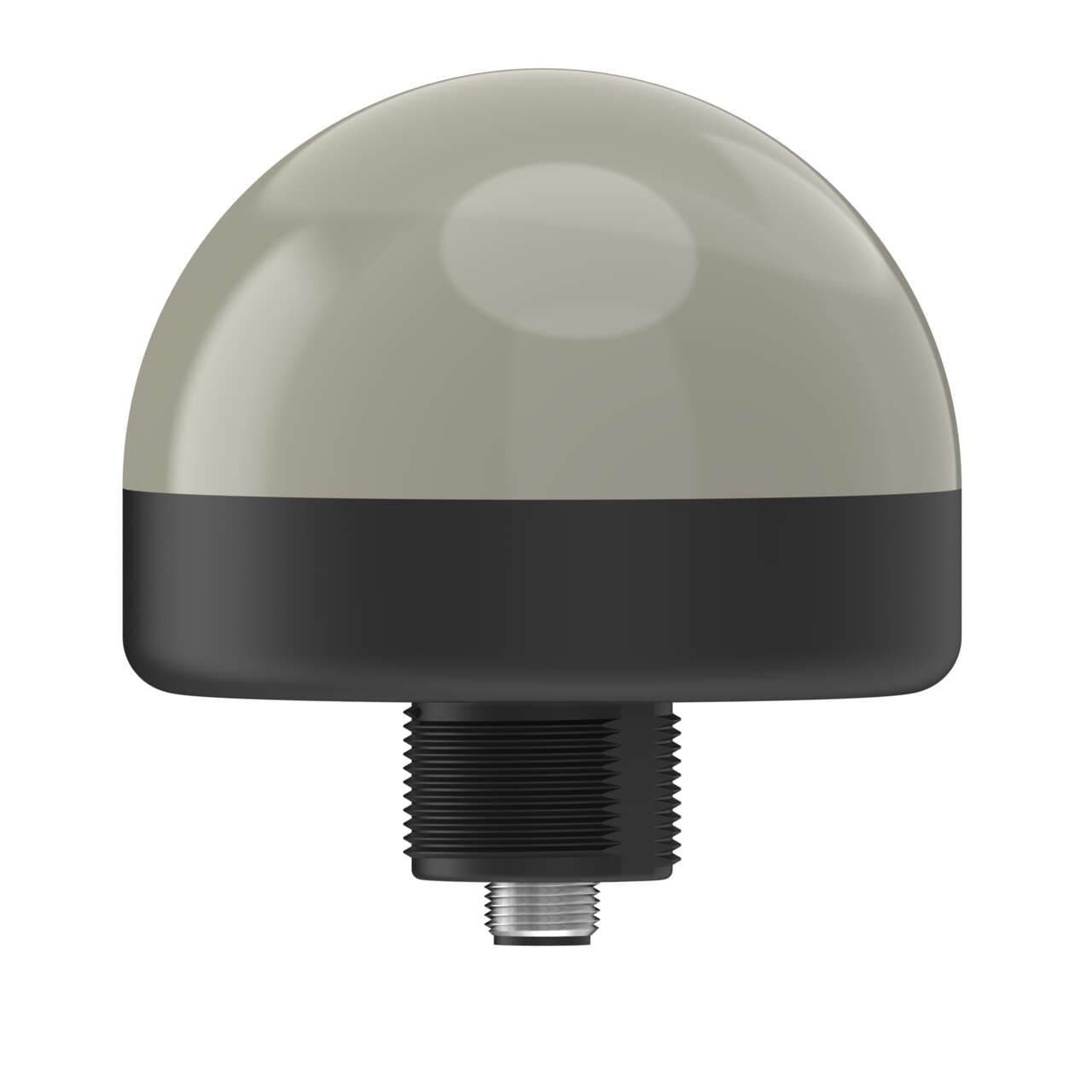

K90 Series EZ-LIGHT; 2-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Orange (Blended) Red; 5-pin M12 Integral QD

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Hazardous Area
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Chemical Resistant
    No
  • Min Op. Temperature (°C)
    -40
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Environmental Rating
    IP67
  • Max Input Response Time (ms)
    75
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    12-30 V dc
  • Input Type
    PNP
  • Number of Input Pins/Conductors
    5
  • Wire Selectable Function
    Flashing
  • Max Current Color (mA)
    475
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    65.0
  • Color Option 2
    Red
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Color Option 1
    Orange
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Product Size (mm)
    90
  • Number of Colors / Segments
    2
  • Cable Length (m)
    0.15
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Indication
    Yes
  • Power
    DC
  • Power Source
    DC
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K90LORPQ on Powermatic Associates is $173.00. Order now.

About the product

Banner Engineering K90LORPQ is a pilot light from the EZ-LIGHT series designed with a 3-color G/Y/R color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. The K90LORPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it includes 3 x digital inputs (12-30Vdc; PNP) for color control.

K90LORPQ Related Documents

181765.pdf

Manufacturer warranty

K90LORPQ Banner

$173.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$173.00

$173.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
