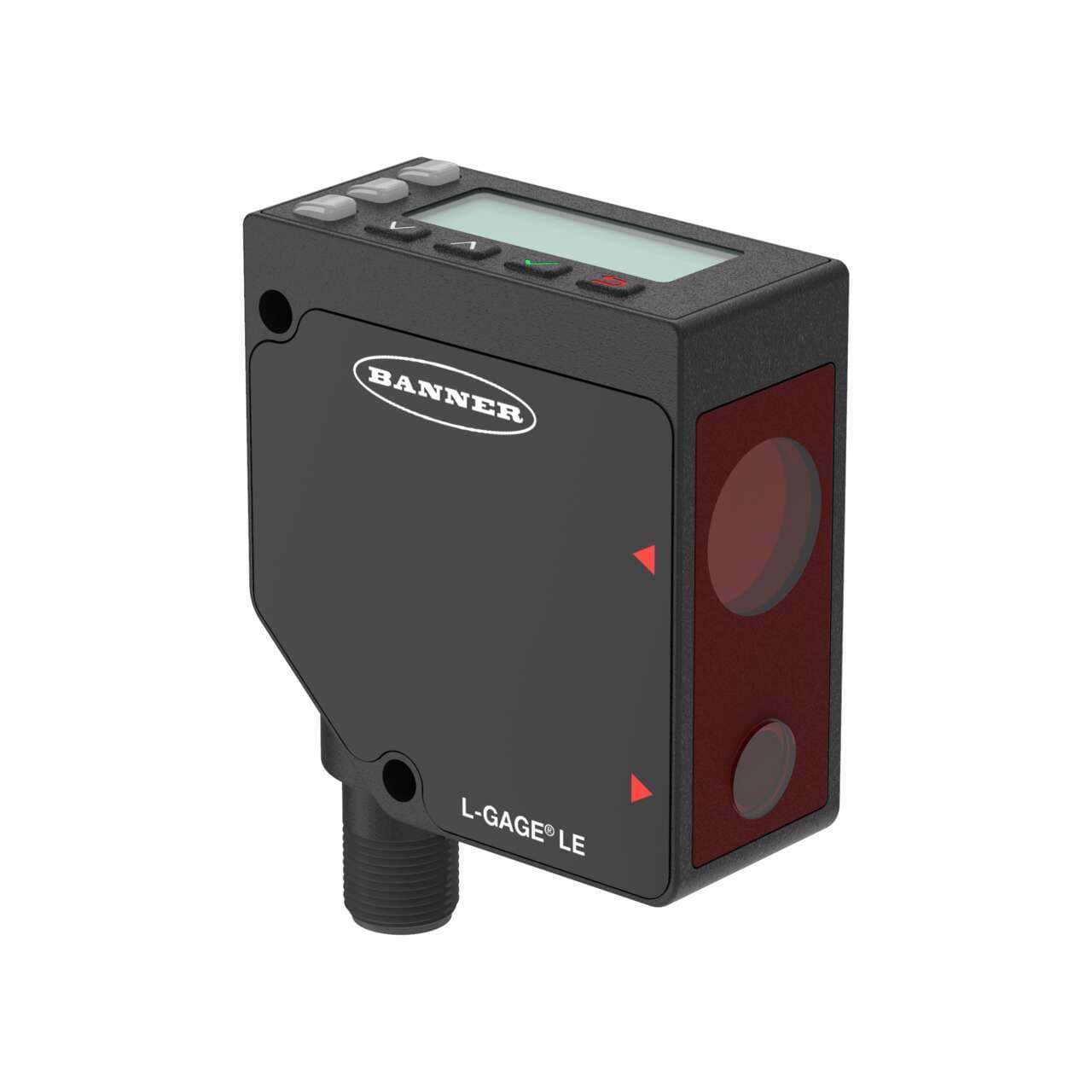

LE250KC1Q Banner Measurement Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  US
• Display
  LCD 2 lines x 8 characters
• Light Color
  Visible class 1 red Laser
• Communication protocol
  IO-Link
• Primary brand
  Banner Engineering
• Sub-range name
  LE
• Product series / family name
  L-GAGE series
• Functions
  Triangulation class 1 Laser displacement sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
• Shape
  Rectangular
• Main function
  Sensor (Displacement)
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Wavelength
  650 nm
• Sensing distance
  100...400mm
• Material
  Die-cast Zinc alloy housing Acrylic window
• Protection functions
  Overload Short-circuit
• Design
  triangulation system LCD display teach mode
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Degree of protection
  IP67 NEMA 6
• Compliant with standard(s)
  cULus CE
Digital outputs
1 x digital output (PNP/NPN transistor)
Ambient air temperature for operation
-20...+55 °C
Order code / Manufacturer SKU
97767
Power
DC
Input/Output
Discrete
Sensing Beam Wavelength (nm)
650
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Minimum Response Time (ms)
2
RS-422
No
Housing Style
Rectangular
Connection
Integral QD
Number of Pins
5
Min Operating Temperature (°C)
-20
Max Ambient Light (Lux)
5000
SSI
No
PC Configurable
No
Power Supply
12-30 V dc
Max Operating Temperature (°C)
55
Remote Teach and Laser Control Input Impedence
10 kΩ min.
Feature: Health/ Marginal Signal Output
Yes
Profibus
No
Sensing Mode (General)
Proximity
Minimum Sensing Distance (mm)
100
Output Protection
Protected against continuous overload and short circuit
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Temperature Effect (mm/°C)
+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Warm-up Time (minutes)
10
Max Off-state Leakage Current (µA)
PNP: <50 @ 30 V dc; Push/Pull: N/A
Max Measurement Range
>100 mm - <=500 mm
Indicator
LCD; LED(s)
Delay at Power-up (ms)
3000
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Storage Temperature (°C)
-30 to 65
Laser Control
Yes
Sensing Mode (Detailed)
Triangulation
Max Sensing Distance (mm)
400
Spot Size (@ Reference Distance)
0.9 mm x 1.2 mm @ 400 mm
Output Saturation Voltage PNP Outputs
<2 V
Feature: Remote Teach
Yes
RS-485
No
Sensing Beam
Visible Red Laser
Laser Classification
Class 1
Adjustments
Push Button; Remote Teach
NEMA Rating
NEMA 6
Minimum Window Size (mm)
1
Wireless
No
Device Type
Sensor
Analog Resolution/Discrete Repeatability
100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
Max Discrete (Switched) Output (mA)
100
Window Material
Acrylic
Power/Current Consumption (exclusive of load)
70 mA @ 24 V dc
PROFINET
No
Primary Housing Material
Zinc Alloy Die-Cast
Quick Disconnect Type
M12 (Euro)
IP Rating
IP67
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Chemical Resistant
No
1-wire Serial Interface
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-232
No
Common Ethernet Protocol
No
Alarm Output (mA)
100
Feature: Timing (Hold/Delay)
Yes
IO Link
Yes
