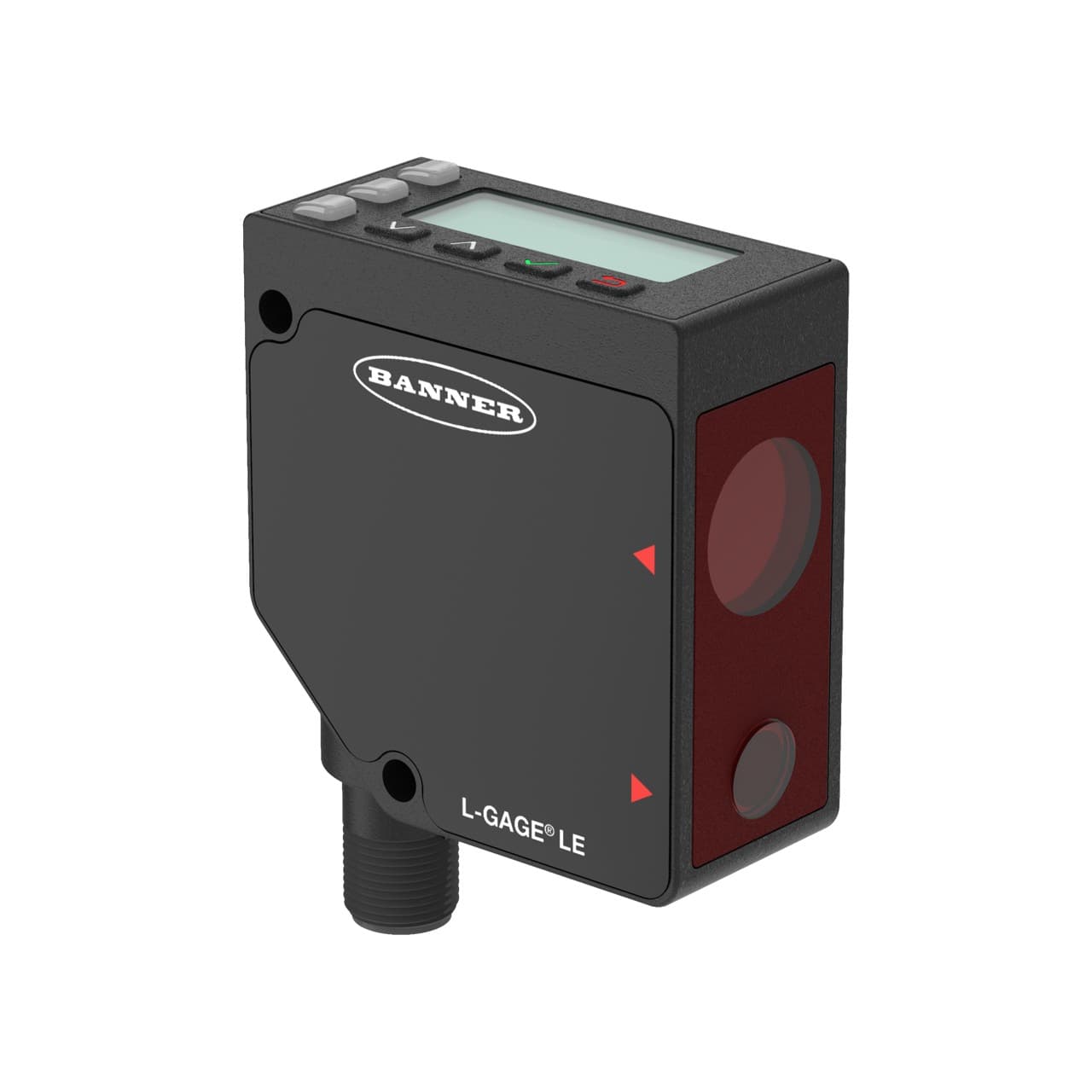

LE250DC1Q Banner Electronic Components

Product Details

• Primary brand
  Banner Engineering
• Main function
  Sensor (Displacement)
• Design
  triangulation system LCD display teach mode
• Wavelength
  650 nm
• Digital outputs
  2 x digital outputs (PNP/NPN transistors)
• Compliant with standard(s)
  cULus CE
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Sensing distance
  100...400mm
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Material
  Die-cast Zinc alloy housing Acrylic window
• Display
  LCD 2 lines x 8 characters
• Sub-range name
  LE
• Shape
  Rectangular
• Degree of protection
  IP67 NEMA 6
• Order code / Manufacturer SKU
  95393
• Product series / family name
  L-GAGE series
• Ambient air temperature for operation
  -20...+55 °C
• Functions
  Triangulation class 1 Laser displacement sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
• Light Color
  Visible class 1 red Laser
• Protection functions
  Overload Short-circuit
Max Measurement Range
>100 mm - <=500 mm
Laser Classification
Class 1
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
IP Rating
IP67
Minimum Window Size (mm)
1
Feature: Timing (Hold/Delay)
Yes
Profibus
No
Sensing Mode (General)
Proximity
Max Sensing Distance (mm)
400
Sensing Beam Wavelength (nm)
650
Output Protection
Protected against continuous overload and short circuit
Spot Size (@ Reference Distance)
0.9 mm x 1.2 mm @ 400 mm
1-wire Serial Interface
No
Feature: Chemical Resistant
No
Primary Housing Material
Zinc Alloy Die-Cast
Minimum Sensing Distance (mm)
100
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Min Operating Temperature (°C)
-20
Laser Control
Yes
IO Link
No
Storage Temperature (°C)
-30 to 65
Alarm Output (mA)
100
Common Ethernet Protocol
No
Device Type
Sensor
Connection
Integral QD
Temperature Effect (mm/°C)
+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Max Off-state Leakage Current (µA)
NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
RS-232
No
Sensing Beam
Visible Red Laser
Input/Output
Discrete
Number of Pins
5
NEMA Rating
NEMA 6
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Health/ Marginal Signal Output
Yes
Analog Resolution/Discrete Repeatability
100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
Sensing Mode (Detailed)
Triangulation
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Operating Temperature (°C)
55
Max Ambient Light (Lux)
5000
PROFINET
No
Quick Disconnect Type
M12 (Euro)
Adjustments
Push Button; Remote Teach
Power
DC
Max Discrete (Switched) Output (mA)
100
Warm-up Time (minutes)
10
Power/Current Consumption (exclusive of load)
70 mA @ 24 V dc
RS-485
No
Housing Style
Rectangular
Power Supply
12-30 V dc
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Window Material
Acrylic
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-422
No
PC Configurable
No
Indicator
LCD; LED(s)
Delay at Power-up (ms)
1000
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Minimum Response Time (ms)
2
Feature: Remote Teach
Yes
Wireless
No
SSI
No
