LEDBLA580XD6-XQ Banner Vision Accessories

Name: LEDBLA580XD6-XQ
Brand: Banner
Price: 1879 USD
Availability: BackOrder

LEDBLA580XD6-XQ on Powermatic Associates

Part#:LEDBLA580XD6-XQ

Alt. Part#:13531

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

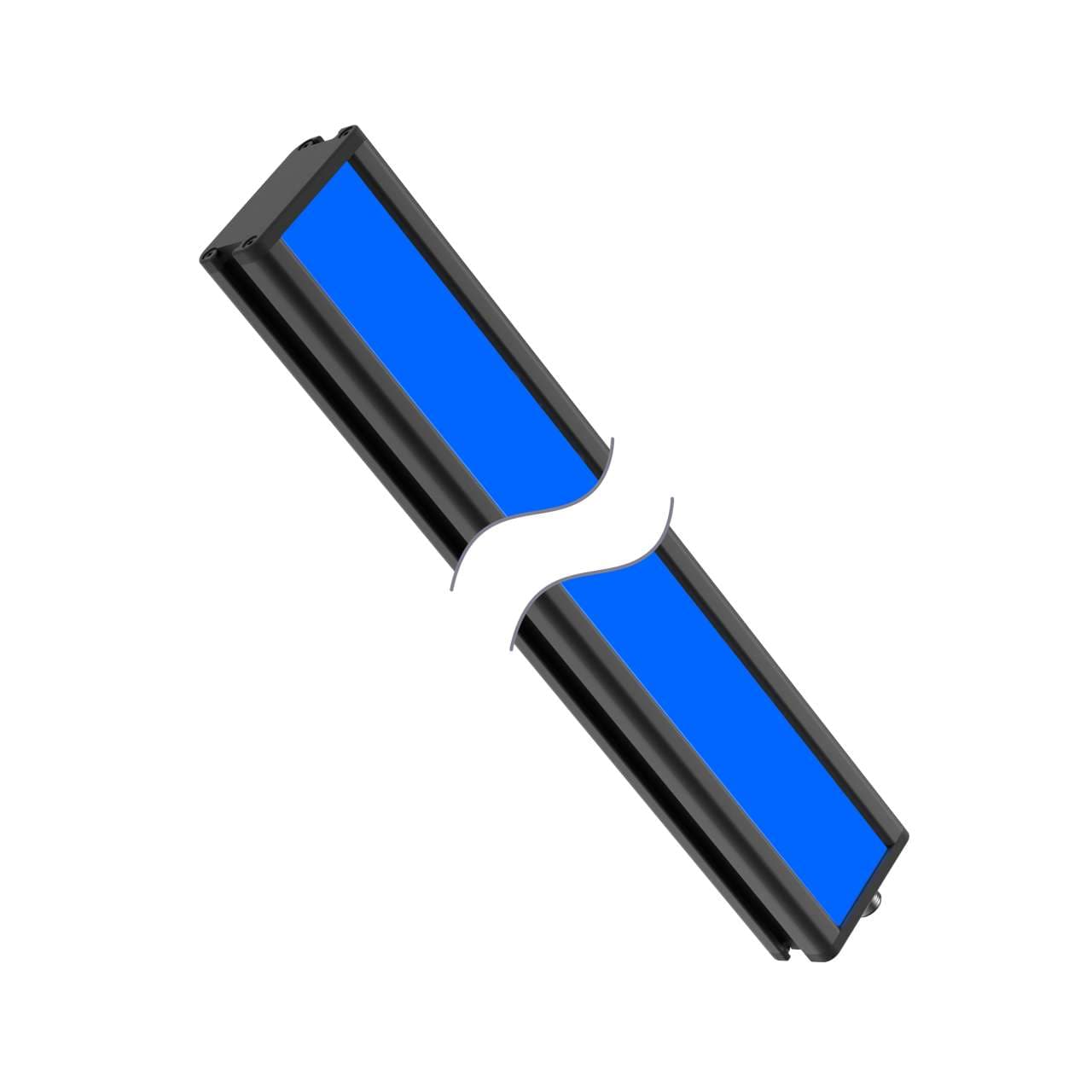

Vision Light - 580 mm Linear Array - IP50; 24 High Intensity Blue LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

Product Details

Weight
1338.0964 g
Country Of Origin
MX
Window Material
Diffuse Acrylic
Power
DC
Number of Input Pins/Conductors
5
Housing Style
Linear Strip
Physical Dimensions (LxWxH or DxH mm)
623.6 x 59.4 x 32.6
Color
Blue
Lens Focusing Angle (°)/Field of View
6.5
Max Current Color (mA)
2000
Primary Housing Material
Anodized Aluminum
Max Op. Temperature (°C)
50
QD Type/Cable Length
M12 (Euro) requires mating cordset
Color Technology
Standard LED
Connection Type
Integral QD
Device Type
Bar Light
Supply Voltage
24 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDBLA580XD6-XQ on Powermatic Associates is $1,879.00. Order now.

About the product

Banner Engineering LEDBLA580XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 580mm (22.8 inches or approximately 2 feet) array length. The unit emits visible blue light and has a rectangular shape. It is constructed with a black anodized aluminum housing and a diffused acrylic window. This product is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and has an IP50 degree of protection.

LEDBLA580XD6-XQ Related Documents

151466.pdf
